TOOLS REQUIRED
Hammer
Safety goggles
Measuring tape
Wall hardware
Installation
1
PREPARING FOR INSTALLATION
NOTE: Before installation, make sure all parts
are present. Compare parts with the Hardware
Included list. If any part is missing or damaged,
do not attempt to install the product.
□ Determine the desired mounting location,
and mark the wall where the unit will be
installed.
NOTE: For secure installation, the unit must
be mounted to at least one wall stud.
3
INSTALLING THE CABINET
□ For wall stud installation, insert #12 x 3 in. screws
with washers into the stud locations (not included).
□ For drywall installation, drill holes at the appropriate
locations and insert toggle bolts with washers
(not included).
□ For concrete wall installation, drill 1/4 in. holes at the
appropriate locations and insert #12 wall anchors,
followed by #12 x 3 in. screws (not included).
4
INSTALLING THE VANITY TOP
IMPORTANT: Do not use plumber's putty.
NOTE: The faucet, drain, and supply lines are not included. Install these
parts to the vanity top according to the manufacturer's instructions.
□ Apply silicone caulk/sealant (not included) to all four corners of the cabinet.
□ Place the vanity top onto the cabinet.
□ Position the top so that it has an equal amount of overhang on each side and
use a level to ensure the vanity top surface is level.
□ Apply silicone onto the seam between the edge of the vanity top and the wall,
smooth the bead, and allow to cure before use.
NOTE: Matching side and back splashes available, sold separately.
To purchase, visit your local Home Depot store or go to homedepot.com.
5
INSTALLING THE HARDWARE
□ Attach the knob (AA) to the cabinet with the provided screw (BB).

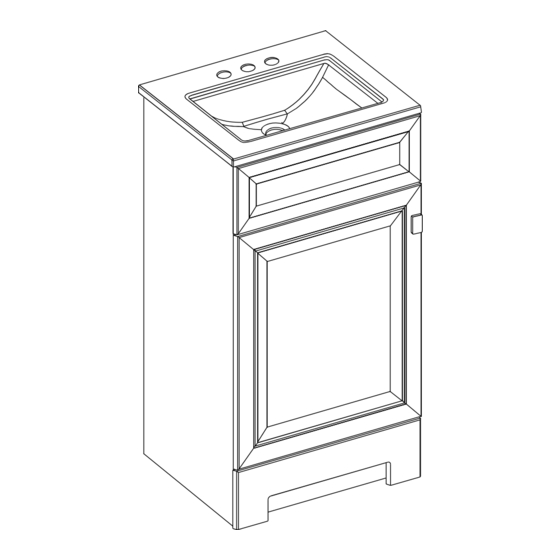

Use and Care Guide
Vanity Combo
Phillips screwdriver
Power drill
Caulk/sealant
HARDWARE INCLUDED
AA - Knob x 1
Level
2
POSITIONING THE CABINET
□ Move the cabinet into place, and use wood
shims to level the cabinet against the wall.
Item # 1003 431 364
Model #PPLNKDCG18
BB - Screw x 1
BB
AA
HOMEDEPOT.COM
Please contact 1-888-774-8062 for further assistance.
