Home Decorators Collection HAWKINGS POINT 89499 Use And Care Manual

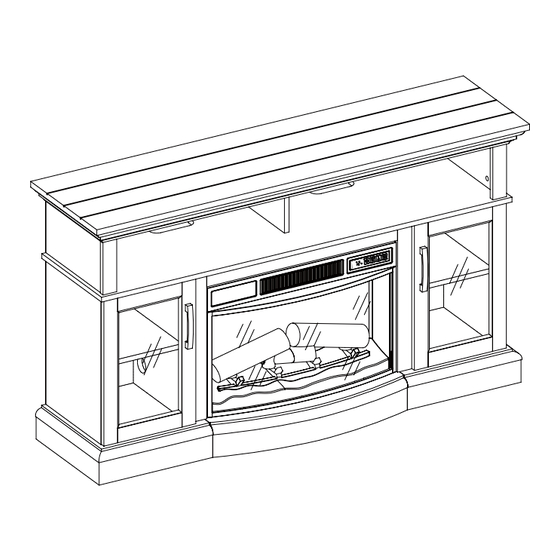

Rustic pine media unit
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
XXX XXX/89499/25MM40080-PI07
XXX XXX/89505/25MM40080-PB01
USE AND CARE GUIDE
HAWKINGS POINT RUSTIC PINE MEDIA UNIT
Questions, problems, missing parts? before returning to the store,
call home Decorators collection customer service
8 a.m. - 7 p.m., est, monDay - friDay, 9 a.m. - 6 p.m., est, saturDay
1-800-986-3460
HomeDepot.Com/HomeDeCorators
THANK YOU
We appreciate the trust and confidence you have placed in Home Decorators through the purchase of this electric fireplace. We strive to
continually create quality products designed to enhance your home. Visit us online to see our full line of products available for your home
imporvement needs. Thank you for choosing Home Decorators!

Advertisement

Table of Contents
loading

Related Manuals for Home Decorators Collection HAWKINGS POINT 89499

Summary of Contents for Home Decorators Collection HAWKINGS POINT 89499

  • Page 1 USE AND CARE GUIDE HAWKINGS POINT RUSTIC PINE MEDIA UNIT Questions, problems, missing parts? before returning to the store, call home Decorators collection customer service 8 a.m. - 7 p.m., est, monDay - friDay, 9 a.m. - 6 p.m., est, saturDay 1-800-986-3460 HomeDepot.Com/HomeDeCorators...

  • Page 2: Table Of Contents

    Table of Contents Maximum Load Warning ........... 2 package contents .............. 7 Safety Information ............. 3 Assembly ..............8 Warranty ..............5 Operation ..............19 Pre-Assembly ............. 6 FCC/IC Information ............21 hardware included ........... 6 Care & Cleaning ............21 product specifications ............

  • Page 3: Safety Information

    Safety Information please read and understand this entire manual before attempting to assemble, operate or install the product. if you have any question regarding the product, please call customer service at service at 1-800-986-3460, 8 a.m.-7 p.m., est, WARNING: under no circumstances should this fireplace be monday-friday, 9 a.m.
  • Page 4 Safety Information (continued) NOTE: use care in assembling your new fireplace. take your time and use the hardware provided and a quality phillips head screwdriver. never overtighten bolts. • Do not sit on any part of the mantel. NOTE: to avoid injury from unexpected starting or electrical shock, do not plug the power cord into a source of power during unpacking and assembly.

  • Page 5: Warranty

    Warranty Warranty 1 year limited Warranty: the manufacturer warrants that your new electric fireplace is free from manufacturing and material defects for a period of one year from date of puchase, subject to the following conditions and limitations. install and operate this appliance in accordance with the installation and operating instructions furnished with the product at all times.

  • Page 6: Pre-Assembly

    Pre-Assembly harDWare incluDeD Part Description Part Number Quantity machine screw camlock bolt ph-KDbZnc002 floor glide (pre-attached) ph-glDbrW001 handle (with screw) shelf pin ph-spnpcsplb2 euro hinge ph-hng2h26ar95 long screw ph-scrblK006 metal plate (pre-attached) ph-plblK001 Door bumper ph-bmpclr001 screw Wood Dowel ph-DWlntl001 camlock ph-KDcZnc001 hinge bracket...

  • Page 7: Package Contents

    Pre-Assembly (continued) pacKage contents NOTE: all panels are labeled left and right as viewed from the front of unit. Part Description Quantity left base panel right base panel back base panel front base panel Decorative left front panel Decorative right front panel top assembly left center panel right center panel...

  • Page 8: Assembly

    Assembly preparing the base panel assembling the base put the back base panel (c) on a flat surface. put the left base panel (a), right base panel (b), back inserts the bolts (oo) through the 2 hole plastic base panel (c) and front base panel (D) on a flat connector block (nn).
  • Page 9 Assembly (continued) attaching the decorative front panels insert the Wood Dowels (KK) into the pre-drilled holes in the left center panel (h). push the Decorative left front panel (e) and the left center panel (h) together. insert the camlocks (ll) into the pre-drilled holes, and turn clockwise to secure.
  • Page 10 Assembly (continued) attaching the panels securing the base insert the Wood Dowels (KK) into the pre-drilled holes to secure the panels to the base, insert the long screws in the left side panel (J), left center panel (h), upper (gg) through the pre-drilled holes in the left base panel front panel (l), right center panel (i) and right side (a) and the right base panel (b).
  • Page 11 Assembly (continued) preparing the center shelf preparing the center shelf put the center shelf (m) upside down on a flat surface. insert the Wood Dowels (KK) into the pre-drilled holes using the phillips screwdriver, insert the camlock bolts located on the top of the panels (h,i,J,K,l). (bb) into the pre-drilled holes.
  • Page 12 Assembly (continued) attaching the divider preparing the center shelf insert Wood Dowels (KK) into the pre-drilled holes in the insert the camlock bolts (bb) into the pre-drilled holes, Divider (n). using the phillips screwdriver, into the center shelf (m). push the Divider (n) down onto the center shelf (m). insert the Wood Dowels (KK) into the pre-drilled holes in secure the Divider (n) to the center shelf (m) with the the center shelf (m).
  • Page 13 Assembly (continued) preparing the top assembly preparing the top assembly put the top assembly (g) down on a flat surface. insert the Wood Dowels (KK) into the pre-drilled holes in insert the camlock bolts (bb) into the pre-drilled holes. the Divider (n) and the Decorative side panels (o). attaching the top assembly place the top assembly (g) on top of the Decorative side panels (o) and the Divider (n).
  • Page 14 Assembly (continued) installing the back panels insert the screws (JJ) through the pre-drilled holes in the upper back panel (p) and the side back panel (Q). preparing the doors put the right Door (s) on a flat surface. insert the machine screws (aa) through the euro hinges (ff) to connect to the right Door (s).
  • Page 15 Assembly (continued) attaching the handles attaching the doors insert the screws through the pre-drilled holes in the locate the right Door (s) and align the euro hinge (ff) right Door (s), to attach the handle (DD). with the hinge bracket (mm). repeat for the left Door (r).
  • Page 16 Assembly (continued) installing the fireplace insert into preparing the securing block the mantel assembly lift the fireplace insert (W) carefully into the back of the put the small securing block (u) on a flat surface. unit and center in the fireplace insert opening. insert the small screws (oo) through the angle bracket Do not drag the fireplace insert across the base (ss) to the securing block (u).
  • Page 17 Assembly (continued) preparing the insert securing block attaching the insert securing block insert the small screws (oo) through the 2 hole plastic slide the insert securing block (v) in the space between connector blocks (nn) to the pre-drilled holes in the left the 2 hole plastic connector blocks (nn) and the small center panel (h) and the right center panel (i).
  • Page 18 Assembly (continued) installing the tipping restraint hardware When the tipping restraint hardware (pp) is properly installed, it can provide protection against unexpected tipping of the unit due to small tremors, bumps or climbing. your unit comes with two tipping restraint hardware Wall (pp).

  • Page 19: Operation

    Operation Operation NOTE: the control panel can be accessed at the upper-right corner of the insert. powering the fireplace adjusting the flame push the power button to supply power to all there are 6 brightness levels that can be selected: functions of the fireplace and put the insert in a standby mode.
  • Page 20 Operation (continued) replacing the remote control battery Disposing of used batteries the battery may contain hazardous substances that When the remote control stops operating or its range could endanger the enviroment and human health. seems reduced, it is time to replace the battery with new ones.

  • Page 21: Fcc/Ic Information

    FCC/IC Information WARNING: changes or modifications to this unit not expressly approved by the party responsible for compliance could void user’s authority to operate the equipment. NOTE: this equipment has been tested and found to comply with the limits for class b digital device, pursuant to part 15 of the fcc rules.

  • Page 22: Troubleshooting

    Troubleshooting PROBLEM ROOT CAUSE CORRECTIVE ACTION unplug the fireplace, remove the back panel of the fireplace and check that the thermo- the thermostat sensor is stat is plugged into the main circuit board. Display shows " " broken or disconnected. if this does not solve the problem contact customer service for a replacement thermo- stat sensor.
  • Page 23 Troubleshooting (continued) PROBLEM ROOT CAUSE CORRECTIVE ACTION flame effect works but heater With the power on press and hold the poWer function does not and the emberbed button on the control panel for 10 seconds. the heater is disabled. flashes when the heater button is once re-enabled the emberbed lights will pressed.

  • Page 24: Replacement Parts

    Replacement Parts for replacement parts, call our customer service department at 1-800-986-3460, 8 a.m.-7 p.m., est, monday-friday, 9 a.m. - 6 p.m., est, saturday. Part Description Qty. flame generator Drive motor thermostat sensor main circuit board thermostat heater/blower assembly control panel circuit board control panel buttons emberbed with log emberbed circuit board...
  • Page 25 Questions, problems, missing parts? before returning to the store call home Decorators customer service 8 a.m. - 7 p.m., est, monday - friday, 9 a.m. - 6 p.m., est, saturday 1-800-986-3460 HomeDepot.Com/HomeDeCorators retain this manual for future use.
