1.4

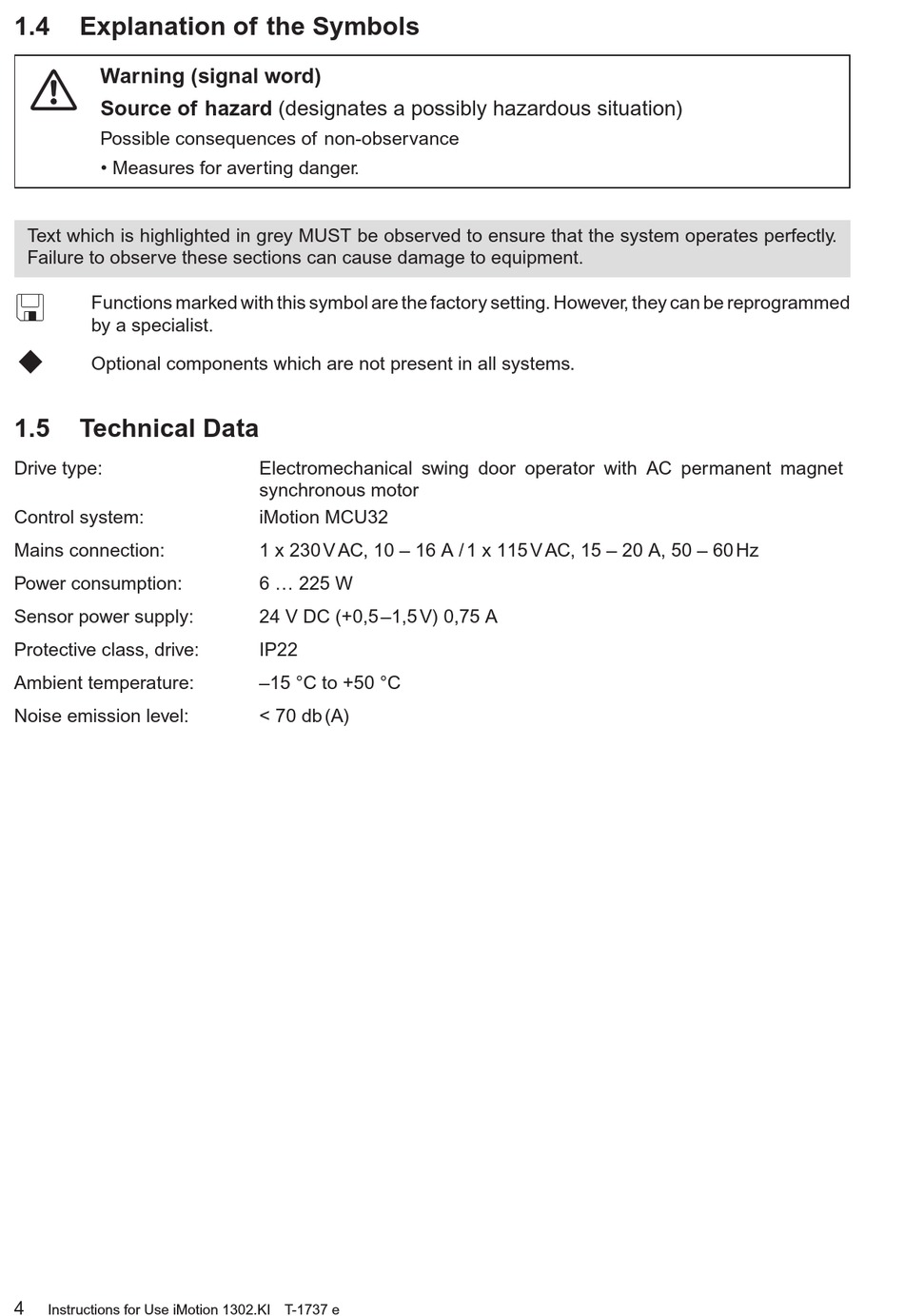

Explanation of the Symbols

Warning (signal word)
Source of hazard (designates a possibly hazardous situation)
Possible consequences of non-observance
• Measures for averting danger.
Text which is highlighted in grey MUST be observed to ensure that the system operates perfectly.
Failure to observe these sections can cause damage to equipment.
<
Functions marked with this symbol are the factory setting. However, they can be reprogrammed
by a specialist.

Optional components which are not present in all systems.
1.5

Technical Data

Drive type:
Control system:
Mains connection:
Power consumption:
Sensor power supply:
Protective class, drive:
Ambient temperature:
Noise emission level:
4
Instructions for Use iMotion 1302.KI T-1737 e
Electromechanical swing door operator with AC permanent magnet
synchronous motor
iMotion MCU32
1 x 230 V AC, 10 – 16 A / 1 x 115 V AC, 15 – 20 A, 50 – 60 Hz
6 ... 225 W
24 V DC (+0,5 –1,5 V) 0,75 A
IP22
–15 °C to +50 °C
< 70 db (A)
