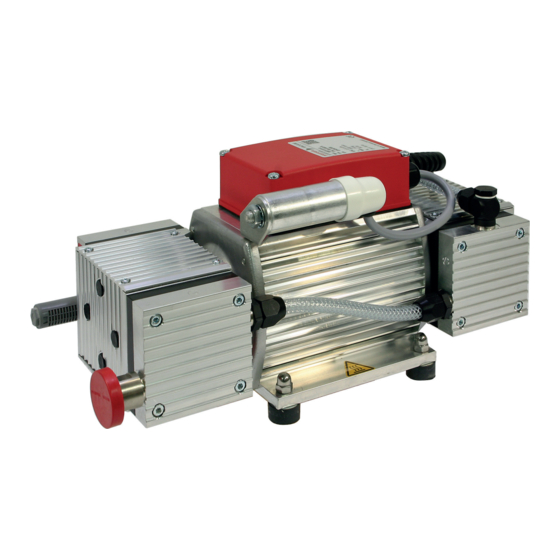

Pfeiffer Vacuum MVP 015–4 Operating Instructions Manual

Diaphragm pump
Hide thumbs Also See for MVP 015–4:
Table of Contents

Advertisement

Quick Links

Download this manual
OPERATING INSTRUCTIONS
EN
Translation of the Original
MVP 015–4
Diaphragm Pump

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MVP 015–4 and is the answer not in the manual?

Questions and answers

Related Manuals for Pfeiffer Vacuum MVP 015–4

Summary of Contents for Pfeiffer Vacuum MVP 015–4

  • Page 1 OPERATING INSTRUCTIONS Translation of the Original MVP 015–4 Diaphragm Pump...
  • Page 2 Dear Customer, Thank you for choosing a Pfeiffer Vacuum product. Your new diaphragm pump is designed to support you with its performance, perfect operation and without impacting your individual application. The name Pfeiffer Vacuum stands for high-quality vacuum technology, a comprehensive and complete range of top-quality products and first-class service.

  • Page 3: Table Of Contents

    Limits of use of the product Proper use Foreseeable improper use Personnel qualification 2.7.1 Ensuring personnel qualification 2.7.2 Personnel qualification for maintenance and repair 2.7.3 Advanced training with Pfeiffer Vacuum Product description Function 3.1.1 Drive 3.1.2 Pumping system 3.1.3 Cooling...
  • Page 4 Table of contents Malfunctions Recycling and disposal 10.1 General disposal information 10.2 Dispose of diaphragm pumps Service solutions by Pfeiffer Vacuum Spare parts packages Accessories 13.1 Accessory information 13.2 Ordering accessories Technical data and dimensions 14.1 General 14.2 Technical data 14.3 Substances in contact with the media...
  • Page 5 List of tables List of tables Tbl. 1: Stickers on the product Tbl. 2: Abbreviations used in this document Tbl. 3: Permissible ambient conditions Tbl. 4: Connection description of the diaphragm pump Tbl. 5: Typical service life with normal use Tbl.
  • Page 6 List of figures List of figures Fig. 1: Position of the stickers on the product Fig. 2: Diaphragm pump design Fig. 3: Diaphragm head and valves Fig. 4: Spare parts Fig. 5: MVP 015-4, 120 V 60 Hz Fig. 6: MVP 015-4, 230 V 50 Hz 6/38...

  • Page 7: About This Manual

    Keep the manual for future consultation. 1.1 Validity This operating instructions is a customer document of Pfeiffer Vacuum. The operating instructions de- scribe the functions of the named product and provide the most important information for the safe use of the device. The description is written in accordance with the valid directives. The information in this op- erating instructions refers to the product's current development status.

  • Page 8: Stickers On The Product

    About this manual Note 1.3.3 Stickers on the product This section describes all the stickers on the product along with their meaning. Rating plate of the variant with Europlug Rating plate of the diaphragm pump D-35614 Asslar Mod. MVP 015-4 PK T05 065 xxxxxxxxx S (N ) 0.5 m /h...

  • Page 9: Abbreviations

    About this manual 1.3.4 Abbreviations Abbreviation Meaning in this document Alternating current Nominal diameter (from the French: diamètre nominal) EPDM Ethylenepropylene diene-monomer rubber Diaphragm vacuum pump NEMA National Electrical Manufacturers Association Mean sea level Polyamide Polyethylene Earthed conductor (protective earth) Polyvinyl chloride (PVC) width across flats Tbl.

  • Page 10: Safety

    Safety 2 Safety 2.1 General safety information The following 4 risk levels and 1 information level are taken into account in this document. DANGER Immediately pending danger Indicates an immediately pending danger that will result in death or serious injury if not observed. ►...
  • Page 11 Safety Risks during installation DANGER Danger to life from electric shock Inadequate or incorrect grounding of the unit leads to contact-sensitive voltage on the housing. When making contact, increased leakage currents will cause a life-threatening electric shock. ► Before the installation, check that the connection leads are voltage-free. ►...

  • Page 12: Safety Precautions

    Safety WARNING Health hazard through poisoning from toxic contaminated components or devices Toxic process media result in contamination of devices or parts of them. During maintenance work, there is a risk to health from contact with these poisonous substances. Illegal disposal of toxic sub- stances causes environmental damage.

  • Page 13: Limits Of Use Of The Product

    ► Use the vacuum pump for vacuum generation only. ► Adhere to the installation, commissioning, operating, and maintenance instructions. ► Do not use any accessory parts other than those recommended by Pfeiffer Vacuum. 2.6 Foreseeable improper use Improper use of the product invalidates all warranty and liability claims. Any use that is counter to the purpose of the product, whether intentional or unintentional, is regarded as improper use;...

  • Page 14: Personnel Qualification

    ─ Customer with Pfeiffer Vacuum service training ─ Pfeiffer Vacuum service technician 2.7.3 Advanced training with Pfeiffer Vacuum For optimal and trouble-free use of this product, Pfeiffer Vacuum offers a comprehensive range of courses and technical trainings. For more information, please contact Pfeiffer Vacuum technical training.

  • Page 15: Product Description

    Product description 3 Product description 3.1 Function Diaphragm pumps are dry compressing positive displacement pumps. The movement of diaphragms generates a periodic change of the suction chamber volume. The gas flow causes the valves to open and close automatically. The pump unit is directly connected to the drive motor. Fig.

  • Page 16: Connections

    Connection description of the diaphragm pump 3.3 Identifying the product ► To ensure clear identification of the product when communicating with Pfeiffer Vacuum, always keep all of the information on the rating plate to hand. ► Learn about certifications through test seals on the product or at www.tuev-sued.de.

  • Page 17: Transportation And Storage

    Transportation and Storage 4 Transportation and Storage 4.1 Transporting the vacuum pump WARNING Danger of serious injury due to falling objects Due to falling objects there is a risk of injuries to limbs through to broken bones. ► Take particular care and pay special attention when transporting products manually. ►...

  • Page 18: Installation

    NOTICE Property damage from contaminated gases Pumping gases that contain contamination damages the vacuum pump. ► Use suitable filters or separators from the Pfeiffer Vacuum range of accessories, to protect the vacuum pump. Installation and operation of accessories Pfeiffer Vacuum offers a series of special, compatible accessories for its diaphragm pumps.

  • Page 19: Establishing Mains Connection

    ► Observe the permissible pressures and pressure differentials for the product. ► Check the function of the exhaust line on a regular basis. Condensate separator Pfeiffer Vacuum recommends installing a condensate separator, with condensate drain at the lowest point of the exhaust line. Procedure 1.

  • Page 20: Operation

    Operation 6 Operation 6.1 Putting the vacuum pump into operation WARNING Danger of poisoning due to toxic process media escaping from the exhaust pipe During operation with no exhaust line, the vacuum pump allows exhaust gases and vapors to escape freely into the air. There is a risk of injury and fatality due to poisoning in processes with toxic process media.

  • Page 21: Switching Off The Vacuum Pump

    Operation Switching on the vacuum pump 1. Switch the voltage supply on. 2. If required, switch the vacuum pump on in each pressure range. 3. Allow the vacuum pump to warm up prior to process start, with the vacuum connection closed. The vacuum pump achieves the specified throughput and final pressure values once the operating tem- perature has been reached.

  • Page 22: Maintenance

    ► Do not use any alcohol or other cleaning agents to clean the diaphragms and valves. NOTICE Danger of property damage from improper maintenance Unprofessional work on the vacuum pump will lead to damage for which Pfeiffer Vacuum accepts no liability. ► We recommend taking advantage of our service training offering.

  • Page 23: Checklist For Inspection And Maintenance

    We recommend that Pfeiffer Vacuum Service carry out maintenance work at level 2. If the specified intervals are exceeded, or if maintenance work is carried out improperly, no war- ranty or liability claims are accepted on the part of Pfeiffer Vacuum. This also applies wher- ever parts other than original spare parts are used.

  • Page 24: Change The Diaphragms And Valves

    Maintenance 7.3 Change the diaphragms and valves NOTICE Property damage from incorrect installation Change in dead volume due to incorrect installation of the original spacer disks impairs the final vac- uum or leads to bearing damage. ► During disassembly, keep the existing spacer disks separate per installation location. ►...

  • Page 25: Mount The Diaphragm Head And Valves

    Maintenance Required spare parts ● Overhaul kit Required consumables ● Clean, dry cloth ● Isopropanol Procedure 1. Clean diaphragms and valves with a clean, dry cloth. – Do not use isopropanol or other cleaning agents to clean diaphragms and valves. 2.

  • Page 26: Decommissioning

    Decommissioning 8 Decommissioning Before shutting down the vacuum pump, observe the following instructions to adequately protect the in- terior of the vacuum pump (suction chamber) from corrosion: Procedure for temporary vacuum pump shutdowns 1. Allow the vacuum pump to run on for 5 to 10 minutes with the vacuum connection open to allow any condensate that may be present to be removed from the vacuum pump.

  • Page 27: Malfunctions

    ► Wear personal protective equipment if necessary. NOTICE Danger of property damage from improper maintenance Unprofessional work on the vacuum pump will lead to damage for which Pfeiffer Vacuum accepts no liability. ► We recommend taking advantage of our service training offering.

  • Page 28: Tbl. 7: Troubleshooting On Diaphragm Pumps

    ● If necessary, check or replace the silencer. ● Valves dirty or defec- ● If necessary, clean or replace the tive valves and diaphragms. ● Connection rod or mo- ● Contact Pfeiffer Vacuum Service. tor bearing defective Tbl. 7: Troubleshooting on diaphragm pumps 28/38...

  • Page 29: Recycling And Disposal

    – Fluoroelastomers (FKM) – Potentially contaminated components that come into contact with media 10.2 Dispose of diaphragm pumps Pfeiffer Vacuum diaphragm pumps contain materials that you must recycle. 1. Disconnect the electronic drive unit. 2. Dismantle the motor. 3. Decontaminate the components that come into contact with process gases.

  • Page 30: Service Solutions By Pfeiffer Vacuum

    We are always focused on perfecting our core competence – servicing of vacuum components. Once you have purchased a product from Pfeiffer Vacuum, our service is far from over. This is often exactly where service begins. Obviously, in proven Pfeiffer Vacuum quality.
  • Page 31 Service solutions by Pfeiffer Vacuum 5. Prepare the product for transport in accordance with the provisions in the contamination declaration. a) Neutralize the product with nitrogen or dry air. b) Seal all openings with blind flanges, so that they are airtight.

  • Page 32: Spare Parts Packages

    Spare parts packages 12 Spare parts packages Ordering spare part packages ► Have the vacuum pump part number to hand, along with other details from the rating plate if nec- essary. ► Install original spare parts only. ► When ordering the inspection set, observe the respective part number of the diaphragm pump. Fig.

  • Page 33: Accessories

    Accessories 13 Accessories 13.1 Accessory information Relay boxes Relay boxes are used to control backing pumps in conjunction with the electronic drive unit TC of the turbopump. Mains Cable Mains cables provide a secure and suitable connection. 13.2 Ordering accessories Selection field Part number Relay box, shielded, for backing pumps, 1-phase 7A for TC 110/120 and TCP 350, PM 071 282 -X plug M8...

  • Page 34: Technical Data And Dimensions

    Technical data and dimensions 14 Technical data and dimensions 14.1 General Basis for the technical data of Pfeiffer Vacuum diaphragm pumps: ● Specifications according to PNEUROP committee PN5 ● ISO 21360:2012: “Vacuum technology - Standard methods for measuring vacuum-pump perform- ance - General description”...

  • Page 35: Substances In Contact With The Media

    Technical data and dimensions Type designation MVP 015-4 MVP 015-4 Protection degree IP54 IP54 Input voltage 50 Hz – 230 V Input voltage 60 Hz 120 V – Input voltage: tolerance -10/+5 % -10/+5 % Mains cable included Switch included Rated current consumption 0.8 A 0.3 A...

  • Page 36: Dimensions

    Technical data and dimensions 14.4 Dimensions 4× 331.5 Fig. 5: MVP 015-4, 120 V 60 Hz Dimensions in mm 4× 331.5 Fig. 6: MVP 015-4, 230 V 50 Hz Dimensions in mm 36/38...

  • Page 37: Declaration Of Conformity

    DIN EN 61010-1:2011 DIN EN IEC 63000:2019 DIN EN 61326-1:2013 The authorized representative for the compilation of technical documents is Mr. Wolf- gang Bremer, Pfeiffer Vacuum GmbH, Berliner Straße 43, 35614 Asslar, Germany. Signature: Pfeiffer Vacuum GmbH Berliner Straße 43...
