PN# 36475 FORWORD Thank you for your purchase of a NAUTICAM product. At NAUTICAM, we pride ourselves in the ability to recognize the requirements of professional as well as amateur underwater photographers and fulfill them through the innovative designs of our products.
Page 2
NAUTICAM does not hold responsibility for damage, of any nature, to any equipment used with and/or placed within our products. NAUTICAM accepts no liability for any loss of captured images or the inability to capture images even if it is due to the malfunctioning of our products.
Page 3

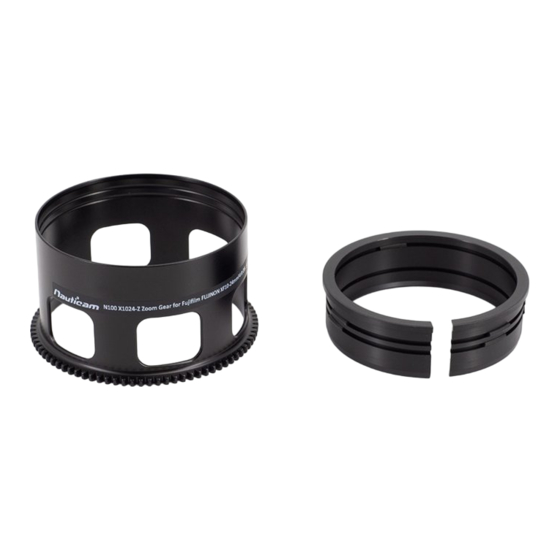

IDENTIFICATION OF PARTS Plastic C-ring X1024-Z Zoom Gear Spare Rubber grips...
Page 4
MOUNT THE GEAR ON A LENS 1. Insert the plastic C-ring as shown and place it over the lens. 2 Insert the X1024-Z Zoom Gear on the plastic C-ring until it reaches the flange of the plastic C-ring. 3. To remove the X1024-Z Zoom Gear, reverse the above steps.
Page 5
CONTROL THE GEAR 1. The X1024-Z Zoom Gear can be controlled by zoom/focus knob of the housing. After mount the camera and lens (with gear installed) on the housing, confirm that the zoom/focus knob operates correctly.
Page 6
SPECIFICATIONS #36475 N100 X1024-Z Zoom Gear for Fujifilm FUJINON XF10-24mmF4 R OIS Dimensions: DIA87.0mm × 47.5mm Type: Zoom gear Fujifilm FUJINON XF10- Compatible lens: 24mmF4 R OIS Remark: Nauticam supports only e-manuals. Please download corresponding product manuals on google drive https://bit.ly/Nauticammanual, or contact us for e-...
