11. Then press the FORWARD and BACK buttons on the Printer Utility screen (use steps 3 through
5 to navigate to that screen) to move the Platen Roller back and forth while cleaning the roller.
12. If the printer cleaning card failed to clean the Card Feed Roller completely, remove the cards
from the hopper and locate the Card Feed Roller. Use a cleaning pad from the Printer Cleaning
Kit to wipe the roller clean.
13. Then press the FORWARD and BACK buttons on the Printer Utility screen (use steps 3 through
5 to navigate to that screen) to move the Card Feed Roller back and forth while cleaning the
roller.
14. When the Rollers are clean and completely dry, replace the ribbon and close the print head
assembly and top cover.
Rev. 1.01

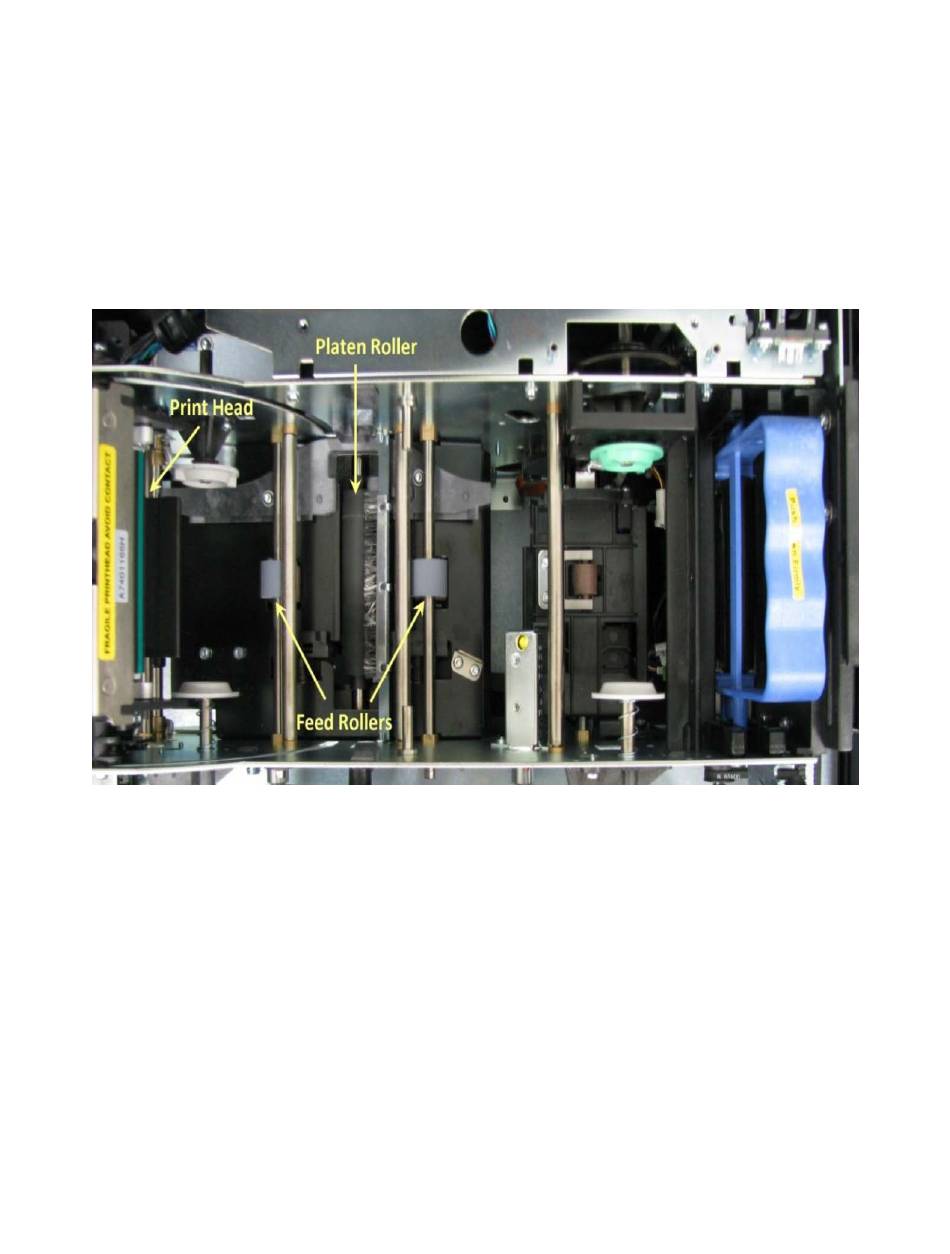

Figure 11
