Magtek EXPRESSCARD 1000 Maintenance Manual page 10

XY Transport Hardware:
XY Carriage Bushings

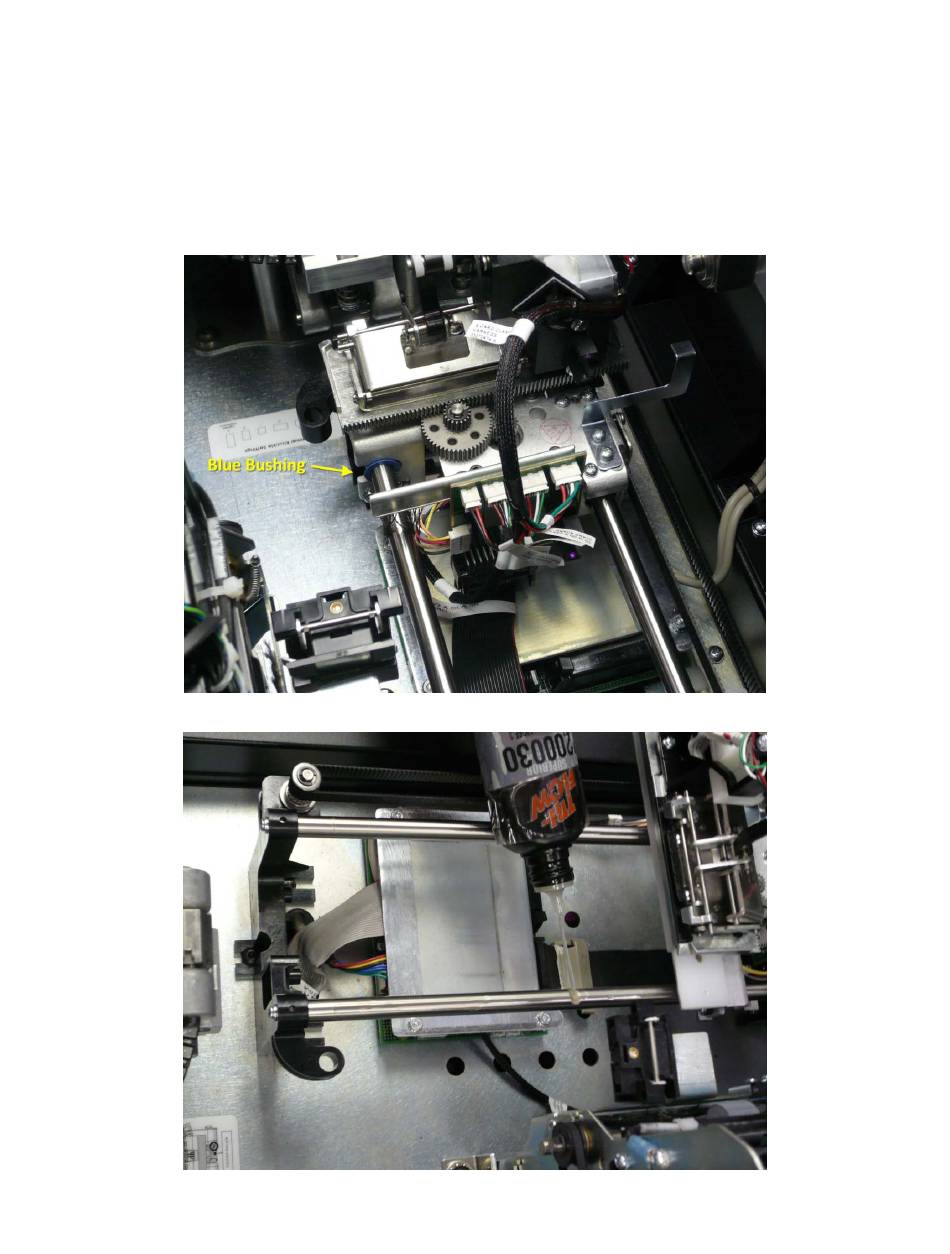

Inspect the blue plastic bushing on the inner rail of the XY assembly (see figure 12) after cleaning the
transport rod and check for damage or unusual wear. If the bushing is in excptable condition apply a
small amount of Tri-Flow lubricant the the rail (see figure 13) and manually move the carriage back and
forth.
Rev. 1.01
Figure 12
Figure 13
10 P/N: 99875478
