- Page 1 OPERATING MANUAL PcPlug-R LASER POWER & ENERGY METER (rev03 – 16-07-2019) LaserPoint srl - Via Burona, 51 - 20090 Vimodrone (Milano) - Italy Phone +39 02 27 400 236 - Fax +39 02 25 029 161-www.laserpoint.eu...
-
Page 2: Table Of Contents
9.1- Get Started: ................................6 9.2- Using the PcPlug-R Sensors and the GALILEO Software to Measure Laser Power: ..........7 9.3- Using the PcPlug-R Sensors and the GALILEO Software to Measure Single Shot Energy: ........7 INSTRUMENT SPECIFICATIONS ..................... 8 10- TROUBLESHOOTING ........................ -
Page 3: 1- Introduction

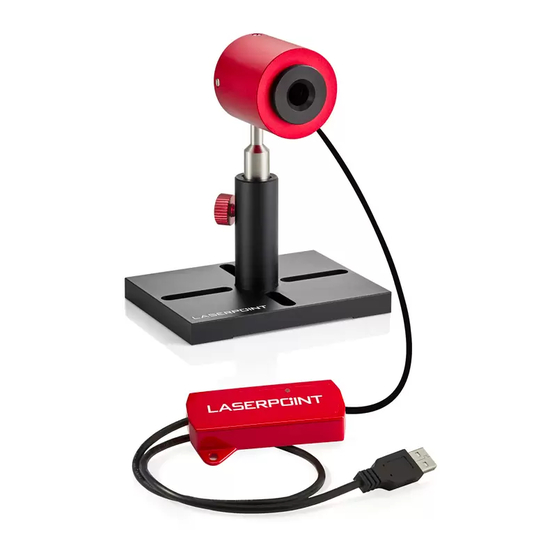

INTRODUCTION The PcPlug-R series includes a series of RS-232 instruments for the measurement of laser Power and Energy that combine both the sensor and the readout electronics in a single plug-and-play product. In this line the traditional standalone meter has been reduced in size and is now embedded in a case of only 78 x 26.4x15 mm. -
Page 4: 4- Safety Notes
● Eyewear and other personal protective equipment must be used in compliance with applicable laws and safety regulations 1- The user of this instrument must be trained in the use of lasers and their associated risks. LaserPoint is in no way liable for any damage resulting from misuse, carelessness, or use beyond the rated limits for the provided products. -
Page 5: 5- Working Principle Of Pcplug-R Sensors
USB stick. The PcPlug-R series has been specifically developed for all those applications that do not require a display on board and where measurement can be displayed or acquired with a computer. -
Page 6: Drawing And Dimensions
6.2-Serial Communication and Outputs: The PcPlug-R Electronics can be easily controlled by a PC or by an acquisition system. A complete description of the settings and the communication commands can be found in the “PcPlug-R - RS-232 Communication Interface” document. -
Page 7: 7- Installation
4- Verify the set wavelength: Select the laser wavelength. 5- Zero the instrument: Resetting the zero value is a recommended action every time a PcPlug-R Sensor is used. refer to the “PcPlug-R - RS-232 Communication Interface” document. For detailed instructions please 6-Start the measurement session: Place the detector head in front to the laser source. -
Page 8: Using The Pcplug-R Sensors And The Galileo Software To Measure Laser Power
3- set the Laser to the appropriate setting; when the green dot at the top left of the screen warns that the instrument is ready for the measurement, fire the laser. LaserPoint srl – PcPlug-R Laser Power and Energy Meter - All Rights Reserved... -
Page 9: Instrument Specifications
Max 15 V. DC in current < 60 mA Operating Temperature Range +5° to +40°C Storage Temperature Range -20° to 70°C Max relative humidity International Regulations and RoHS Compliant LaserPoint srl – PcPlug-R Laser Power and Energy Meter - All Rights Reserved... -
Page 10: 10- Troubleshooting
TROUBLESHOOTING The PcPlug-R Electronics is a delicate and must be protected from dust, oil fumes and water or high humidity. ● Do not remove the PcPlug-R Electronics cover. ● Do not use sprays, liquids or solvents to avoid damages to the instrument. -
Page 11: 11- Warranty, Re-Calibration, And Rma
All LaserPoint products are warranted against material defects in materials and workmanship for 36 months from the date of shipment. During the warranty period, LaserPoint will repair, or at its sole discretion, replace, at no charge, the products proven to be defective. Defective products can only be returned to LaserPoint after issuance of an RMA number. -
Page 12: Rapid Calibration Service
If the customer submits items when an RMA number has not been issued, then the items will be returned to the customer at the customer’s expense. c) LaserPoint or its authorized third parties are the only entities authorized to repair or replace defective parts or products, in accordance with the internal procedures at LaserPoint. -
Page 13: On Line Servicing
RoHS 3 expanded list, such as DEHP, BBP, DBP, DIBP) are substituted by safer alternatives. LaserPoint PcPlug-R Power & Energy meter is a product compliant to RoHS European Directive. WASTE OF ELECTRICAL & ELECTRONIC EQUIPMENT 26.1-Information on Disposal of Electrical & Electronic Equipment (EUROPEAN UNION WEEE DIRECTIVE -WEEE 2012/19/EU) This product bears the selective sorting symbol for waste electrical and electronic equipment (WEEE).
