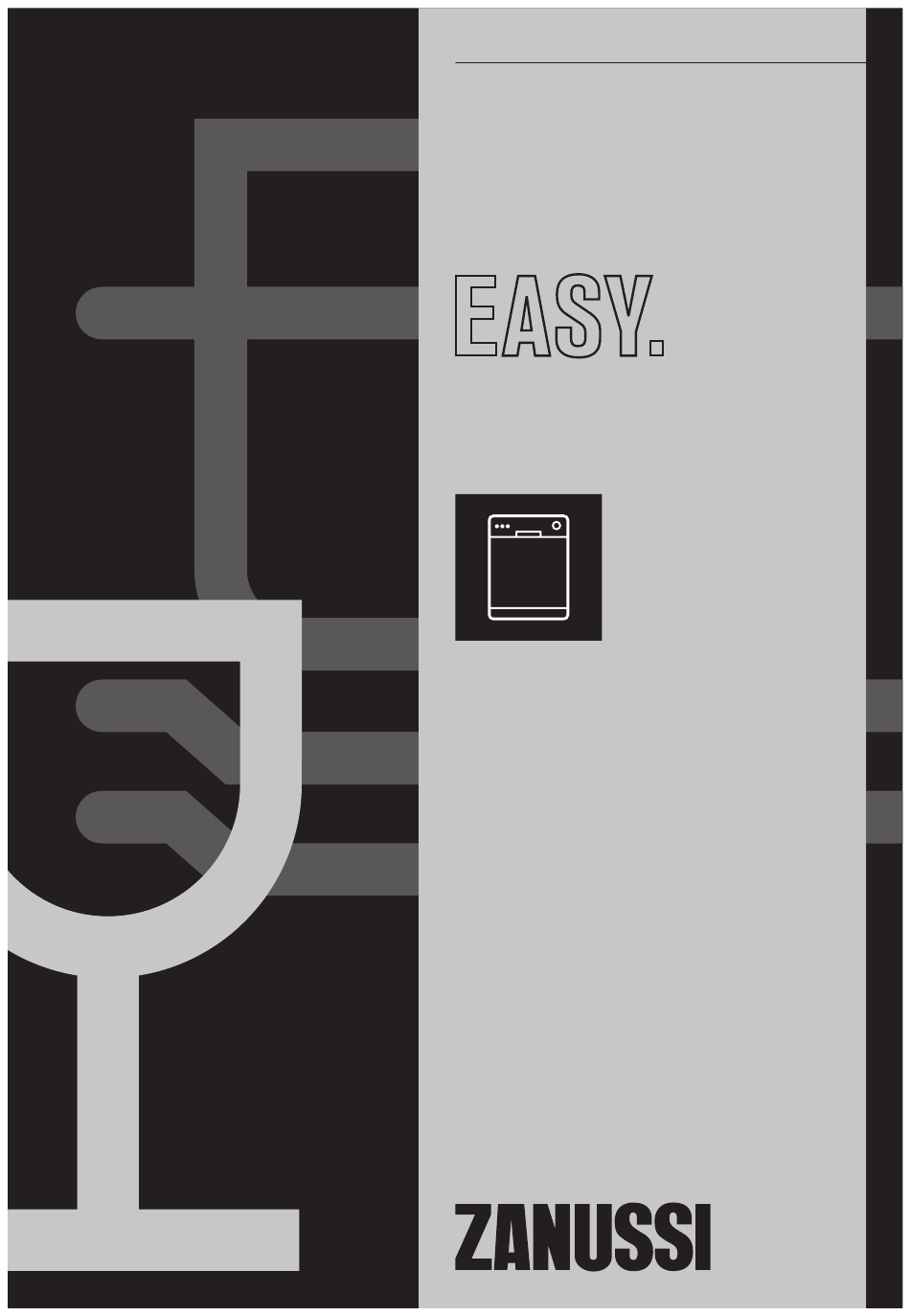

- Page 1 User Manual GETTING STARTED? EASY. ZDF26004XA ZDF26004WA EN User Manual Dishwasher...
-
Page 2: Safety Information
VISIT OUR WEBSITE TO: Get usage advice, brochures, trouble shooter, service and repair information: www.zanussi.com/support SAFETY INFORMATION Before the installation and use of the appliance, carefully read the supplied instructions. The manufacturer is not responsible for any injuries or damage that are the result of incorrect installation or usage. -
Page 3: Safety Instructions
Do not change the specification of this appliance. • The operating water pressure (minimum and maximum) must be • between 0.5 (0.05) / 8 (0.8) bar (MPa) Follow the maximum number of 13 place settings. • If the supply cord is damaged, it must be replaced by the •... - Page 4 WATER CONNECTION heating elements, including heat pumps, piping and related equipment including hoses, valves, • Do not cause damage to the water hoses. filters and aquastops, structural and interior • Before connection to new pipes, pipes not used parts related to door assemblies, printed circuit for a long time, where repair work has been boards, electronic displays, pressure switches, carried out or new devices fitted (water meters,...
-
Page 5: Control Panel
CONTROL PANEL On/off button Delay button Display Programme buttons Indicators INDICATORS Indicator Description XtraDry indicator. Rinse aid indicator. It is always off while the programme operates. Salt indicator. It is always off while the programme operates. PROGRAMMES The order of the programmes in the table may not reflect their sequence on the control panel. - Page 6 Consumption values 1)2) Degree of soil Programme Programme phases Type of load Duration Energy Water (min) (kWh) Normal soil • Prewash 1.039 Crockery and • Wash 50 °C 1.036 cutlery • Rinses • • Prewash 45 - 156 0.7 - 1.4 7 - 12 Crockery, •...
- Page 7 SETTINGS PROGRAMME SELECTION MODE ADJUSTING THE WATER SOFTENER In the programme selection mode it is possible to Make sure that the appliance is in user mode: set a washing programme and to enter the user 1. Press mode to change the appliance settings. •...
- Page 8 German degrees French degrees Clarke de- mmol/l Water softener level (°dH) (°fH) grees 23 - 28 40 - 50 4.0 - 5.0 28 - 35 19 - 22 33 - 39 3.3 - 3.9 23 - 27 15 - 18 26 - 32 2.6 - 3.2 18 - 22...
-
Page 9: Before First Use
1. Press While the drying phase operates, the • The indicators are off. device opens the appliance door. The door is then kept ajar. • The indicator flashes. • The display shows the current setting: By default, AirDry is activated with all programmes –... -
Page 10: Daily Use
ADDING SALT Before the first use, put one litre of water in the salt container. CAUTION! Water and salt can come out of the salt container during filling. To prevent corrosion, start a programme immediately after filling the salt container. ADDING RINSE AID The rinse aid helps to dry the dishes without streaks and stains. - Page 11 ADDING MULTI-TABLETS • Adjust the water softener to the lowest level. THE AUTO OFF FUNCTION ACTIVATING XTRADRY This function decreases energy consumption by Make sure the appliance is in programme selection deactivating automatically the appliance when it is mode. not operating. To activate XtraDry: The function comes into operation: 1.
-
Page 12: Hints And Tips
END OF THE PROGRAMME closing the door, the appliance continues from the point of interruption. When the programme is complete, the display shows: 0:00. If the door is opened during the drying • Press on/off or wait 5 minutes for the Auto OFF phase, before AirDry automatically function to automatically deactivate the opens it, the programme ends after 30... -
Page 13: Care And Cleaning
• Detergent tablets do not fully dissolve with short they could crack, warp, get discoloured or programmes. To prevent detergent residues on pitted. the tableware, we recommend that you use the • Do not wash in the appliance items that can tablets with long programmes. - Page 14 CLEANING THE FILTERS • Make sure that there are no residues of food or soil in or around the edge of the sump. • Put back in place the flat filter (C). Make sure that it is correctly positioned under the 2 guides. •...
-
Page 15: Troubleshooting
TROUBLESHOOTING Refer to the below table for information on possible WARNING! Improper repair of the problems. appliance may pose a danger to the With some problems, the display shows an alarm safety of the user. Any repairs must be code. performed by qualified personnel. - Page 16 Problem and alarm code Possible cause and solution Technical malfunction of the • Switch the appliance off and on. appliance. The display shows iC0 or iC3. The level of water inside the • Switch the appliance off and on. appliance is too high. •...
- Page 17 THE WASHING AND DRYING RESULTS ARE NOT SATISFACTORY Problem Possible cause and solution Poor washing results. • Refer to "Daily use", "Hints and tips" and basket loading leaflet. • Use more intensive washing programmes. • Clean spray arm jets and filter. Refer to "Care and Clean- ing".
-
Page 18: Technical Information
Problem Possible cause and solution Odours inside the appliance. • Refer to "Internal cleaning". Limescale deposits on the table- • The level of salt is low, check the refill indicator. ware, on the tub and on the in- • The cap of the salt container is loose. side of the door. -
Page 19: Environmental Concerns
ENVIRONMENTAL CONCERNS with the symbol with the household waste. Recycle materials with the symbol . Put the Return the product to your local recycling facility or packaging in relevant containers to recycle it. Help contact your municipal office. protect the environment and human health by recycling waste of electrical and electronic appliances. - Page 20 WWW.ZANUSSI.COM/SHOP...
