FONESTAR SCI-750 Instruction Manual
  1. Manuals
  2. Brands
  3. FONESTAR Manuals
  4. Conference System
  5. SCI-750
  6. Instruction manual

FONESTAR SCI-750 Instruction Manual

Wireless uhf conference system
Hide thumbs Also See for SCI-750:

Advertisement

Quick Links

Download this manual
SCI-750, SCI-760P,
SCI-770D
WIRELESS UHF
CONFERENCE SYSTEM
INSTRUCTION MANUAL

Advertisement

loading
Need help?

Need help?

Do you have a question about the SCI-750 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for FONESTAR SCI-750

Summary of Contents for FONESTAR SCI-750

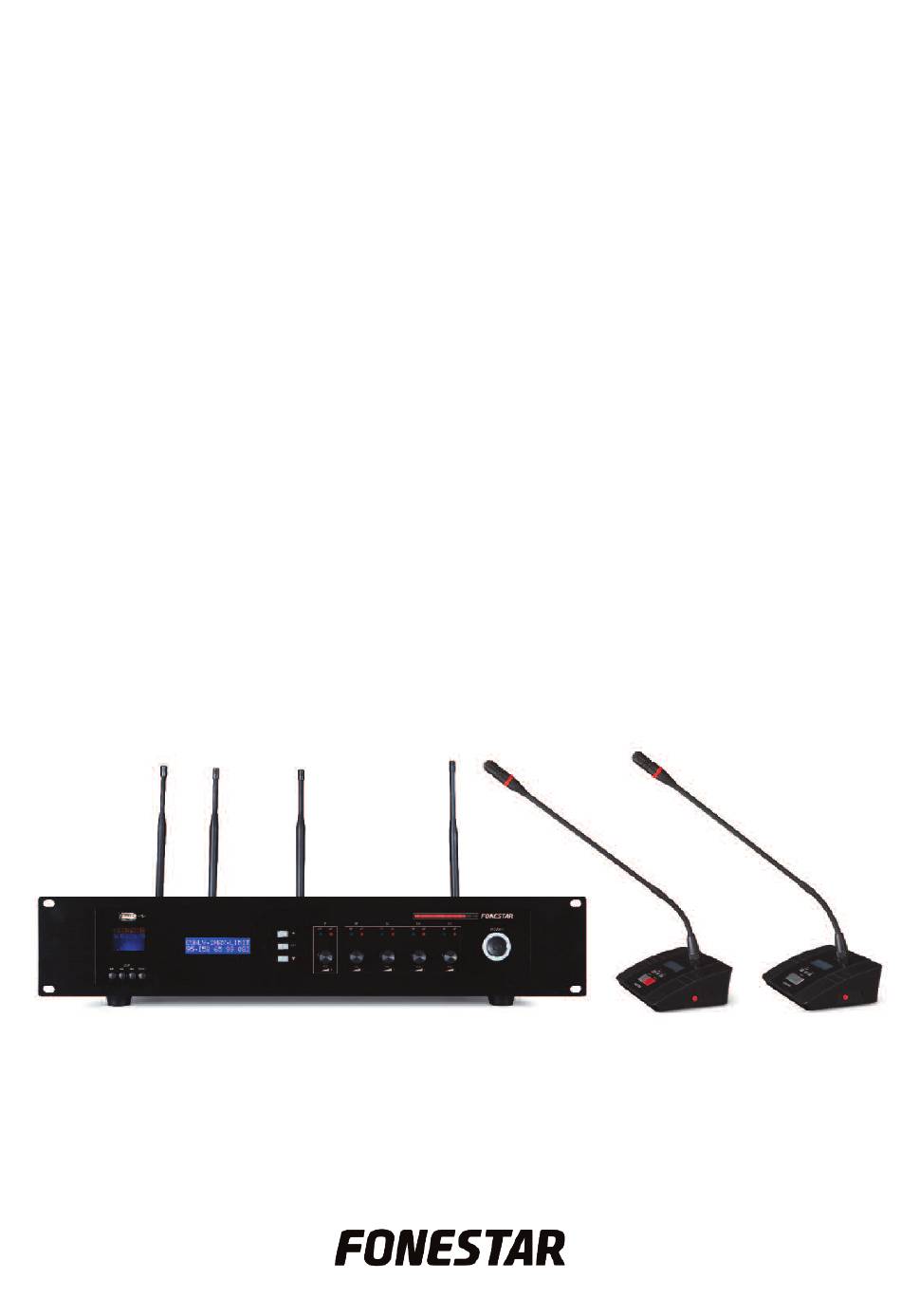

  • Page 1 SCI-750, SCI-760P, SCI-770D WIRELESS UHF CONFERENCE SYSTEM INSTRUCTION MANUAL...
  • Page 2 We take this opportunity to thank you for buying this product. We recommend you read the instruction manual before switching on the machine and follow the instructions that are given. Keep the manual for future reference. SECURITY AND THE ENVIRONMENT ELECTRICAL SECURITY Check that the current in the mains connection where the machine is to be installed corresponds to the power supply of the machine.
  • Page 3 The characteristics of the equipment and the content of the manual can change without forewarning. FONESTAR, S.A. does not assume responsibilities regarding the inappropriate use of the equipment or the information supplied in this instruction manual, and specifically disclaims any implied liability for marketability or fitness for any other use.

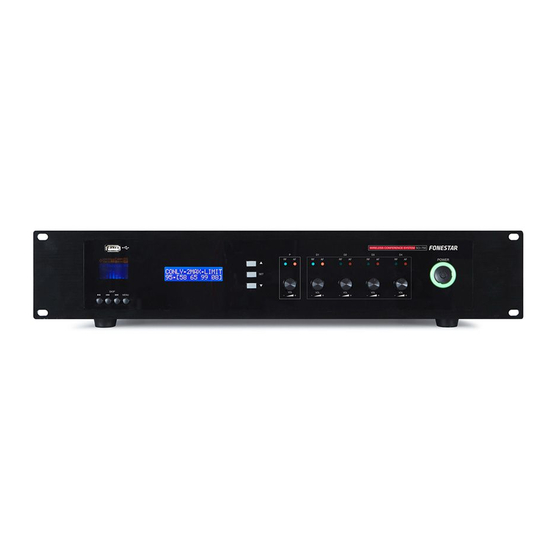

  • Page 4: Front Panel

    (mobility and ease of installation). The control unit SCI-750 has different microphone operating modes: limit, FIFO or Chairman Only. It is possible to use one president microphone SCI-760P and up to 255 delegate microphones SCI-770D. The microphones are switch activated and the president microphone can have priority over the delegate microphones.

  • Page 5: Rear Panel

    11.- { SKIP }: a short press of these buttons allows you to skip to the previous/next track. A long press of these buttons allows the playback volume to be reduced/increased. 12.- MENU: player/recorder menu access button. 13.- VOL: president and active delegate microphone volume control. 14.- LED power indicator.
  • Page 6 CONNECTION INSTRUCTIONS FOR USE OPERATING MODES This device allows 2 president operating modes to be selected: CONLY and CFREE. - CONLY: this mode deactivates all the delegate microphones when the president PRIORITY button has been pressed. - CFREE: this mode allows 5 seconds of president microphone priority starting when the PRIORITY button is pressed.
  • Page 7 Advanced configuration With the device switched off, press and hold the SET and POWER buttons simultaneously to enter the advanced configuration mode. This mode allows modification of the values: ROOM, TEST, D1, D2 and D3. When you have finished the configuration, press the POWER button. - ROOM: this setting can have 16 different values (0, 1, 2, 3, 4, 5, 6, 7, 8, 9, A, B, C, D, E or F).
  • Page 8 COMMISSIONING THE MICROPHONES Insert the batteries in the wireless desktop microphones and switch them on by pressing and holding the red button which is on the right side of the microphone base. The display will show information such as: the battery status, the wireless connection status, the microphone volume, the microphone status, the signal transmission channel, the ROOM to which it is connected and the microphone identifier.

  • Page 9: Technical Specifications

    TECHNICAL SPECIFICATIONS SCI-750 CHARACTERISTICS Control unit. LCD information display. USB/MP3 recorder/player. Integrated bluetooth receiver, plays music received from a mobile telephone. Priority control with delegate microphone cut-off while the president has priority. Maximum number of microphones in use selector. Up to 256 microphones in total, 5 active at the same time.
  • Page 10 FONESTAR SISTEMAS S.A. hereby declares that the SCI-750 type of radio equipment complies with the Directive 2014/53/EU. The complete text of the EU Declaration of Conformity is available at the following internet address: fonestarpro.com/ES/SCI-750 FONESTAR SISTEMAS S.A. hereby declares that the SCI-760P type of radio equipment complies with the Directive 2014/53/EU.

  • Page 11: Warranty

    This product has been tested and has passed the corresponding quality control prior to being put on the market. FONESTAR guarantees the suitability of the product for its specified use during a period of 2 years from the delivery date and commits itself to repair or substitute the goods as expressed in the Spanish law ‘La Ley General para la Defensa de los...
  • Page 12 www.fonestar.com...

This manual is also suitable for:

Sci-760pSci-770d
