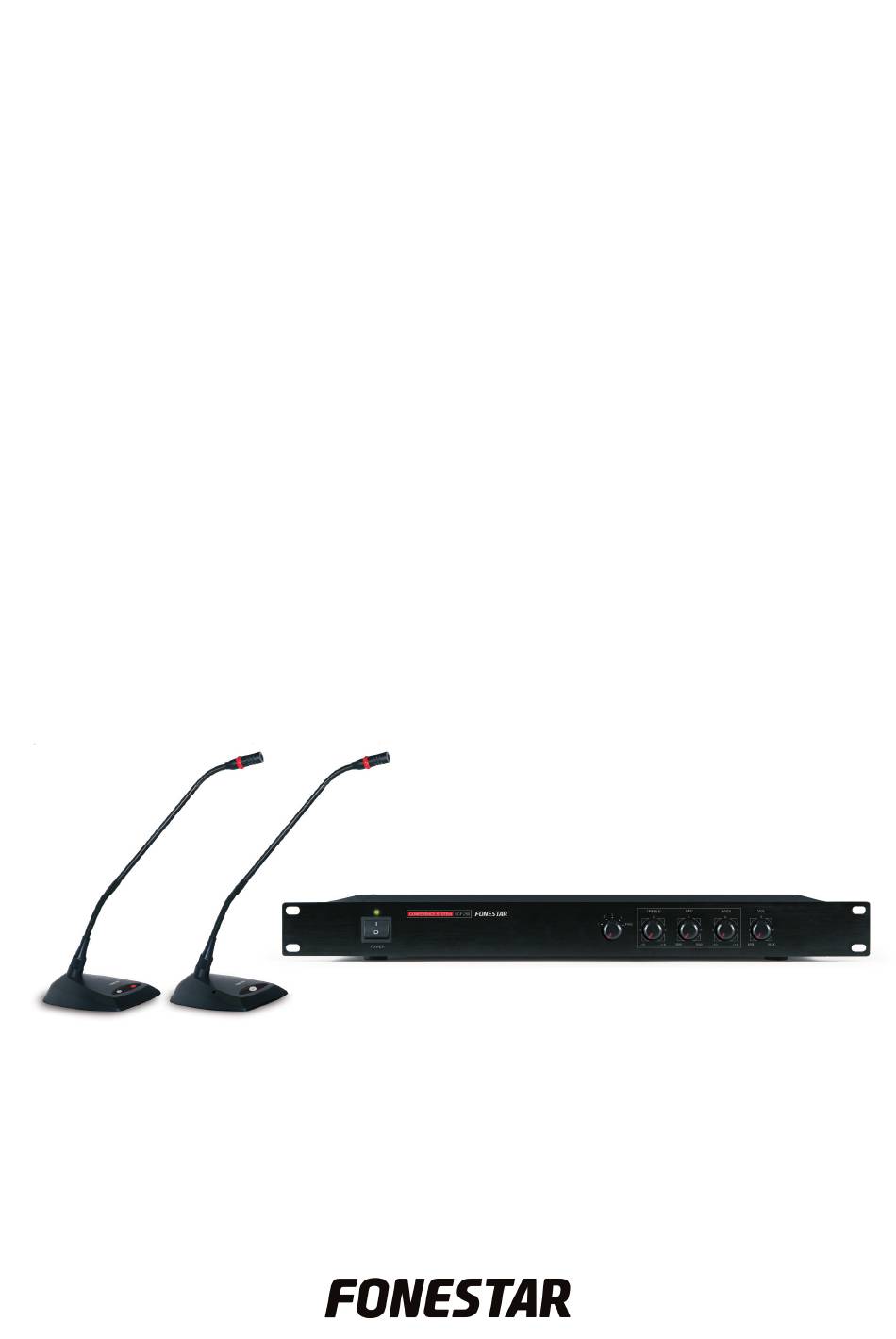

SCF-250, SCF-260P, SCF-270D
CONFERENCE AND CONGRESS SYSTEM
INSTRUCTION MANUAL

Advertisement

Table of Contents
loading

Related Manuals for FONESTAR SCF-250

Summary of Contents for FONESTAR SCF-250

  • Page 1 SCF-250, SCF-260P, SCF-270D CONFERENCE AND CONGRESS SYSTEM INSTRUCTION MANUAL...
  • Page 2 We take this opportunity to thank you for buying this product. We recommend you read the instruction manual before switching on the machine and follow the instructions that are given. Keep the manual for future reference. SECURITY AND THE ENVIRONMENT ELECTRICAL SECURITY Check that the current in the mains connection where the machine is to be installed corresponds to the power supply of the machine.

  • Page 3: Exemption Of Liability

    The characteristics of the equipment and the content of the manual can change without forewarning. FONESTAR, S.A. does not assume responsibilities regarding the inappropriate use of the equipment or the information supplied in this instruction manual, and specifically disclaims any implied liability for marketability or fitness for any other use.

  • Page 4: Rear Panel

    DESCRIPTION - This FONESTAR conference system is perfect for PA and communication in congresses, parliaments, councils, courthouses, administrative councils, seminars, round tables, debates and in general, wherever PA and communication are required among different people. - It is a system with great sound quality with a low level of noise, allowing the connection of up to 64 microphones.

  • Page 5: Installation And Connection

    SCF-270D for their connection. The control unit mod. SCF-250 is supplied with a 13 m extension cable with male DIN 8 to female DIN 8 connectors for the interconnection of devices, a male XLR to a female XLR cable and 2 RCA to 6.3 mm mono jack cables for audio output and mains supply cable.
  • Page 6 3.- If you wish, connect some of the line level outputs LINE OUT or MIX OUT to the input of an amplifier. Similarly, a recording device can be connected to the MIX OUT output. 4.- Connect the control unit to the 230 V AC mains supply and switch on the device using the switch. 5.- To speak into a microphone, press the activation button.

  • Page 7: Technical Specifications

    TECHNICAL SPECIFICATIONS SCF-250 CHARACTERISTICS System power supply control unit. Telephone connection input. Allows connection of up to 64 microphones. Maximum number of microphones operating selector. RESPONSE 20-18,000 Hz CONTROLS General volume Bass, mid and treble control Number of microphones operating selector...

  • Page 8: Warranty

    2 months after being conscious of the problem. It is only necessary to contact FONESTAR if it is impossible or imposes an undue burden for them to solve it. To benefit from this warranty it is necessary to show the proof of purchase with the date clearly visible, with no corrections or crossing out.

This manual is also suitable for:

Scf-260pScf-270d
