FONESTAR SCD-600 Instruction Manual
Digital conference system
Hide thumbs
Also See for SCD-600:
- Manual (48 pages) ,
- Software manual (44 pages) ,
- Instruction manual (41 pages)
Related Manuals for FONESTAR SCD-600
Summary of Contents for FONESTAR SCD-600

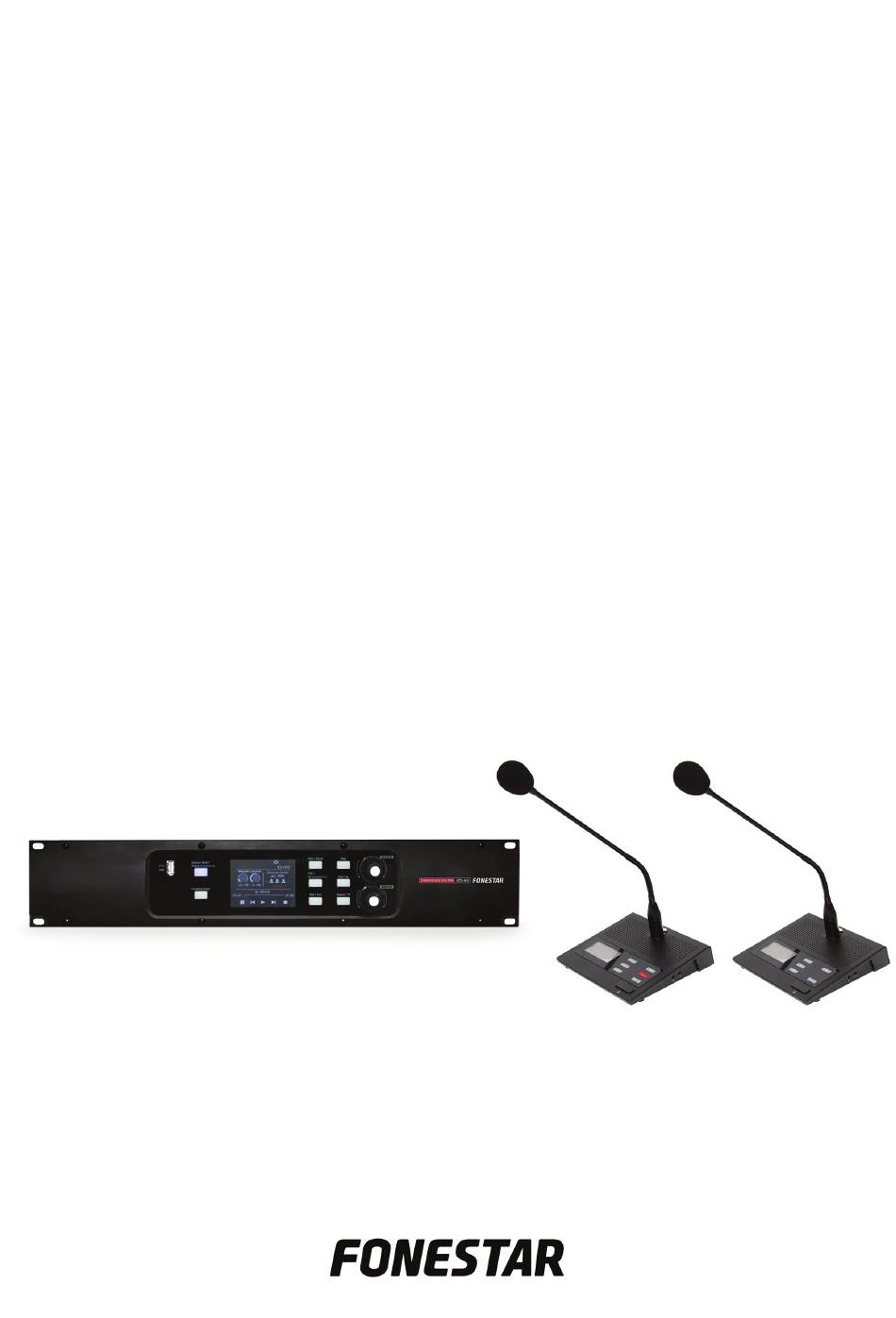

- Page 1 SCD-600, SCD-610P, SCD-620D, SCD-630EXT DIGITAL CONFERENCE SYSTEM INSTRUCTION MANUAL...
- Page 2 We take this opportunity to thank you for buying this product. We recommend you read the instruction manual before switching on the machine and follow the instructions that are given. Keep the manual for future reference. SECURITY AND THE ENVIRONMENT ELECTRICAL SECURITY Check that the current in the mains connection where the machine is to be installed corresponds to the power supply of the machine.
-
Page 3: Exemption Of Liability
The characteristics of the equipment and the content of the manual can change without forewarning. FONESTAR, S.A. does not assume responsibilities regarding the inappropriate use of the equipment or the information supplied in this instruction manual, and specifically disclaims any implied liability for marketability or fitness for any other use. - Page 4 PC and Android. Compatible with Dante. The SCD-600 control unit has different modes of simultaneous microphone operation: all, 9 maximum, 6 maximum and 3 maximum. Up to 2 groups of 16 president microphones, SCD-610P (only one), or delegate microphones, SCD-620D, can be used simultaneously.
-
Page 5: Rear Panel
FEEDBACK KILLER: a short press of this button activates / deactivates the feedback suppressor function. A long press on this button accesses the feedback suppressor setup menu. 10.- REC/EXIT: start recording on the USB storage device. In the setup menus, you can exit the current menu. - Page 6 SCD-610P PRESIDENT DESKTOP MICROPHONE 1.- Gooseneck microphone with LED ring connector. 2.- Information display. 3.- AGREE: button for voting in favor. 4.- DROP: button for abstention. 5.- DISAGREE: button for voting against. 6.- +/-: increases or decreases headphone volume. 7.- PRIORITY: president microphone speaking rights control. Pressing this button will deactivate the rest of delegated microphones and only the president microphone can be used.
-
Page 7: Front Panel
1.- Gooseneck microphone with LED ring connector. 2.- Information display. 3.- AGREE: button for voting in favor. 4.- DROP: button for abstention. 5.- DISAGREE: button for voting against. 6.- +/-: increases or decreases the volume of the headphones. 7.- Microphone on/off button. 8.- IN/LINK: input and extension connector for SCI-610P and SCI-620D microphones. - Page 8 To access configuration and use instructions for the conference system via PC software or the Android app, download the Configuration and Use Manual at the following address: http://www.fonestar.com/SCD-600 INTEGRATION WITH OTHER SYSTEMS This equipment allows for integration with video systems. For communication between the devices, it is necessary to connect the devices using the ethernet cable, RS485 connector.
-
Page 9: Technical Specifications
TECHNICAL SPECIFICATIONS SCD-600 CHARACTERISTICS Control unit. LCD information display. USB/MP3 recorder/player. Priority control with delegate cut-off while president has priority. Maximum number of microphones in use selector. Up to 128 microphones in total with the microphone extension SCD-630EXT. Audio and control signal transition between the switchboard and the microphones. -
Page 10: Warranty
This product has been tested and has passed the corresponding quality control prior to being put on the market. FONESTAR guarantees the suitability of the product for its specified use during a period of 2 years from the delivery date and commits itself to repair or substitute the goods as expressed in the Spanish law ‘La Ley General para la Defensa de los Consumidores y Usuarios, Real Decreto Legislativo 1/2007 16 Noviembre. - Page 11 - 11 -...
