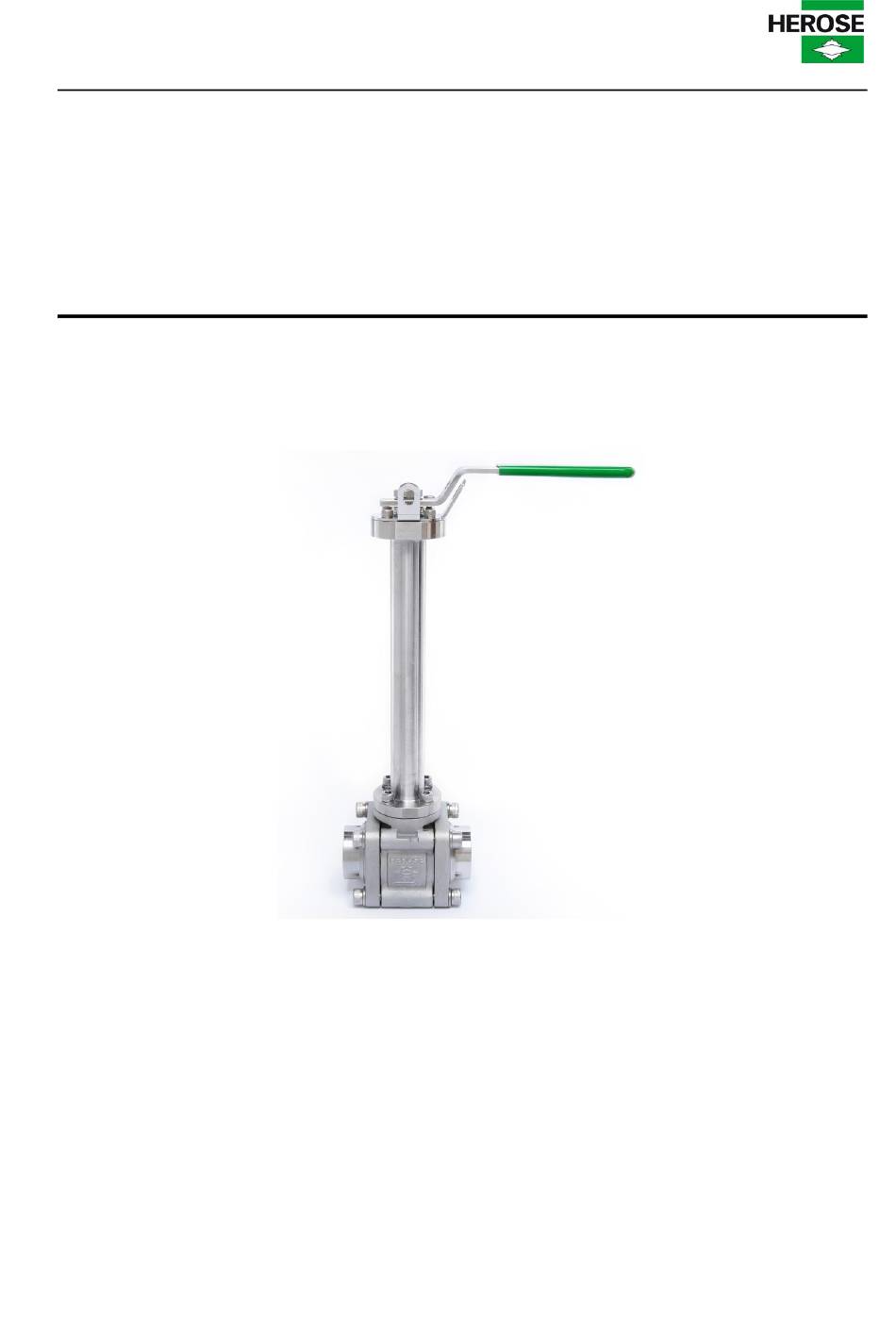

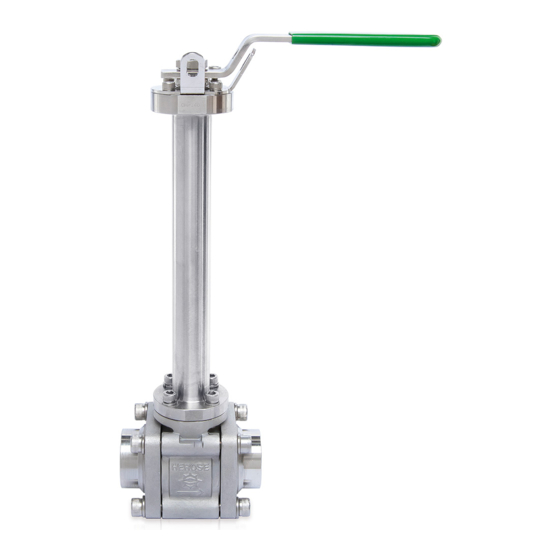

- Page 1 HEROSE GMBH ARMATUREN UND METALLE Operating instructions 3-piece ball valve...
- Page 3 Operating instructions READ CAREFULLY BEFORE USE! RETAIN FOR FUTURE REFERENCE! © 2019 HEROSE GMBH ARMATUREN UND METALLE Elly-Heuss-Knapp-Straße 12 23843 Bad Oldesloe Germany Phone: +49 4531 509 – 0 Fax: +49 4531 509 – 120 E-mail: info@herose.com Web: www.herose.com issue 06/2019 The transmission or duplication of this document and the use or communication of its content are forbidden unless expressly permitted.
-
Page 4: Table Of Contents
Operating instructions Table of contents About these instructions ....................1 Safety ..........................1 Transport and storage ....................4 Description of the ball valve ................... 4 Assembly ........................7 Operation ........................9 Maintenance and service ....................9 Disassembly and disposal ................... 10 Phone +49 4531 509-0... -
Page 5: About These Instructions
People could be seriously injured or killed if the operating instructions are not followed. Read and observe the operating instructions before using the ball valve. Retain the operating instructions and make sure they are available. Pass on the operating instructions to subsequent users. herose.com... - Page 6 Operating instructions Requirements for persons who work on the ball valve Persons could be seriously injured or killed if the ball valve is used improperly. In order to avoid accidents, all persons who work with the ball valve must meet the following minimum requirements. ...
- Page 7 Do not use the ball valve as a foothold. Exceeding the maximum permissible operating conditions. Damage to the ball valve! The maximum permissible operating pressure must not be exceeded, and the minimum and maximum permissible operating temperatures must be observed. herose.com...
-
Page 8: Transport And Storage
The ball valve is provided with an individual marking for identification. Symbol Explanation DN….. Nominal size Rated working pressure (max. permissible operating PN….. pressure) -…..°C +…..°C Temperature Manufacturer's mark "HEROSE" 01/18 Date of manufacture MM/YY 12345 Type 01234567 Serial no. EN1626 Standard CE-mark and number of the notified body 0045 e.g. - Page 9 The closing direction is clockwise. Operating data Rated Valve Temperature Max. operating pressure pressure 15C01 PN 50 -196 °C to +65 °C 50 bar Media Gases, cryogenic liquefied gases and their gas mixtures, such as: Name Argon...
- Page 10 See catalogue page. Lifetime The user is obligated to use Herose products only for their intended purpose. In this case, a technical service life may be assumed in accordance with the underlying product standards (e.g. EN1626 for shut-off valves and EN ISO 4126-1 for safety valves).
-
Page 11: Assembly
Welding / soldering of the valves and any heat treatment that may be required are the responsibility of the contracting construction company or operating company. Before welding / soldering Loosen the bolts Direction of rotation: counter clockwise Remove the bolts Remove the side parts herose.com... - Page 12 Operating instructions Weld on / solder in the side parts After welding / soldering Position the body between the side parts Do not damage the seal Mount the bolts Tighten the bolts to the specified tightening torque in a criss-cross pattern Direction of rotation: clockwise...
-
Page 13: Operation
Replacement of all sealing elements, including a function and leak test as well as a visual inspection. Hydraulic testing Every 10 years Replacement of all sealing elements, including a function, leak and pressure test as well as an inspection. herose.com... -
Page 14: Disassembly And Disposal
Returns / complaints Use the Service form in case of returns/complaints. Contact in case of service: Herose.com › Service › Product service › Complaints E-mail: service@herose.com Fax: +49 4531 509 – 9285 Disassembly and disposal Notes regarding the disassembly ...
