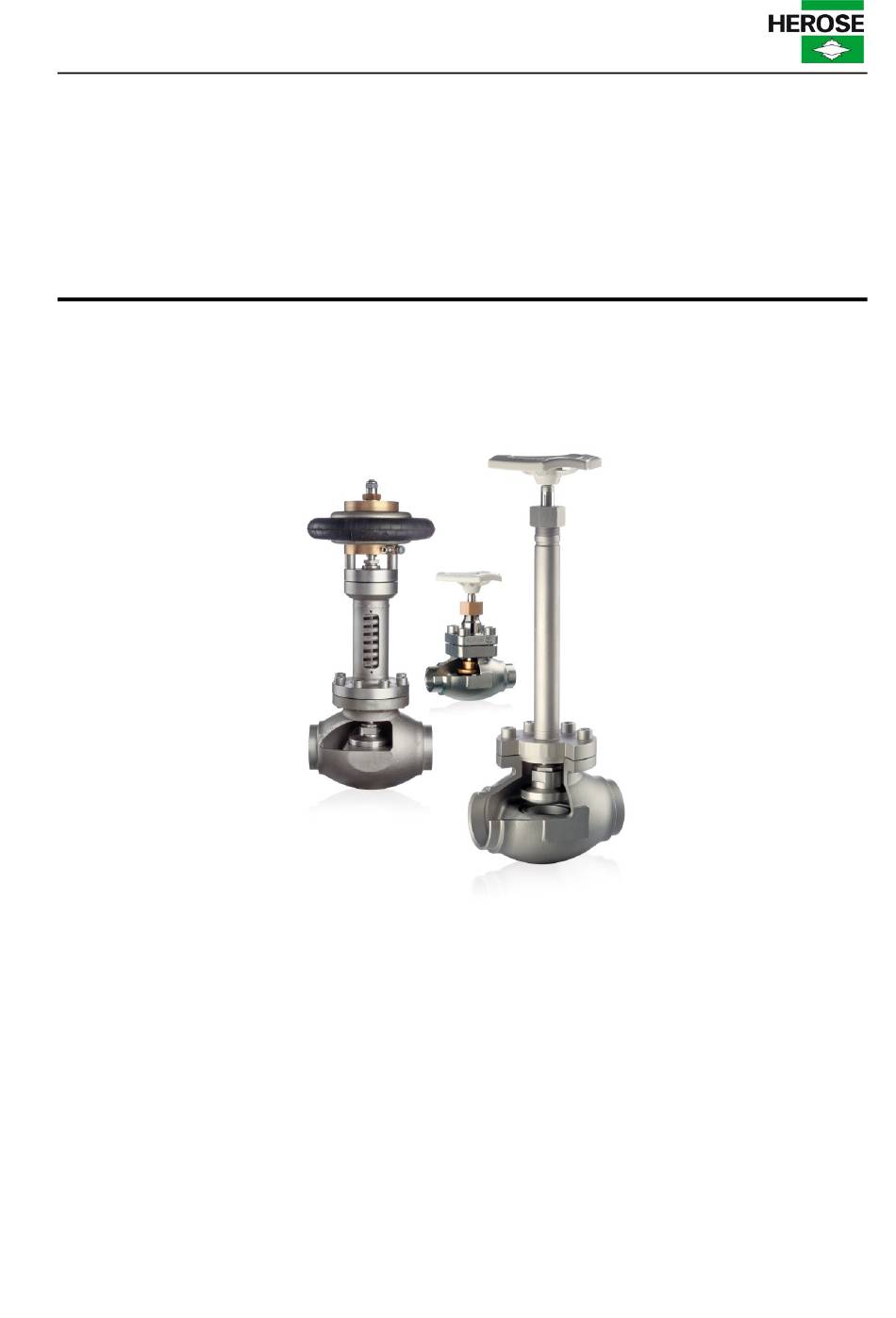

- Page 1 HEROSE GMBH ARMATUREN UND METALLE Operating instructions Cryogenic globe valves...
- Page 3 Operating instructions READ CAREFULLY BEFORE USE! RETAIN FOR FUTURE REFERENCE! © 2019 HEROSE GMBH ARMATUREN UND METALLE Elly-Heuss-Knapp-Straße 12 23843 Bad Oldesloe Germany Phone: +49 4531 509 – 0 Fax: +49 4531 509 – 120 E-mail: info@herose.com Web: www.herose.com issue 06/2019 The transmission or duplication of this document and the use or communication of its content are forbidden unless expressly permitted.
-
Page 4: Table Of Contents
Operating instructions Table of contents About these instructions ....................1 Safety ..........................1 Transport and storage ....................4 Description of the globe valve ..................4 Assembly ........................9 Operation ........................12 Maintenance and service ..................... 13 Disassembly and disposal ................... 15 Phone +49 4531 509-0... -
Page 5: About These Instructions
People could be seriously injured or killed if the operating instructions are not followed. Read and observe the operating instructions before using the globe valve. Retain the operating instructions and make sure they are available. Pass on the operating instructions to subsequent users. herose.com... - Page 6 Operating instructions Requirements for persons who work with the globe valve Persons could be seriously injured or killed if the globe valve is used improperly. In order to avoid accidents, all persons who work with the globe valve must meet the following minimum requirements. ...
- Page 7 Remove contaminants from the pipes. Incorrect earthing during welding work in the pipeline. Damage to the globe valve (burned spots)! Remove bonnet during welding. When carrying out electric welding work, do not use functional parts of the globe valve for earthing. herose.com...
-
Page 8: Transport And Storage
Symbol Explanation DN….. Nominal size Rated working pressure (max. permissible operating PN….. pressure) -…..°C +…..°C Temperature, min. / max. Manufacturer's mark “HEROSE” 01/18 Year of construction MM/YY 12345 Type 01234567 Serial no. EN1626 Standard CE-mark and number of the notified body... - Page 9 Class 300 Class 300 0127x PN 50 -255 °C to +120 °C 50 bar 0128x PN 50 50 bar 0174x (DN150 = PN40; -255 °C to +120 °C (DN150 = 40 bar; 0184x DN200 = PN25) DN200 = 25 bar) herose.com...
- Page 10 Operating instructions Permissible Recommended Globe Nominal Max. operating operating operating valve pressure pressure temperature temperature PN 40 40 bar 0327x Class 150 -255 °C to +120 °C Class 150 Class 300 Class 300 0332x PN 16 16 bar 0334x PN 40 40 bar -255 °C to +120 °C Class 150...
- Page 11 1.4301; 1.4305; 1.4401; 1.4404; 1.4571 Screws A2 – 70; A4 – 70 Bonnet CC493K; 1.4301; 1.4308 (CF8);1.4401; 1.4404; 1.4409 (CF3M); 1.4571 Obturator CW614N; 1.4301; 1.4401; 1.4404; 1.4571; Hostaflon TFM4215, TFM1600, TFM1700; PCTFE; Flon 1756 Body CC491K; 1.4308 (CF8); 1.4409 (CF3M) herose.com...
- Page 12 Operating instructions DN 200 Part Name Material DN 200 Handwheel Aluminium alloy; 1.4571; 1.4409 Actuator Various Stem 1.4301; 1.4404 Screws A2 – 70; A4 – 70 Bonnet 1.4301; 1.4404 Obturator 1.4301; 1.4404; PCTFE; PTFE; PTFE/carbon Body 1.4308 (CF8); 1.4409 (CF3M) Flange 1.4301;...
-
Page 13: Assembly
See catalogue page. Lifetime The user is obligated to use Herose products only for their intended purpose. In this case, a technical service life may be assumed in accordance with the underlying product standards (e.g. EN1626 for shut-off valves and EN ISO 4126-1 for safety valves). - Page 14 Operating instructions Welding / soldering Welding / soldering of the globe valves and any heat treatment that may be required are the responsibility of the contracting construction company or operating company. Before welding / soldering Loosen the screws Direction of rotation: counter clockwise ...
- Page 15 After welding / soldering Insert a new seal Assemble the bonnet Do not damage the seal Assemble the screws Tighten the screws to the specified tightening torque in a criss-cross pattern Direction of rotation: clockwise herose.com...
-
Page 16: Operation
Operating instructions Assembly sequence for the bolts Cap bolt Nominal bonnet/ bonnet/ bonnet/ size RB-body SS-body [Nm] [Nm] body [Nm] DN 10 DN 15 Bonnet / body tightening torques DN 20 RB-bonnet ≙ Red brass bonnet DN 25 RB-body ≙... -
Page 17: Maintenance And Service
Replacement of all sealing elements, including a function and tightness test as well as a visual inspection. Hydraulic testing Every 10 years Replacement of all sealing elements, including a function, leak and pressure test as well as an inspection. herose.com... - Page 18 Returns / complaints Use the Service form in case of returns/complaints. Contact in case of service: Herose.com › Service › Product service › Complaints E-mail: service@herose.com Fax: +49 4531 509 – 9285 Phone +49 4531 509-0...
-
Page 19: Disassembly And Disposal
Aerate / flush the pipework system in the case of corrosive and aggressive media. Disposal Dismantle the globe valve. Collect greases and lubricating fluids during dismantling. Separate the materials: Metal Synthetic material Electronic scrap Greases and lubricating fluids Carry out a sorted disposal of the materials. herose.com...
