2 - INTRODUCTION TO THE PRODUCT

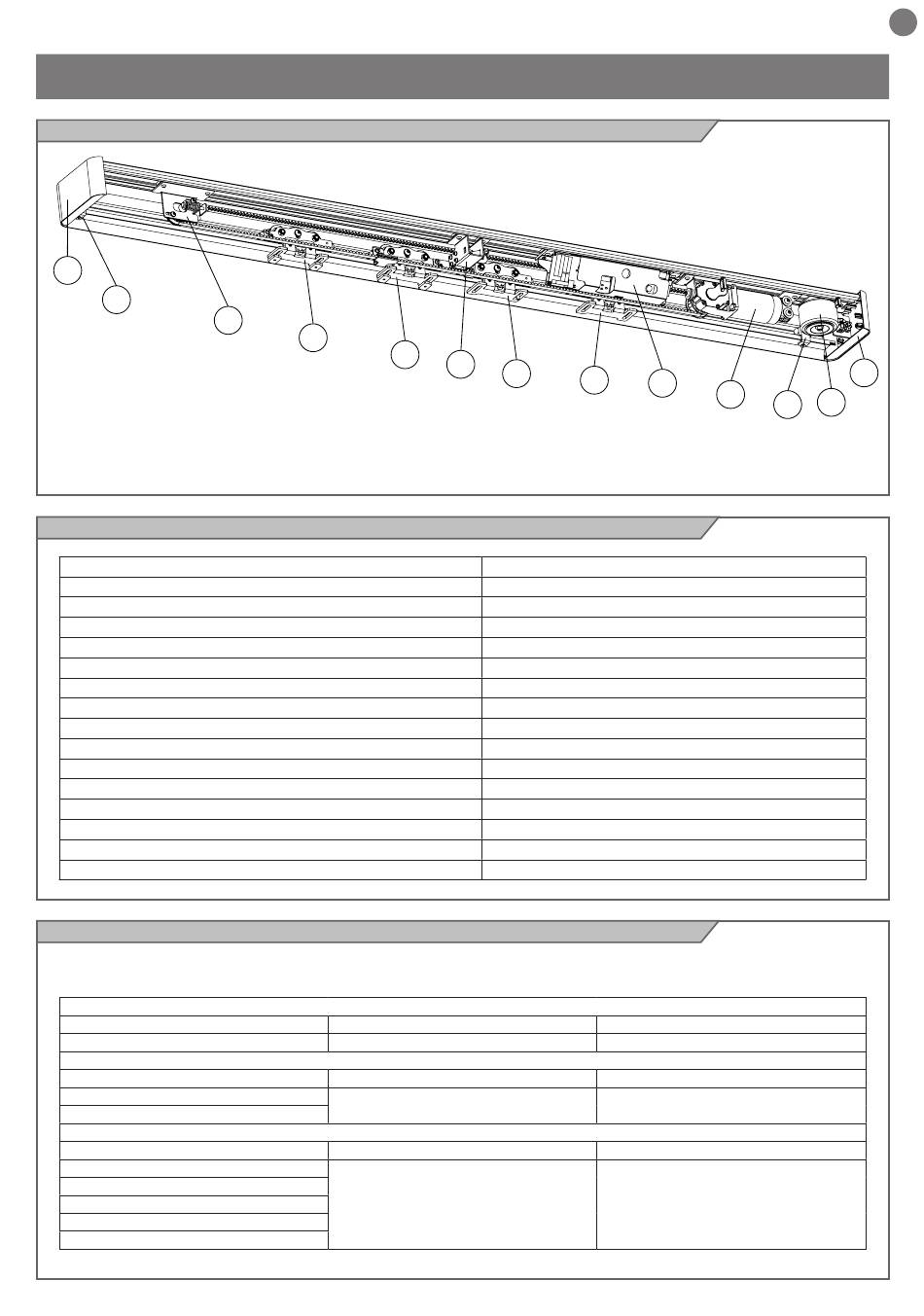

2.1 - Product description

8
5
4
The automation consists of the following subgroups:
1- 24V transformer group
2- Motor unit
3- Central control unit
4- Guide pulley with tensioner unit
5- Mechanical limit switch

2.2 - Technical specifications

Power supply
Rated power
Electric lock voltage
Battery charger
Electric motor
Recommended max. weight for panel
Opening speed
Closing speed
Opening pause time
Operating temperature
Protection rating
Crosspiece length
Fuse 1 power line
Auxiliary battery power supply fuse
Accessories power outlet
Use in highly acid, saline or explosive atmosphere

2.3 - Wiring table

It is advisable to run the cables to the far right, looking at the automation box, with a cable excess of approximately 3 m.
Power supply 230V
Control inputs
Inputs
OPEN CLOSE
START STOP
BASE internal radar, external radar
AS+
AS-
COM
RADAR (INT/EXT)
6
6
9
6- Runner
7- Right side cap
8- Left side cap
9- Electric lock
Max length [m]
3
Max length [m]
30
Max length [m]
30
6
6
3
230 Vac (+/- 10%) 50/60 Hz
130 W
12 Vdc, 5 W
27.6 Vdc max, I max = 350 mA max during charging
24 Vdc max power 80 VA
1 panel 160 Kg; 2 panels 120 Kg + 120 Kg
Adjustable max 80 cm/s (for panel in weight class "0")
Adjustable max 50 cm/s (for panel in weight class "0")
Adjustable from 0 to 60 seconds
from -20°C to +55°C
IP 22
max 7 m
15A blade fuse type AL
15A blade fuse type AL
28V max, with 500mA max
NO
H05VV-F 3G1 mm²
PVC LiYY 5x0.34mm²
PVC LiYY 5x0.34mm²
7
2
1
5
Cable type
Cable type
Cable type
