Key Automation LEVANTE Instructions And Warnings For Installation And Use page 13

IT

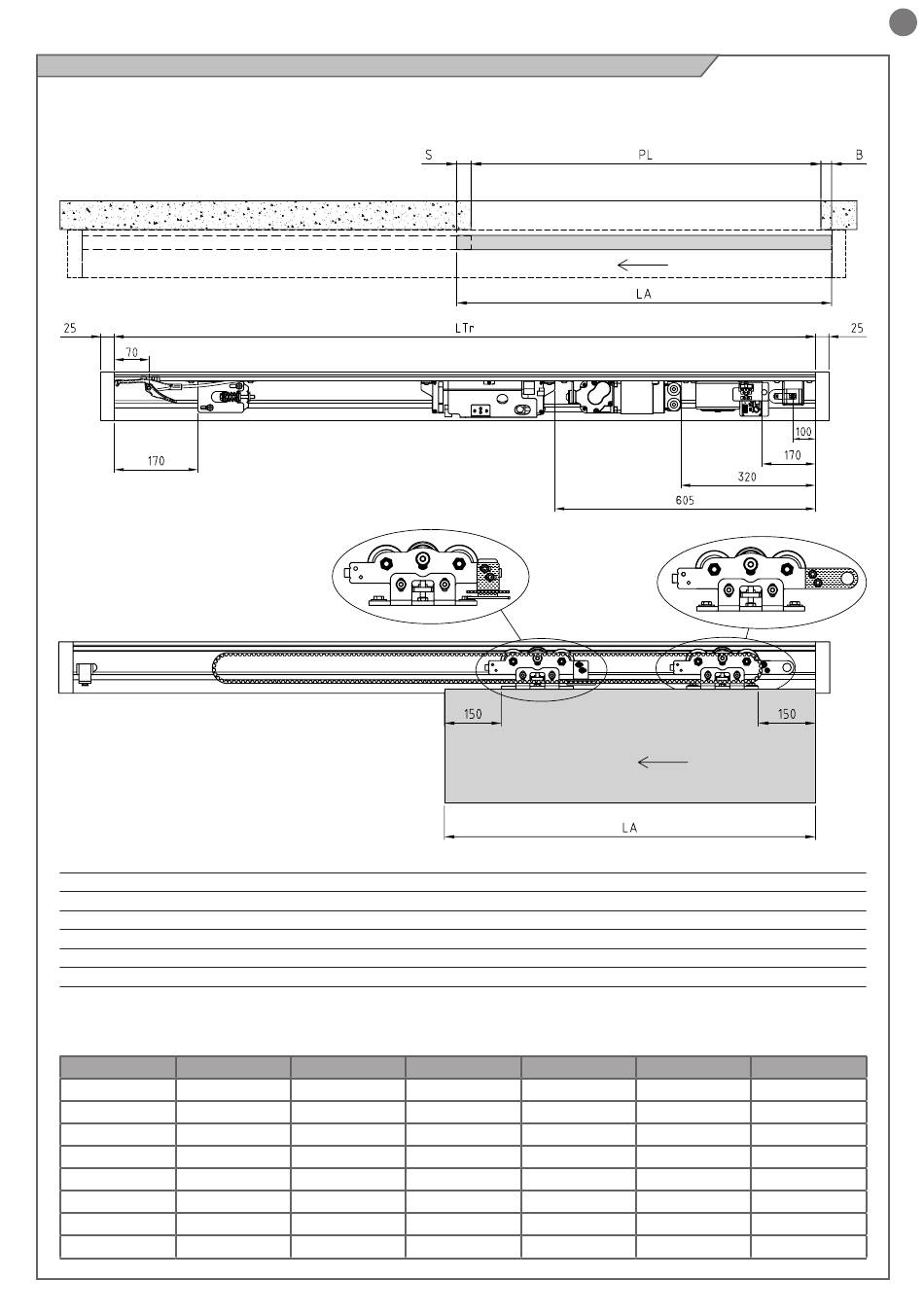

5.5 - Dimensions of installation of single panel with opening to the left - Top and front views
Indications for installation of subgroups, runner positions,
calculation of automation length and permitted limit measurements.
Beam length
Panel width
Useful passage or passageway width
Opening side overlap
Closure side overlap
Total automation length
Belt transmission position
Belt length
Table of measurements of single panel standard beams with opening to the left.
LTr
1900
2100
2500
2900
3300
3700
4100
4300
PL LA
900 970
1000 1070
1200 1270
1400 1470
1600 1670
1800 1870
2000 2070
2100 2170
All dimensions in the following layouts are expressed in millimetres.
OPEN
LTr = LA+PL+B
LA = PL+S+B
= PL
S = 40 mm
B = 30 mm
Ltot = LTr+2*25
Dtc = 170 mm
Lbelt = 2LTr-1310
S B
40 30
40 30
40 30
40 30
40 30
40 30
40 30
40 30
Ltot Lbelt
1950 2500
2150 2900
2550 3700
2950 4500
3350 5300
3750 6100
4150 6900
4350 7300
EN
13
