IKONIX SCI 290 Series Operation & Service Manual page 25

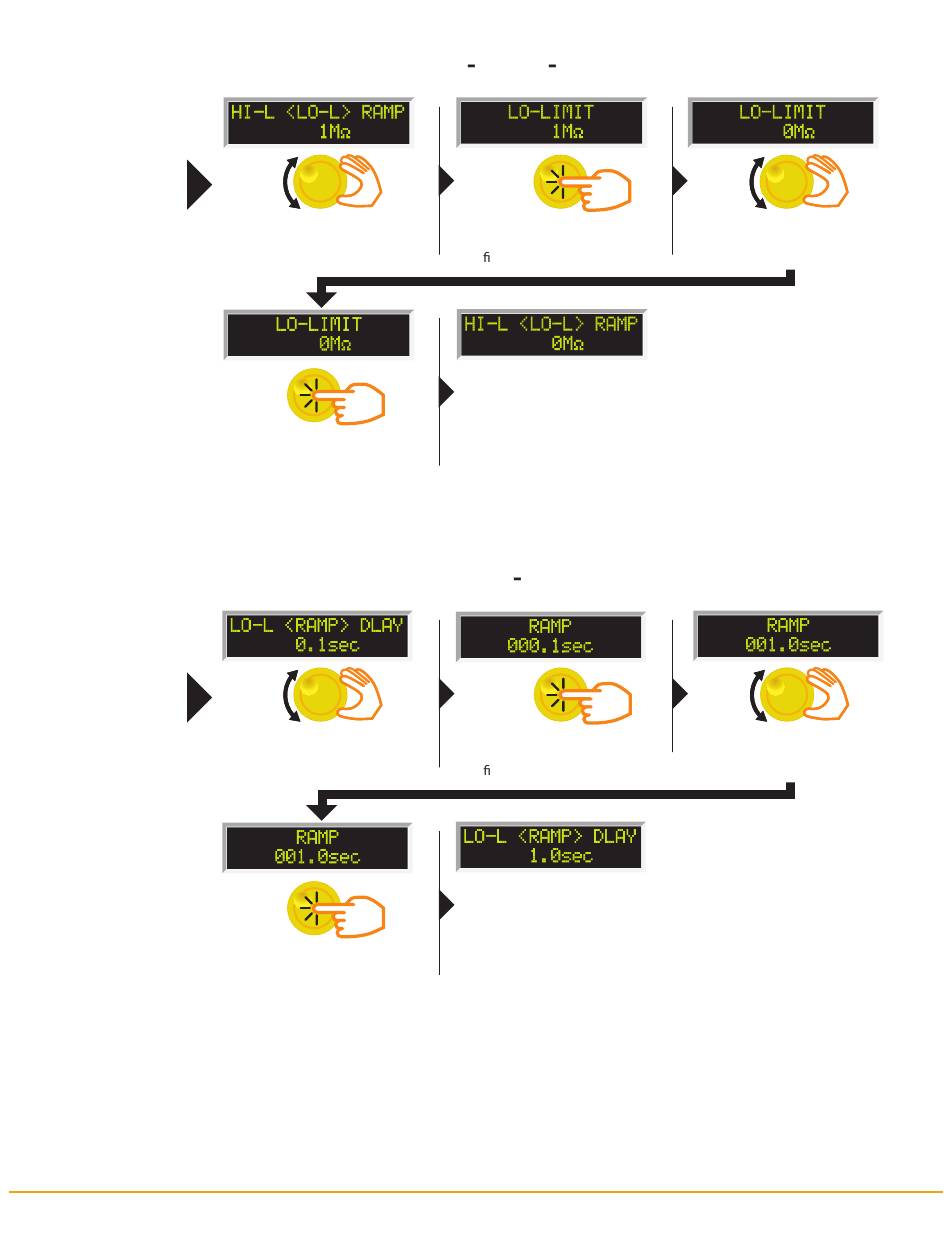

PROGRAM A MEMORY: CHANGE LO LIMIT IR
START
PROGRAM A MEMORY: CHANGE RAMP IR
START
hipot.com
Turn the yellow rotary knob to
scroll to desired parameter to
edit LO-L.
Press the rotary knob to select the
setting and move to the next digit.
Turn the yellow rotary knob to
scroll to desired parameter to
edit RAMP.
Press the rotary knob to select the
setting and move to the next digit.
When LO-L is selected. Press the
rotary knob to edit the LO-Limit.
The rst digit of LO-Limit will blink.
When done, you will be returned
to the previous menu.
When RAMP is selected. Press the
rotary knob to edit the Ramp Time.
The rst digit of Ramp Time will blink.
When done, you will be returned
to the previous menu.
Turn the rotary knob to change
the LO-Limit setting for each digit.
Turn the rotary knob to change
the Ramp Time for each digit.
25
