Atlantic Technology AT-1-S-GLF Instruction Manual
  1. Manuals
  2. Brands
  3. Atlantic Technology Manuals
  4. Speakers
  5. AT-1-S-GLF
  6. Instruction manual

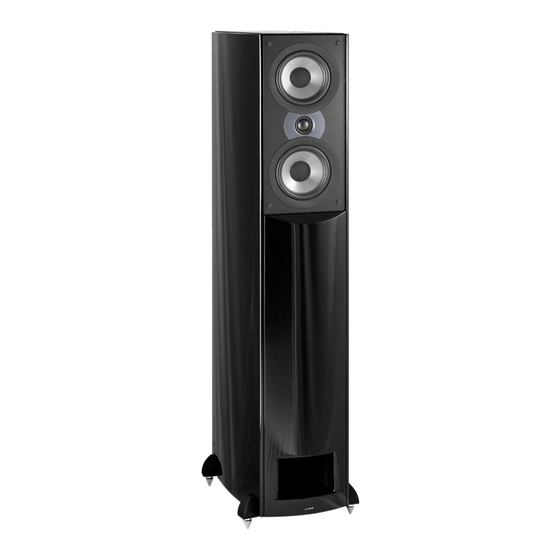

Atlantic Technology AT-1-S-GLF Instruction Manual

High performance loudspeaker with h-pas technology
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
AT-1
High Performance Loudspeaker
with H-PAS™ Technology

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AT-1-S-GLF and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Atlantic Technology AT-1-S-GLF

Summary of Contents for Atlantic Technology AT-1-S-GLF

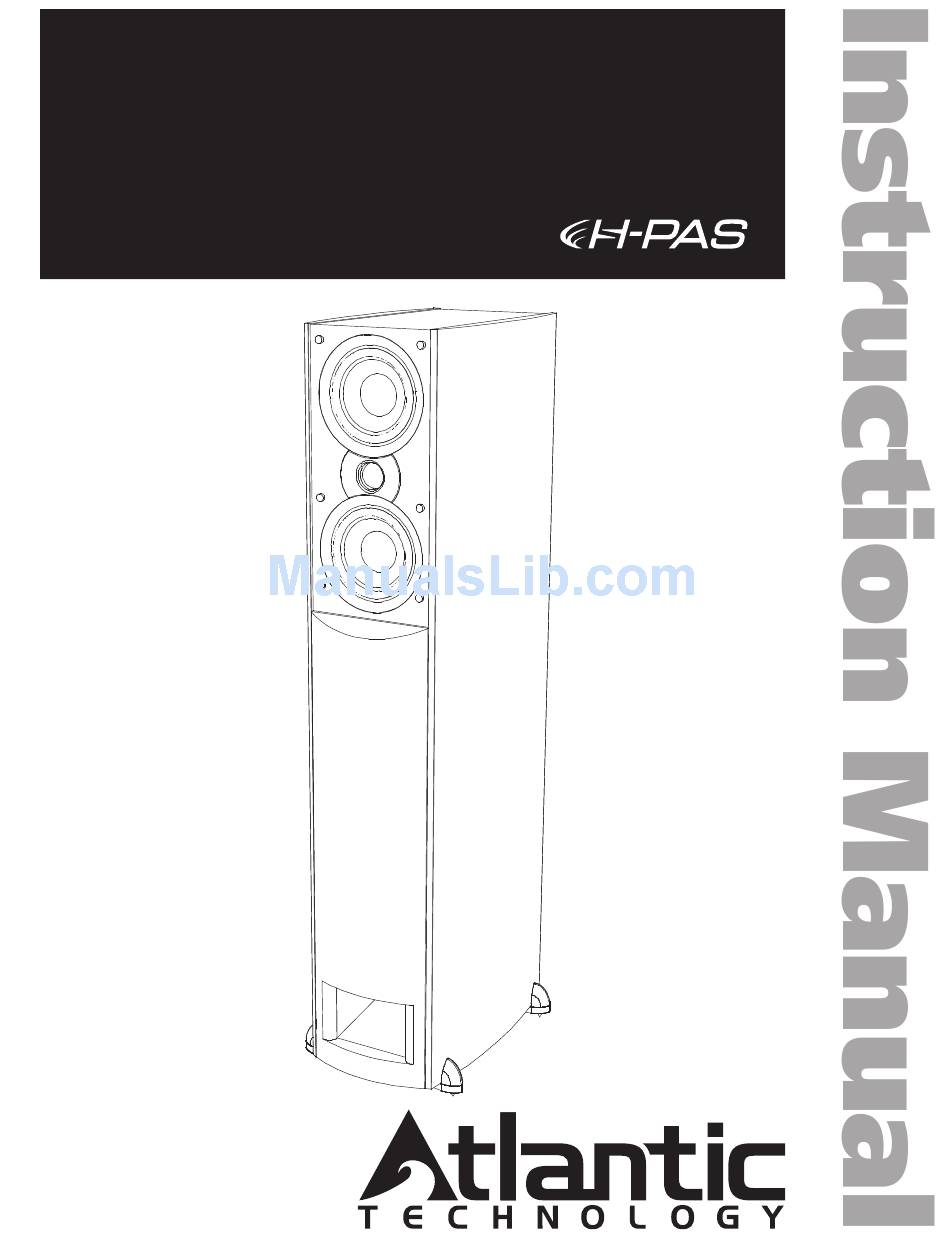

  • Page 1 AT-1 High Performance Loudspeaker with H-PAS™ Technology...

  • Page 2: Table Of Contents

    Serial Number Date of Purchase The contents of this manual are Copyright © 2010 by Atlantic Technology International, Corp., and may not be duplicated or reproduced by any means, whether physical, electronic or otherwise without prior written consent from Atlantic Technology International, Corp.

  • Page 3: Unpacking The Speakers

    Instruction Manual Unpacking the Speakers Use care when unpacking the speakers. Since the grilles are packed off the speakers, be particularly careful of the driver elements as you unpack and move the speakers. Remember to keep the original boxes and packing mate- rial, in the unlikely event the speakers need servicing, or if you move.

  • Page 4: Placement

    TV, distracting you from the picture. Like all Atlantic Technology speakers, the AT-1 is tonally “voiced” to mix and match with our other models. The 4400 C or 6200e C both make excellent cen- ter channel speaker companions to the AT-1 LRs in a home theater system.
  • Page 5 Instruction Manual Speaker Placement for Home Theater Front Speaker Array should be within Surround Speakers should be placed directly to the sides of the seating area and approximately 3 feet (1 meter) above the listener’s ear level. Left Surround Surround Back 18”...

  • Page 6: Connecting Your Speakers

    Connecting Your Speakers Connecting Your Speakers We recommend that you connect your system using high quality dual conductor stranded wire of 16 gauge or heavier, for lengths up to 25 feet (8m) . Remember, the lower the gauge number, the heavier the wire. Use heavier gauge wire for longer runs.

  • Page 7: System Wiring

    Instruction Manual System Wiring Be sure to connect red (+) on the speaker to red (+) on the amplifier and black (–) on the speaker to black (–) on the amplifier. Figure 6 Conventional Connection INPUT Figure 7 Bi-amp Connection INPUT AMP FOR HIGH FREQUENCIES...

  • Page 8: High Frequency Energy Control

    High Frequency Energy Control High Frequency Energy Control This control changes the relative output level of the tweeter. It has been designed to help compensate for different room acoustics and personal listening preferences. The ‘0’ position is the most “accurate” frequency response, but that does not mean that it is necessarily the “recommended”...

  • Page 9: Specifications

    54 lbs (25 kg) ea. *Graphite Loaded Homopolymer Specifications are those in effect at the time of printing. Atlantic Technology reserves the right to change specifications or appearance at any time without notice. All other trademarks are the property of their respective owners.
  • Page 10 Notes AT-1 High Performance Loudspeaker with H-PAS™ Technology...
  • Page 11 Notes Instruction Manual...
  • Page 12 343 Vanderbilt Avenue Norwood, MA 02062 (781) 762-6300 www.atlantictechnology.com 015-0001...

This manual is also suitable for:

At-1

Table of Contents
