AT-2
High Performance Loudspeaker
with H-PAS™ Technology

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AT-2 and is the answer not in the manual?

Questions and answers

Related Manuals for Atlantic Technology AT-2

Summary of Contents for Atlantic Technology AT-2

  • Page 1 AT-2 High Performance Loudspeaker with H-PAS™ Technology...

  • Page 2: Table Of Contents

    Serial Number Date of Purchase The contents of this manual are Copyright © 2011 by Atlantic Technology International, Corp., and may not be duplicated or reproduced by any means, whether physical, electronic or otherwise without prior written consent from Atlantic Technology International, Corp.

  • Page 3: Unpacking The Speakers

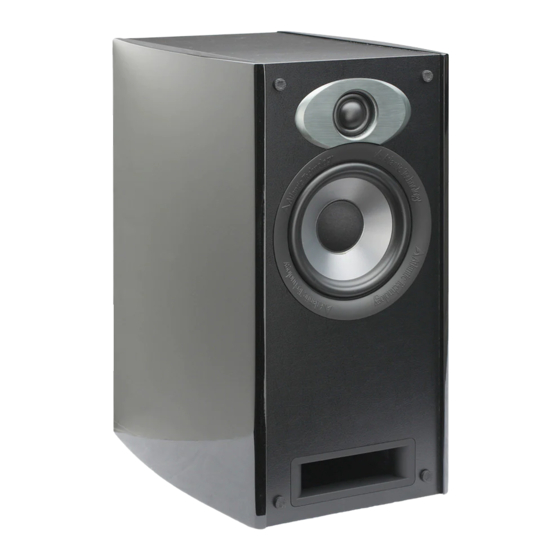

    Unpacking and Assembly Instruction Manual Unpacking the Speakers Figure 2 Use care when unpacking the speakers. Since the grilles are packed off the AT-2 High-performance speakers, be particularly careful of the driver elements as you unpack and loudspeaker move the speakers. Remember to keep the original boxes and packing mate- rial, in the unlikely event the speakers need servicing, or if you move.

  • Page 4: Placement

    Like all Atlantic Technology speakers, the AT-2 is tonally “voiced” to mix and sonic and visual locations. match with our other models. The 4400 C or 6200e C both make excellent Using the AT-2 in a 2-channel Music System center channel speaker companions to the AT-2 LRs in a home theater system.
  • Page 5 Speaker Placement Instruction Manual Speaker Placement for Home Theater Front Speaker Array should be within 18” vertical height of each other. Left Right Center Surround Speakers Subwoofer should be placed directly to the sides of the seating area and approximately Subwoofer 3 feet (1 meter) above the listener’s...

  • Page 6: Connecting Your Speakers

    Placement AT-2 High Performance Loudspeaker with H-PAS™ Technology Connecting Your Speakers Bi-amp Connection We recommend that you connect your system using high quality dual conductor stranded wire of 16 gauge or heavier, for lengths up to 25 feet Remove terminal straps. (See figure 7 opposite) (8m) .

  • Page 7: System Wiring

    System Wiring Instruction Manual System Wiring Be sure to connect red (+) on the speaker to red (+) on the amplifier and black (–) on the speaker to black (–) on the amplifier. Figure 6 Conventional Connection TERMINAL STRAPS IN PLACE INPUT INPUT LEFT...

  • Page 8: High Frequency Energy Control

    Connecting Your Speakers AT-2 High Performance Loudspeaker with H-PAS™ Technology High Frequency Energy Control Caring for your Speakers This control changes the relative output level of the tweeter. It has been Clean your cabinets using a soft, lint-free cloth. If you wish, you can slightly moisten the cloth with plain water.

  • Page 9: Specifications

    23 lbs (10.4 kg) ea. *Graphite Loaded Homopolymer Specifications are those in effect at the time of printing. Atlantic Technology reserves the right to change specifications or appearance at any time without notice. All other trademarks are the property of their respective owners.
  • Page 10 Specifications AT-2 High Performance Loudspeaker with H-PAS™ Technology...
  • Page 11 Notes Instruction Manual...
  • Page 12 343 Vanderbilt Avenue Norwood, MA 02062 (781) 762-6300 www.atlantictechnology.com 015-0002...
