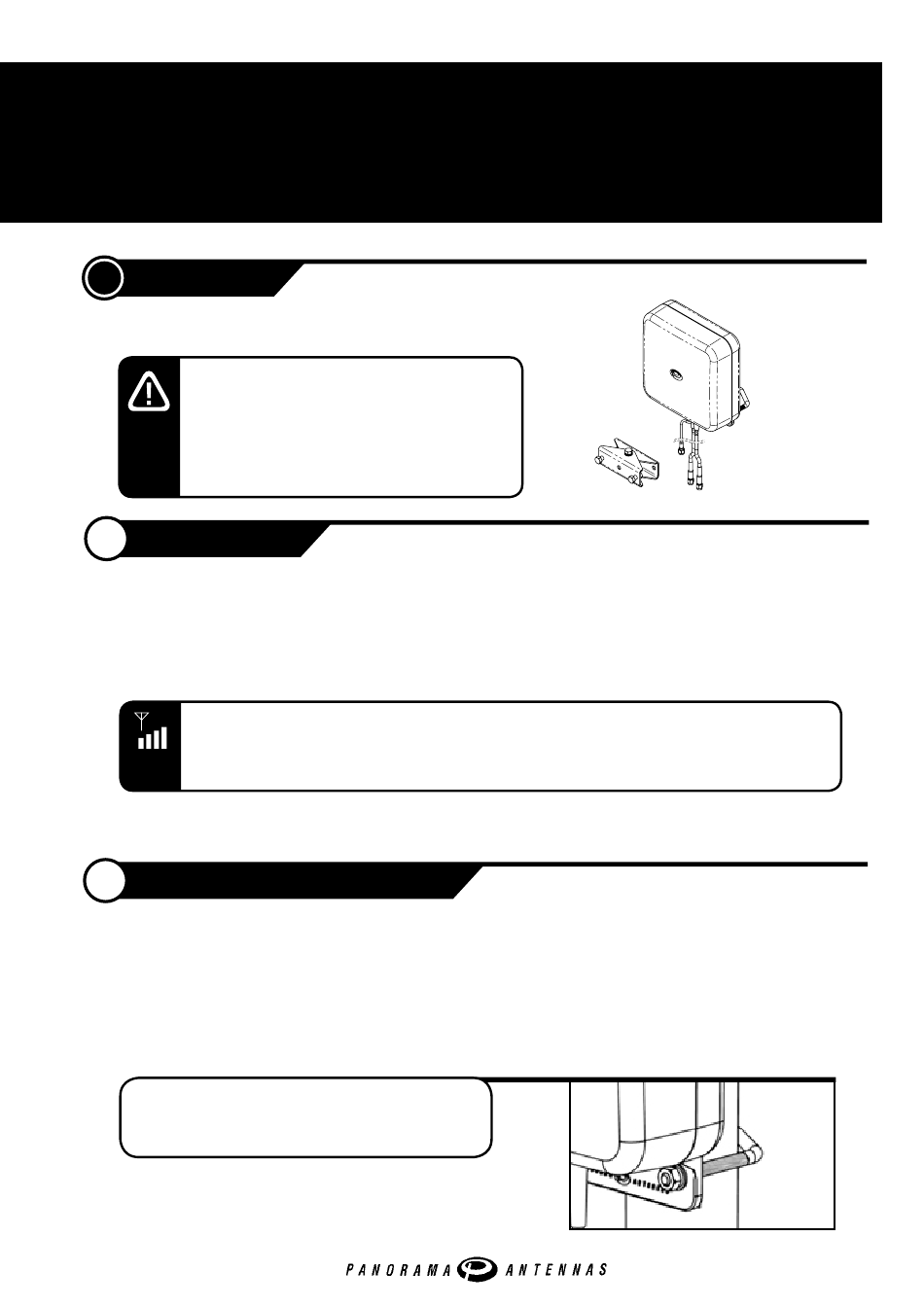

Panorama Antennas WMMGG-7-27 Mounting Instructions

Mounting Instructions
WMMGG-7-27
Introduction

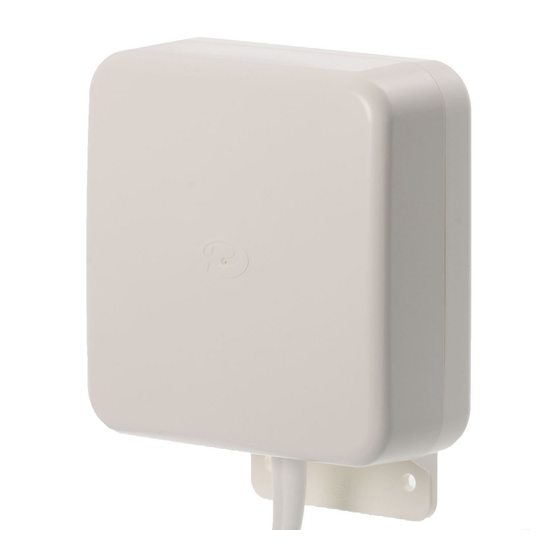

The WMMGG-7-27 is a MiMo 2G/3G/4G antenna incorporating an integrated
active GPS/GNSS antenna.
Electrical Safety Note
This product contains an active GPS/GNSS antenna (part
number SR8-HG26). Rated voltage: 3-5VDC rated current:
20mA maximum.
The supply to this device must be provided with overcurrent
protection of 1A maximum.
1.
Select Position
For a good installation the antenna should be directed towards the strongest network signal. In order to achieve this follow the guide
below.
a. Connect the antenna to your data card or modem with the antenna adapter and coaxial cable provided.
b. Ensure that your device is connected to the network and displaying the signal strength indicator.
c. With the antenna at selected location, rotate it in approximately 45 degree steps – in each position, you may need to wait for up to
one minute to allow the signal strength indicator to update.
Note
Signal strength indication may be displayed either: a. Graphically with bars, (where more bars is a better signal), or
b. As a signal level value in dBm (e.g. -80) - in this case, the lower the negative number, the better the signal, (i.e. -71 is
stronger signal than -83).
The GPS/GNSS antenna requires the antenna to maintain the correct vertical orientation (with cables at the base) and the antenna should
be mounted so that the GPS/GNSS antenna located at the top of the antenna housing has a clear and un-obstructed view of the sky.
2.
Mounting the Antenna Externally
Ensure that the selected mounting location can be safely accessed with the equipment that you have available and mount the antenna so that
it has at least 1 metre (3.3') of clearance from all obstructions if possible. The antenna should not be mounted directly on to metal walls or
backing on to metal masts or poles. If the antenna must be mounted to such a surface it must be mounted at the lip of the roof or the very
top of the pole such that the body of the antenna is elevated clear of the metal surface. To maintain GPS/GNSS performance the antenna
should not be mounted under roof structures or overhangs.
A. Mount the antenna
The antenna is supplied with weatherproof mounting hardware for wall or mast mounting and should be fitted with the cable entry at the
bottom.
Mast Mounting
The clamp assembly allows fitting to masts of between 20-50mm
(0.8" – 2") diameter.
DRG.
2016 A4 THIS DOCUMENT MUST NOT BE COPIED OR
WMMGG-7-27-5SP
C
DISCLOSED TO A THIRD PARTY WITHOUT THE
No.
WRITTEN CONSENT OF PANORAMA ANTENNAS LTD.
A
155
B
70
92
GPS/GNSS SMA
C
TWIN CS29 LOW
PLUG
LOSS CABLE.
6m RG174
5m LONG.
CABLE
SMA PLUGS
D
POLE
MOUNTING
BRACKET
50 NOMINAL
CLAMPING M6 'V' BOLT
86
=70.0=
E
WALL MOUNT BRACKET
(SUPPLIED LOOSE)
PRODUCT/ASSEMBLY
ELEVATED ANTENNAS
F
MATERIAL
01019 B INITIAL ISSUE 18/02/2016 AR
FINISH
PCN REV DESCRIPTION DATE DRAWN
REVISIONS WEIGHT 1000g
DO NOT DENOTES LATEST DENOTES CRITICAL
PROJECTION
SCALE ISSUE CHANGES VALUE
TOLERANCES UNLESS OTHERWISE STATED
0 DEC. PLACE ±0.5 2 DEC. PLACES
1 DEC. PLACE ±0.2 ANGULAR
75
15
ANTENNA HOUSING.
WHITE LURAN
S777K (A.S.A.).
UV STABILISED.
M6 FIXINGS VIA
2 HOLES 7.0
36
ISO VIEW
SCALE 1:3
DESCRIPTION
M'BAND MIMO WALL MNT + GPS/GNSS
N/A
APPROVED D.O.CHECK SCALE DIMENSIONS
JJ IC 1:3
N/A
P A N O R A M A A N T E N N A S
SHEET 1 OF 1
±0.1
±1°
SW3-687 - Document Version 1.0
IN mm
