Aqua-Marina ISLAND BT-I250 User Manual

Inflatable air platform
Hide thumbs Also See for ISLAND BT-I250:
Table of Contents

Advertisement

Quick Links

Download this manual
EN
INFLATABLE
AIR PLATFORM
User's Guide
w w w . a q u a m a r i n a . c o m

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ISLAND BT-I250 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Aqua-Marina ISLAND BT-I250

Summary of Contents for Aqua-Marina ISLAND BT-I250

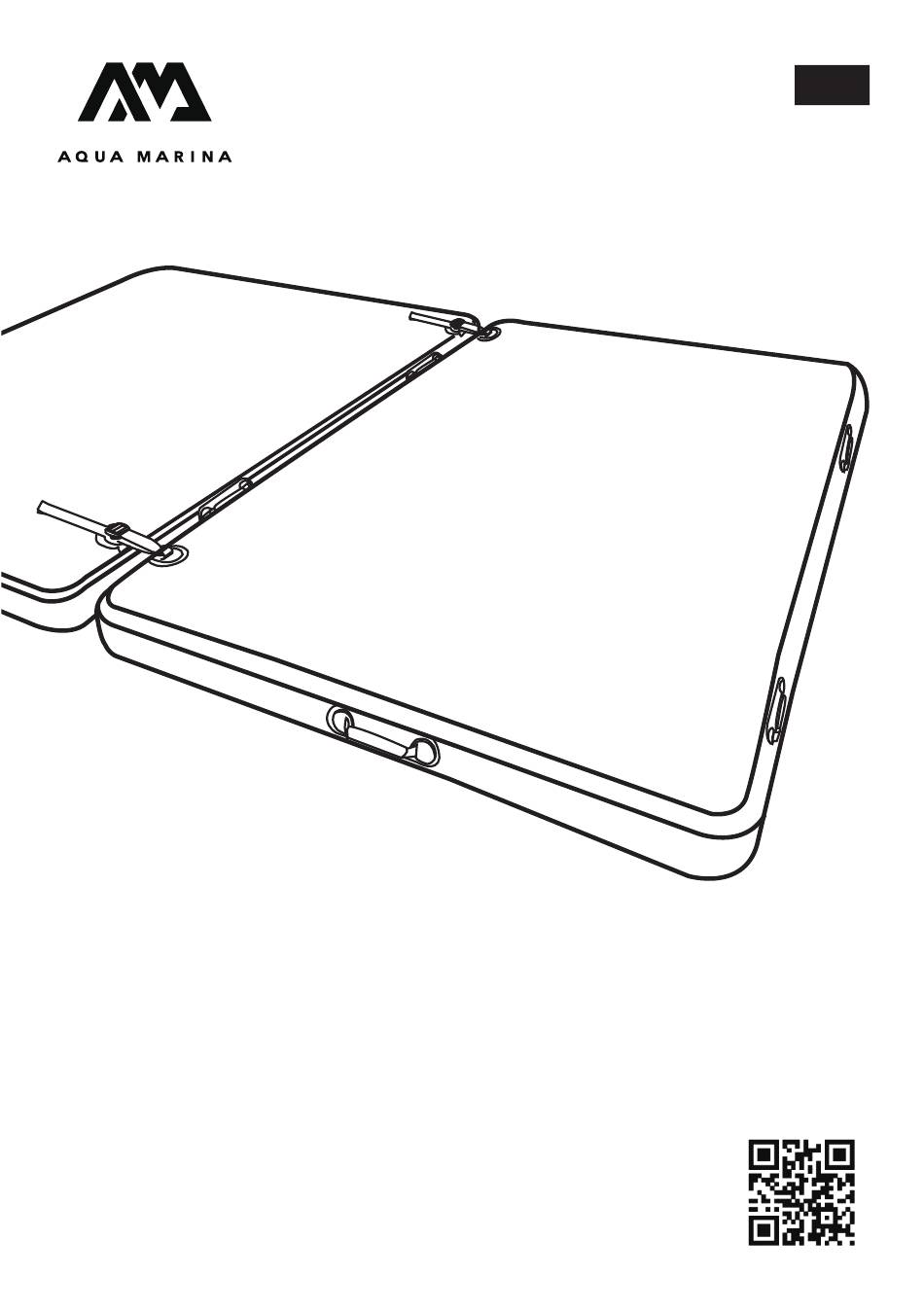

  • Page 1 INFLATABLE AIR PLATFORM User’s Guide w w w . a q u a m a r i n a . c o m...

  • Page 2: Watersports Safety Code

    For your own safety and that of your equipment, make sure to take the following precautions. Failure to follow warning notices and instruction may result in property damage, serious injury or WARNING death. WATERSPORTS SAFETY CODE Watersports are fun and challenging but involve inherent risks of injury or death. To increase your enjoyment of the sport and to reduce your risks, use common sense and follow these rules: Before you start...

  • Page 3: Your Equipment

    Your equipment • Check all equipment prior to use. Inspect your product for missing, defective or worn parts. • Always check for proper inflation before each use. Temperature and environmental changes can cause changes in tube pressure. Using the product over or under inflated is dangerous and can cause damage to the product, voiding the warranty.

  • Page 4: Warnings And Cautions

    WARNINGS AND CAUTIONS 265kg 584lbs √ NO PROTECTION AGAINST DROWNING AUCUNE PROTECTION CONTRE LA NOYADE KEIN SCHUTZ GEGEN ERTRINKEN SIN PROTECCIÓN CONTRA EL AHOGAMIENTO SWIMMERS ONLY LES NAGEURS SEULEMENT 8psi / 0.55bar NUR FÜR SCHWIMMER SÓLO LOS NADADORES...
  • Page 5 INSTRUCTION FOR ASSEMBLING AND DISASSEMBLING 1. Unfold the Air Platform Get yourself a clean and flat area to unfold the Aqua Marina air platform and lay it flat. In most cases, you will need at least 9㎡ to inflate the air platform. IMPORTANT: Careful thought must be given to the setup area regarding the size of the product.
  • Page 6 Inflate Faster With Less Effort • Use full range of the pump cylinder while keeping your arms extended. • Bend your knees and use the body weight. SINGLE DOUBLE ACTION ACTION 1) The pump can be switched between double action mode and single action mode. 2) After inflation, return the valve cover and tighten in clockwise direction to lock in place.

  • Page 7: Folding Steps

    Folding Steps For ISLAND (BT-I250) 1) Completely deflate the ISLAND board by pushing out any remaining air, or use the pump on "deflate" position for faster deflation. 2) Tri-fold the board from the longer side. 3) Fold at one fourth of the length of the tri-folded board to the middle (refer to picture 3). 4) Fold in half.
  • Page 8 3. Inflation Tips and Precautions • The platform can be inflated either with our hand pump or an electric pump. Electric Pumps can be used to inflate the platform up to 80-90% of the required air pressure. However, the remaining pressure required should be reached by using our hand pump to avoid over-inflation.

  • Page 9: Operation

    OPERATION 1) This item is an inflatable air platform designed to be used on the water. 2) Two separate air platforms could be connected by using the straps (come with the package) to connect the built-in D-rings on the board, as shown in the picture (FIG.1). Make sure that the connection is tight and there is NO gap greater than 25mm (3/4”) between the platforms.
  • Page 10 2. Re-install or replace a valve 1) Completely deflate your platform. 2) Undo the dust cap and insert the valve wrench into the valve and twist counterclockwise to remove the valve. Rubber Ring 3) Check the rubber ring to make sure that it is in the correct position, tight around the valve and there is no debris in the way.

  • Page 11: Small Repairs

    LEAK DETECTION AND REPAIR About PVC Your new platform is made from a durable double stitch PVC. If a tear or puncture does occur, PVC is very easy to repair. Repairs are easily done with your included patch kit. Read the following paragraphs for leak detection and repair tips. Air Leak Detection If your platform is losing air pressure, not caused by colder temperatures, check the platform for leaks, starting with the valve.

  • Page 12: Warranty

    WARRANTY Aqua Marina warrants this product to be free from major defects in material or workmanship to the original purchaser for a period of one (1) year from the date of purchase. This warranty is subject to the following limitations. 1.

This manual is also suitable for:

Island+ bt-i250p
