- Page 1 PROFESSIONAL CAMERA SUPPORT USER’S MANUAL & Maintenance...
- Page 3 & ccessorIes product lIne CARTONI ® All rights reserved ©...

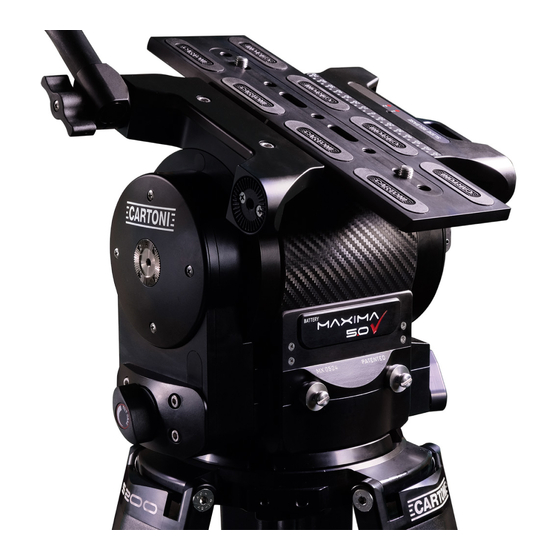

- Page 5 The large sliding camera plate is compatible with Arri, Sony and O’Con- nor slides. The head comes with a telescopic pan bar and a short front pan bar. With the classic Mitchell base the MAXIMA 5.0 interfaces with all flat base Mitchel tripods and platforms.
- Page 6 2. o peratIng lements ⓯ ❿ ⓳ ❶ ❷ ❸ ⓫ ❹ ❺ ❻ ❼ ❽ ❾ ⓲ Slide lock lever Illuminated bubble level Horizontal lock lever Illuminated bubble level Counterbalance selector and display light button Pan lock lever Digital display Pan drag selector Extensible handle Tilt lock lever...
- Page 7 ⓭ ⓬ ⓱ ⓴ ⓮ � ⓰ � Extensible pan handle Handle attachment lever Short handle Handle attachment rosette Short handle attachment lever Safety button slide lock lever Short handle attachment rosette Tilt drag selector Camera plate Tie down knob Tool box attachment Battery housing...
- Page 8 Open the tripod to the desired height and lock all the safety knobs. Place the MAXIMA 5.0 Fluid Head on the tripod base and rotate until it matches the steel notch; tighten the Head firmly by screwing in the knob (21) underneath the flat base. Check the illuminated bubble level (7) and modify the legs angle if needed.
-
Page 9: Specifications
Holding the pan bar (11) firmly, disengage lever (2) to green position and find the correct center of gravity (CG) sliding the Camera assem- bly fore-and-aft. Lock the slide lock lever (1) all the way in. Set the counterbalance system by turning the counterbalance selec- tor (3) to the appropriate tension. -
Page 10: Maintenance
(22). 6. W arranty All CARTONI Fluid Heads & Pedestals have a free of charge three (3) year warranty. Register your product at www.cartoni.com within 30 days from date of first purchase/invoice to receive further two (2) year warranty for the unsurpassed free five (5) year warranty. - Page 11 This warranty does not apply to any CARTONI product that has been damaged in shipping or handling, abused, misused, operated contrary to instructions for use, neglected, normal wear or tear, modified or changed in design or construction or serviced by unauthorized parties.
