Summary of Contents for Cartoni Lambda 25

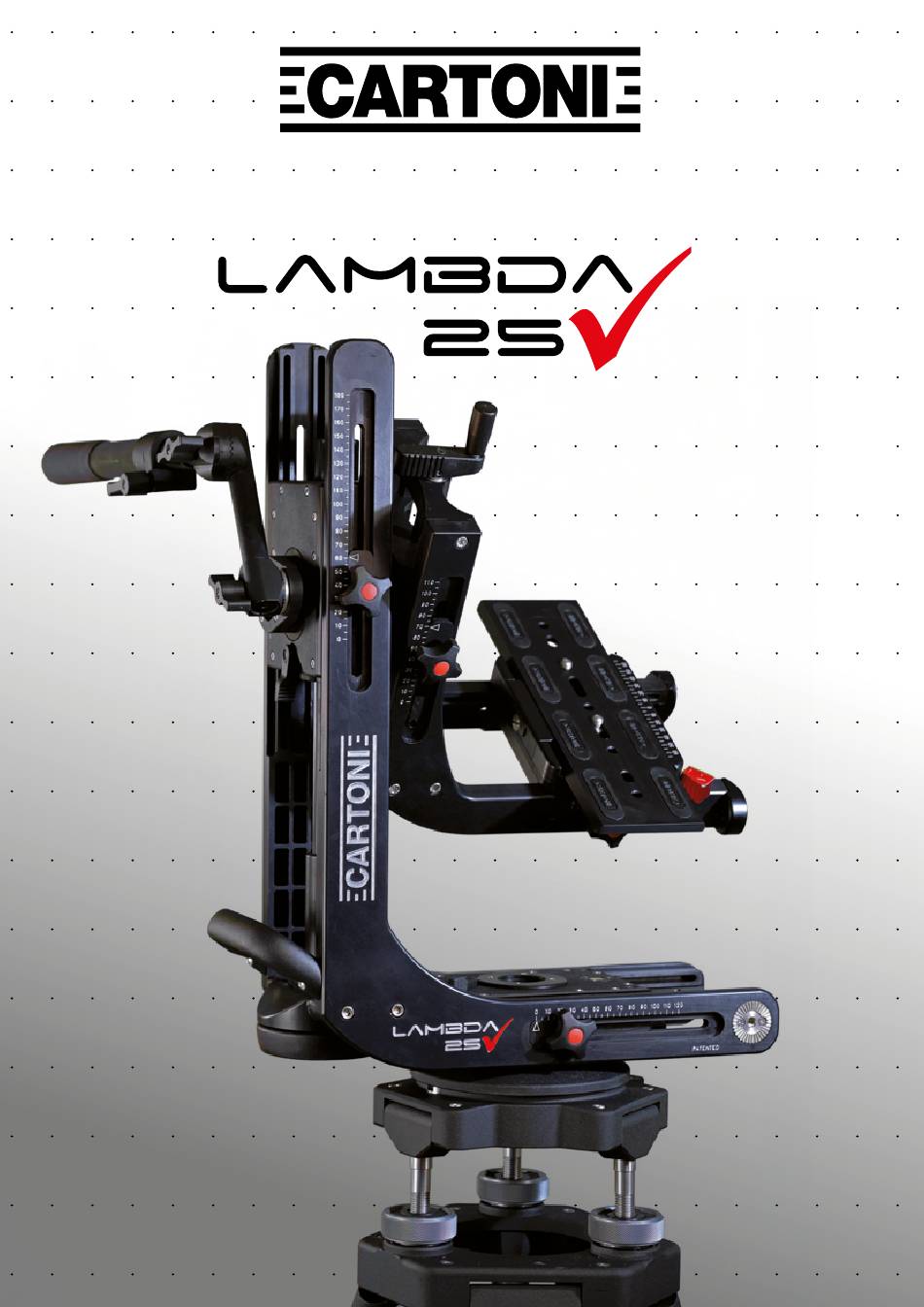

- Page 1 PROFESSIONAL CAMERA SUPPORT USER’S MANUAL & Maintenance...
- Page 2 Steering P70 User’s Manual Page 6 CARTONI ® / All rights reserved ©...
- Page 3 LAMBDA 25 1. INTRODUCTION 2. LAMBDA 25 - OPERATING ELEMENTS 3. PROCEDURES 4. LAMBDA 25 - SPECIFICATIONS LAMBDA 25 - 3 AXIS 5. 3 AXIS - OPERATING ELEMENTS 6. HOW TO MOUNT THE 3 AXIS 7. CAMERA SET-UP WITH 3 AXIS 8.

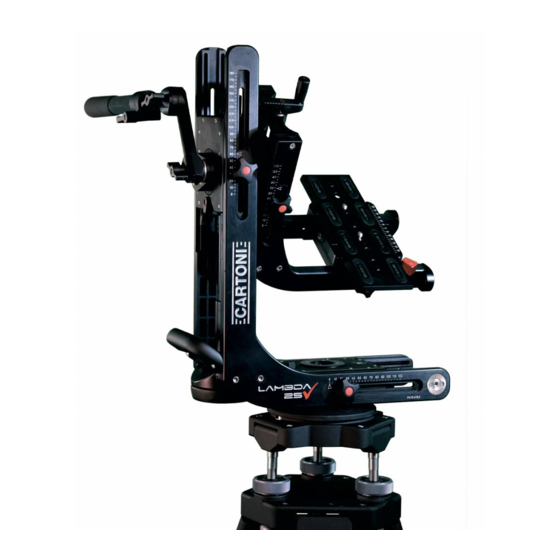

- Page 4 360° rotation. The patented CARTONI Fluid drag system is continuous on both axis. The LAMBDA 25 Head can be mounted on any classic support as Tripods or Dollies or used in under- slung position from Cranes, Jib arms and Dollies.
- Page 6 • Install the LAMBDA 25 on the support (tripod, crane, dolly) after locking all the safety knobs. • Place the LAMBDA 25 Fluid Head on the Mitchel base and rotate until it matches the steel notch; tighten the Head firmly by screwing in the fixing nut (1) underneath the flat base.
- Page 7 4. LAMBdA 25 - s pecIfIcAtIons Minimum payload 0 Kg 0 lbs Maximum payload 25 Kg 55 lbs Weight 12,0 Kg 26.5 lbs Bowl diameter Flat base Fluid control Continuous Counterbalance Pan range 360° Tilt range 360° Temperature range -40 / +60 °C...
- Page 8 LAMBdA 25 - 3 AxIs 5. 3 AxIs - o perAtIng LeMents Safety lever Sliding base Main pan bar Camera mounting bracket crank Camera plate Camera mounting bracket Tilt lock lever Pan lock lever Rosette Spin lock lever Vertical slide...
- Page 9 • Remove six M6 Allen screws (26) with 5mm Allen screw key and remove the Camera mounting bracket (18). • Install the LAMBDA 25 3 Axis and fix it to the LAMBDA 25 frame tightening six M6 Allen screws (26). • Install the Camera mounting bracket (18) and fix it to the 3 Axis with six M6 Allen screws (27).
- Page 10 (6) all the way in to lock. • Set the LAMBDA 25 horizontal slide (2) and vertical slide (24) at needed extension in order to prevent the Camera and its accessories to interfere with the LAMBDA 25 frame during the 360°...
- Page 11 10. w ArrAnty All CARTONI Fluid Heads & Pedestals have a free of charge three (3) year warranty. Register your prod- uct at www.cartoni.com within 30 days from date of first purchase/invoice to receive further two (2) year warranty for the unsurpassed free five (5) year warranty.
- Page 12 11. A & p ccessorIes roduct For the complete Accessories list & Product line please visit CARTONI’s official website www.cartoni.com. Every product has an updated list of compatible items sorted by groups, with descriptions and technical data. PROFESSIONAL CAMERA SUPPORT CARTONI S.p.A...
