Summary of Contents for Cartoni Master MK2V

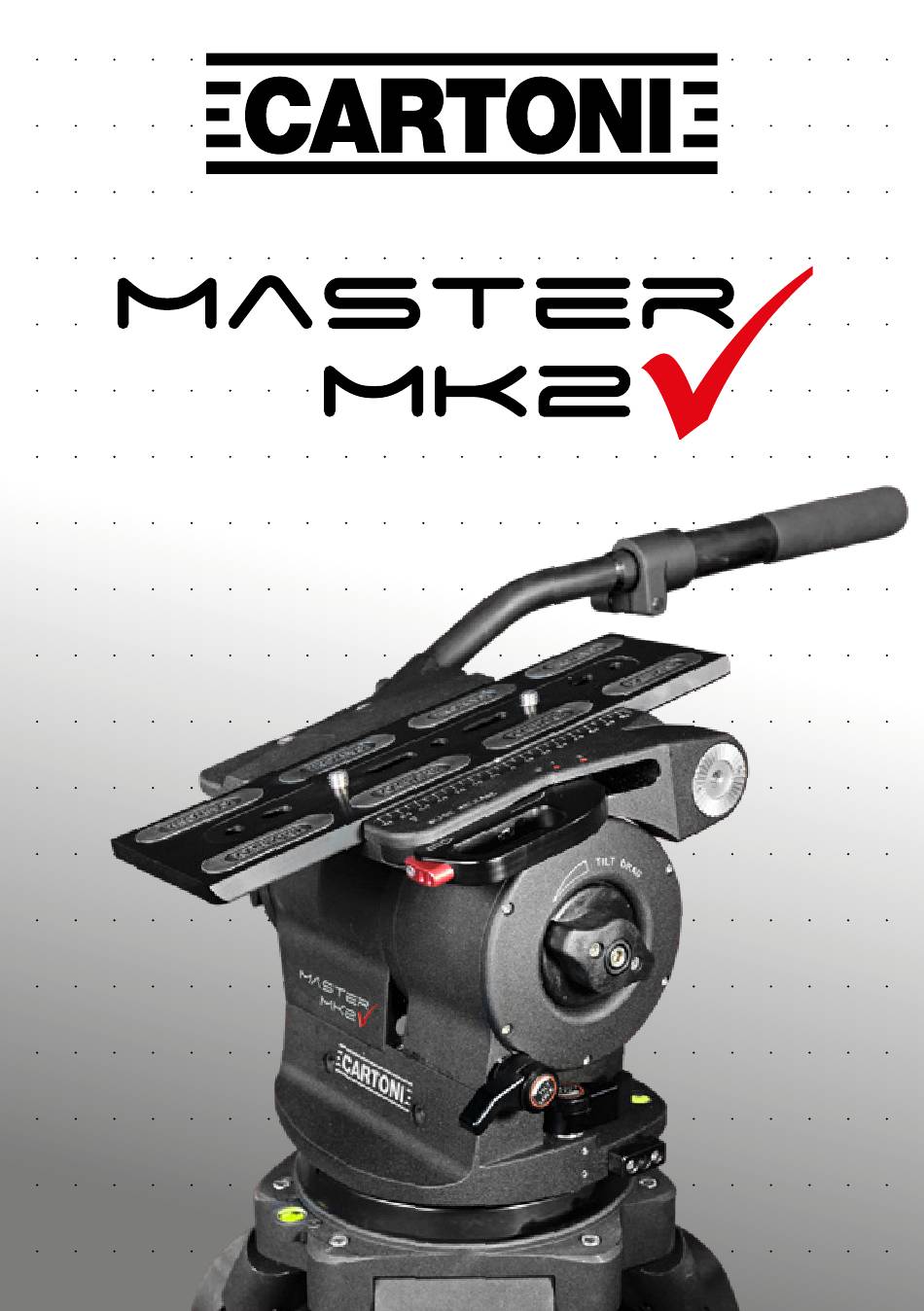

- Page 1 PROFESSIONAL CAMERA SUPPORT USER’S MANUAL & Maintenance...
- Page 3 & ccessorIes product lIne CARTONI ® All rights reserved © Manual Version: 1.0 Issue date: June 2019...

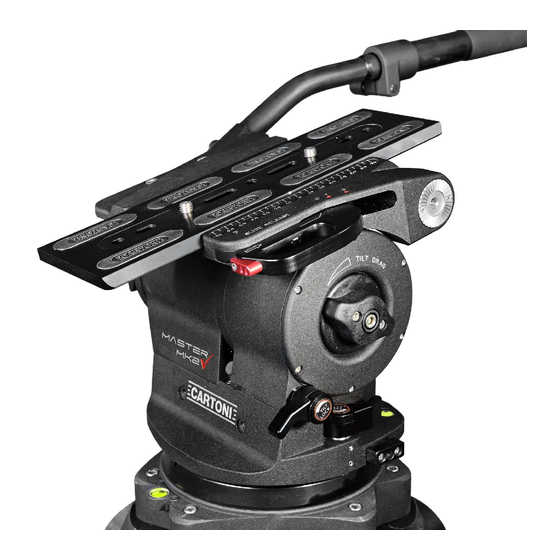

- Page 4 1. I ntroductIon The compact and versatile MASTER MK2 is a CARTONI Fluid Head de- signed for ENG & EFP, Broadcast and Digital Cinematography fully loaded Cameras with all of the trimmings. The MK2 can counterbalance from small Cameras weighing 3 Kg (6.6 lbs) all the way to 30 Kg (66 lbs).
-
Page 5: Operating Elements
Verify that the Camera payload (including lenses and ac- cessories) is lower than the maximum capacity of the MAS- TER MK2 Fluid Head; Before installing the Camera make sure that the MASTER MK2 is in good conditions and bares no evident damages. 2. - Page 6 ❼ ❾ ❽ ❿ ⓫ ⓬ ⓭ Camera plate Safety button slide lock lever Slide lock lever Tilt drag selector Illuminated bubble level Pan lock lever Tilt lock lever...
- Page 7 Counterbalance selector Illuminated bubble level and display light button Battery housing Digital display ⓮ ⓱ ⓰ ⓯...
- Page 8 3. p rocedures Open the Tripod to the desired height and lock all safety knobs. Place the MASTER MK2 Fluid Head on the Tripod base and rotate until it matches the steel notch; tighten the Head firmly by screwing in the knob (6) underneath the flat base. Check the illuminated bubble level (11) and modify the legs angle if needed.
-
Page 9: Specifications
Holding the pan bar (1) firmly, disengage lever (4) to green position and find the correct center of gravity (CG) by sliding the Camera as- sembly fore-and-aft. Lock the slide lock lever (9) in position “0”. Set the counterbalance system by turning the counterbalance selector (14) to the appropriate tension. -
Page 10: Maintenance
(16). 6. W arranty All CARTONI Fluid Heads & Pedestals have a free of charge three (3) year warranty. Register your product at www.cartoni.com within 30 days from date of first purchase/invoice to receive further two (2) year warranty for the unsurpassed free five (5) year warranty. - Page 11 This warranty does not apply to any CARTONI product that has been damaged in shipping or handling, abused, misused, operated contrary to instructions for use, neglected, normal wear or tear, modified or changed in design or construction or serviced by unauthorized parties.
- Page 12 PROFESSIONAL CAMERA SUPPORT CARTONI S.p.A Via di Portonaccio, 33/B - 00159 Rome (Italy) Phone +39 06 4382002 Fax +39 06 43588293 Email: cartoni@cartoni.com www.cartoni.com...
