PROFESSIONAL CAMERA SUPPORT
USER'S MANUAL & Maintenance

Advertisement

loading
Need help?

Need help?

Do you have a question about the Master 25 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Cartoni Master 25

Summary of Contents for Cartoni Master 25

  • Page 1 PROFESSIONAL CAMERA SUPPORT USER’S MANUAL & Maintenance...
  • Page 3 & S afety ntrodUctIon peratIng elementS rocedUreS pecIfIcatIonS aIntenance arranty & cceSSorIeS prodUct lIne CARTONI ® All rights reserved © Manual Version: 2.3 Issue date: May 2020...

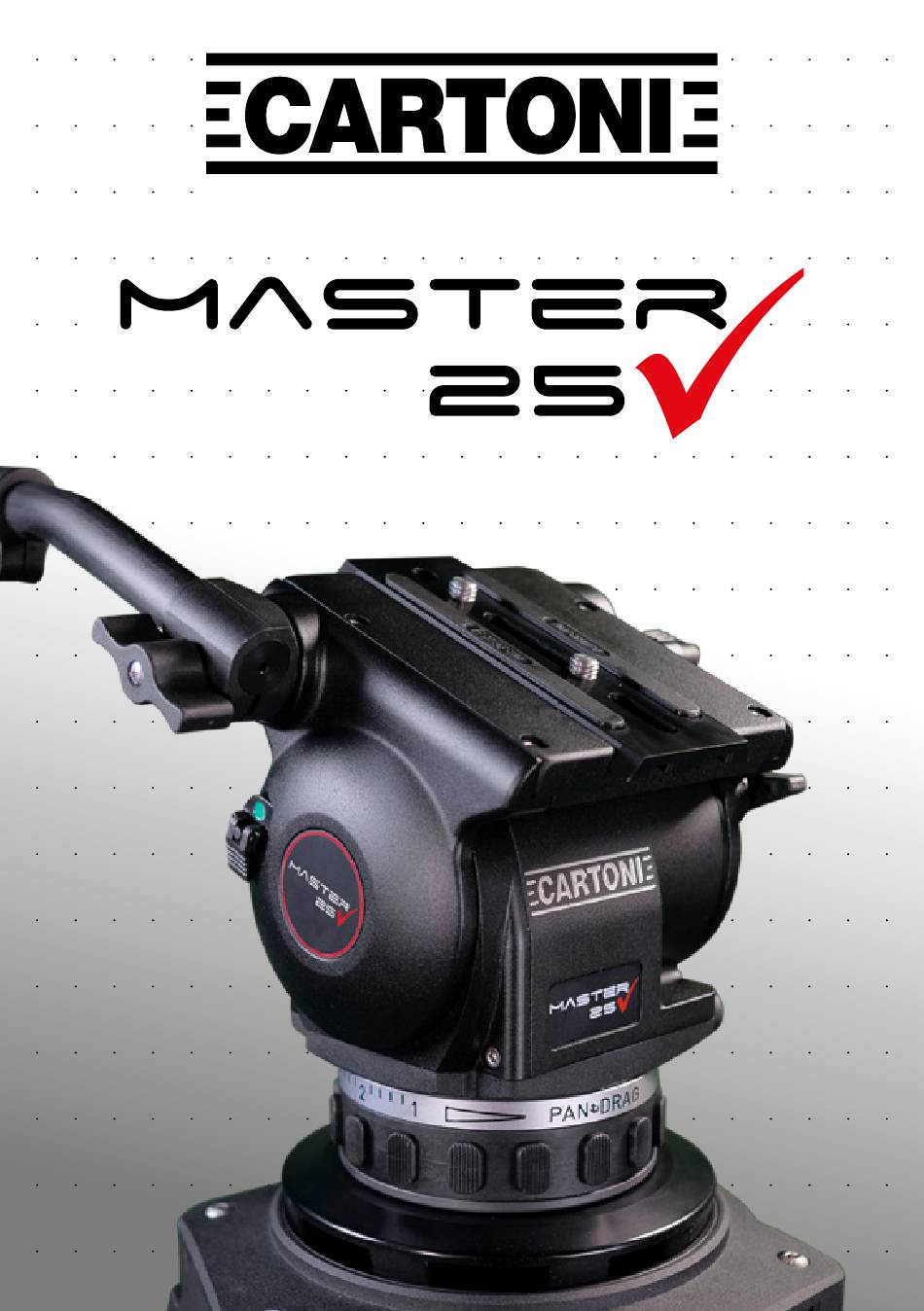

  • Page 4 OB/ENG/EFP applications, with a payload capacity of up to 30 kg (66 lbs). The MASTER 25, weighs only 4.4 kg (9.7 lbs) thanks to the extensive use of extremely lightweight magnesium alloys, features a tilt range of +/-90°...
  • Page 5 That means the Head can precisely track slow moving objects and whip pan in an instant. Before using the product read this user manual. Before installing the Fluid Head on the Tripod check the Tripod sta- bility. Verify that the Camera payload (including lenses and accessories) is lower than the maximum capacity of the Fluid Head.

  • Page 6: Operating Elements

    2. o peratIng lementS ❷ ❶ ❽ ❹ ❸ ❺ Camera plate Sliding Camera platform Pan bar attachment ❼ Pan bar extension Pan drag selector Tie down shaft removable Tie down knob ❻ Horizontal lock lever...
  • Page 7 ❾ ⓭ ⓲ ⓲ ⓬ ⓰ ⓫ ⓳ ⓯ ⓱ ⓮ ❿ Tilt brake lever Pan brake lever Illuminated spirit level Pan Bar Counterbalance selector Slide lock release button Level Bubble Light button Sliding platform lock Clamping screws Tilt drag selector Battery tray...
  • Page 8 3. p rocedUreS Place the MASTER 25 on your Tripod by loosening the tie-down knob (7) under the Fluid Head and level using the level bubble (15). In low light conditions, press button (17) for light. Connect the Pan bar (11) to the Fluid Head tightening the lever (3) on the Pan bar attachment and select your desired operating angle.
  • Page 9 Unlock the Pan brake lever (10) and set the Fluid drag control by ad- justing selectors (5 & 14). The MASTER 25 can be attached to most of the sliders via a 3/8” treaded hole under the Head. The Head base also includes 4 bolt thread for direct interface to most of the Pedestals.

  • Page 10: Specifications

    -40 /+60 °C -40 /+140 °F 5. m aIntenance With indoor use - when needed - just clean the MASTER 25 and Tripod with a soft cloth. Dirt accumulated during storage may be removed using a brush or Air spray.

  • Page 11: Warranty

    Disconnect the illuminated spirit level battery during long term storage. 6. W arranty All CARTONI Fluid Heads & Pedestals have a free of charge three (3) year warranty. Register your product at www.cartoni.com within 30 days from date of first purchase/invoice to receive further two (2) year warranty for the unsurpassed free five (5) year warranty.
  • Page 12 All freight of product to CARTONI must be prepaid. All implied war- ranties are limited to the time period set forth herein & subject to change without notice. No liability can be accepted for any variation. 7. a & cceSSorIeS prodUct lIne For the complete Accessories list &...
