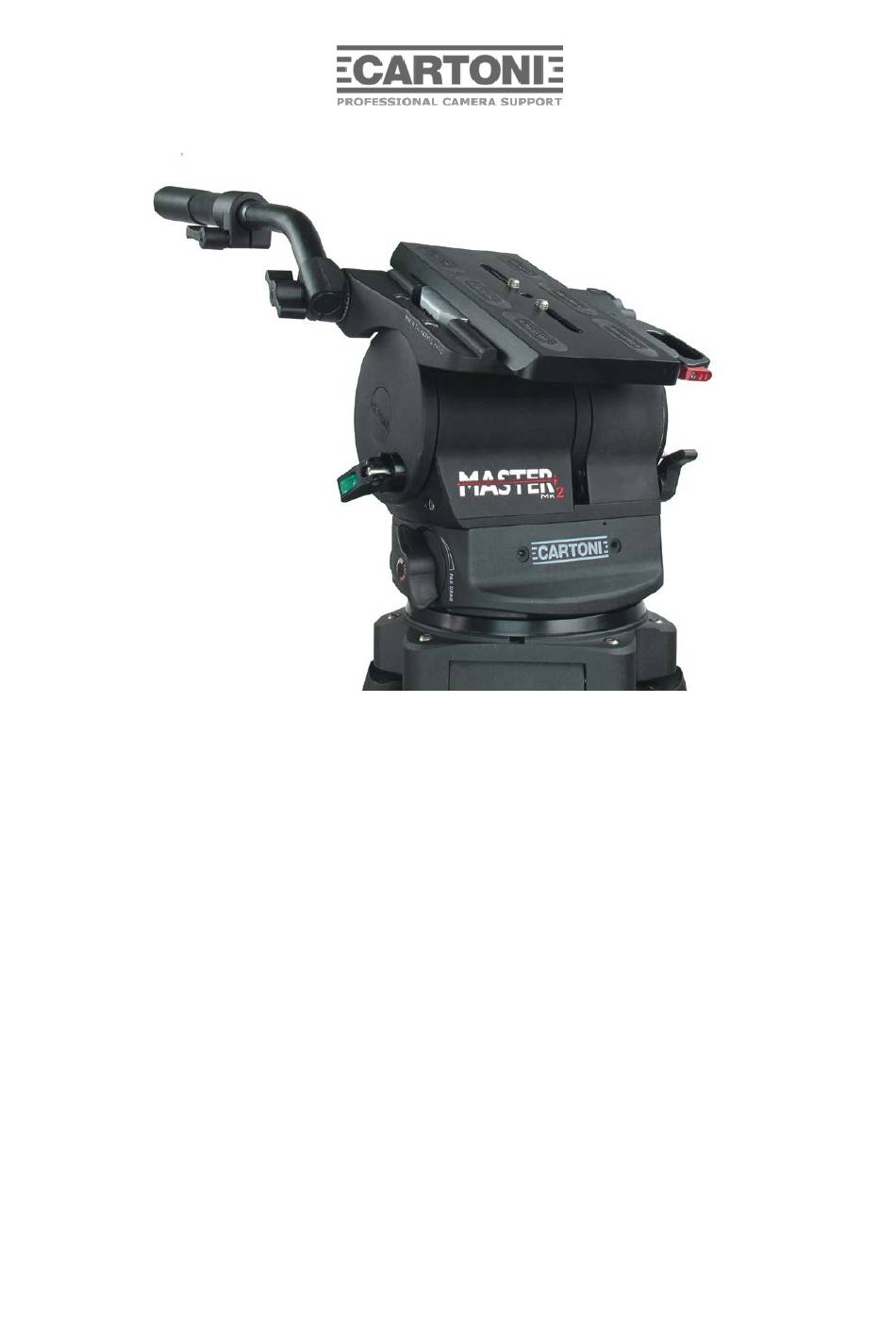

- Page 1 MASTER MK2 FLUID HEAD ’ ANUAL...
-
Page 2: Table Of Contents
CARTONI ® / All rights reserved © Manual Version: 1.0 Issue date: Feb 2019 CARTONI S.p.A Via di Portonaccio, 33/B - 00159 Rome (Italy) Phone +39 06 4382002 Fax +39 06 43588293 Email cartoni@cartoni.com www.cartoni.com Index Introduction ............................. 1 Operating elements ......................... 2 Procedures ............................ -
Page 3: Introduction

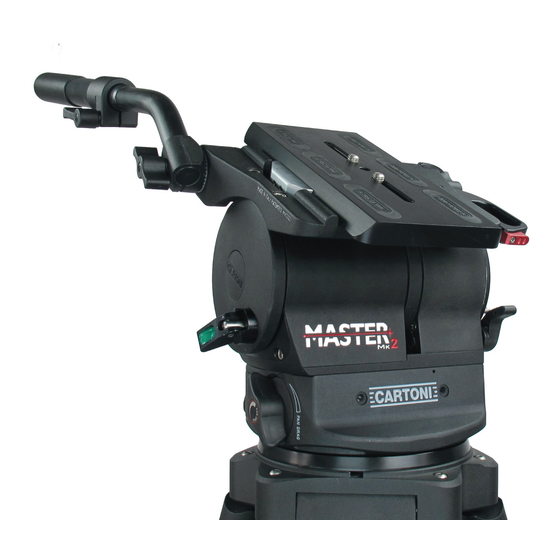

Introduction The new Master Mk2 is the ultimate CARTONI Fluid Head designed most specifically for HD applications, Film, ENG & EFP camera systems. The Mk2 counterbalances very light cameras from 3 Kg (6.6 lbs) all the way to 35 Kg (77 lbs) making the Mk2 suitable from the smallest HDV camera to fully loaded RED, Alexa, F65, C300 (etc) cameras with all of the trimmings. -
Page 4: Operating Elements
Operating elements 1) Pan bar 2) Pan bar attachment lever 3) Pan bar attachment rosette 4) Horizontal lock lever 5) Pan drag selector 6) Tie-down knob... - Page 5 7) Camera plate 8) Safety button slide lock lever 9) Slide lock lever 10) Tilt drag selector 11) Bubble 12) Pan lock lever 13) Tilt lock lever...
- Page 6 14) Counterbalance selector 15) Bubble and display light button 16) Battery compartment 17) Digital display...
-
Page 7: Procedures
Open the tripod to the desired height and lock all the knobs. • Place the Master Mk2 head on tripod base and rotate until it matches the steel notch; tighten the head firmly screwing in the knob (6) underneath the flat base. Check the spirit bubble (11) and modify the legs angle if needed. -
Page 8: Technical Data
With indoor use - when needed - just clean the Head and Tripod with a soft cloth. Dirt accumulated during storage may be removed using a brush or Air spray. CARTONI products main mechanisms are sealed as they are also built for professional outdoor use. -
Page 9: Warranty
Tripods, spreaders, dollies and all accessories are guaranteed one (1) year from the date of first purchase/invoice. CARTONI warrant that the product supplied will - under proper use - be free from defects in workmanship and materials and agrees that it will, at its option, either repair or replace any defective part within duration of warranty from date of first purchase with no labour charge.
