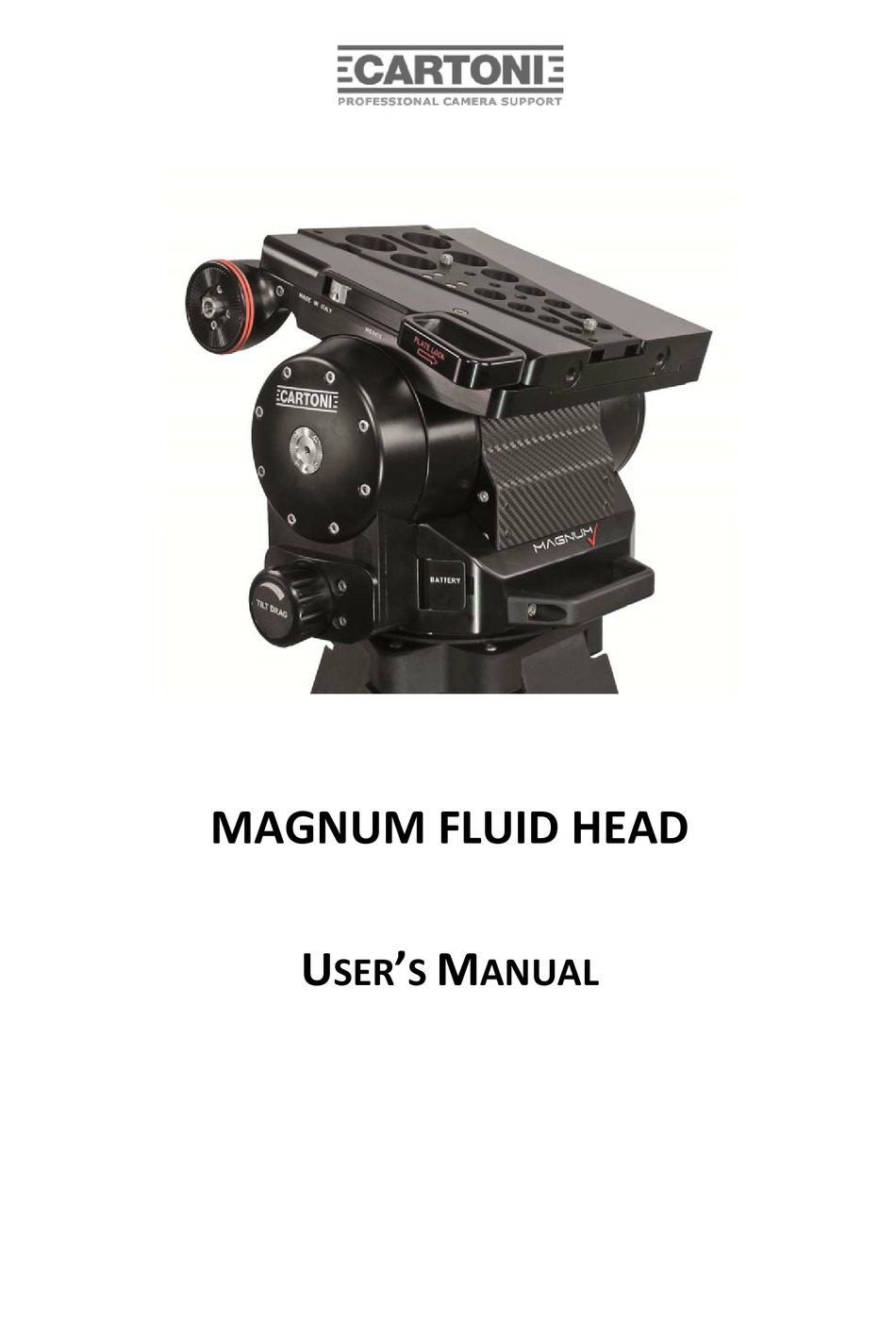

- Page 1 MAGNUM FLUID HEAD ’ S ANUAL ...
-
Page 2: Table Of Contents
CARTONI ® / All rights reserved © Manual Version: 1.0 Issue date: Feb 2019 CARTONI S.p.A Via di Portonaccio, 33/B ‐ 00159 Rome (Italy) Phone +39 06 4382002 Fax +39 06 43588293 Email cartoni@cartoni.com www.cartoni.com Index 1. Introduction ............................ 1 2. Operating elements ........................ 2 3. Procedures ............................ 5 4. Technical data .......................... 6 5. Manteinance ........................... 6 6. Warranty ............................ 7 7. Accessories & product line ...................... 7 ... -
Page 3: Introduction

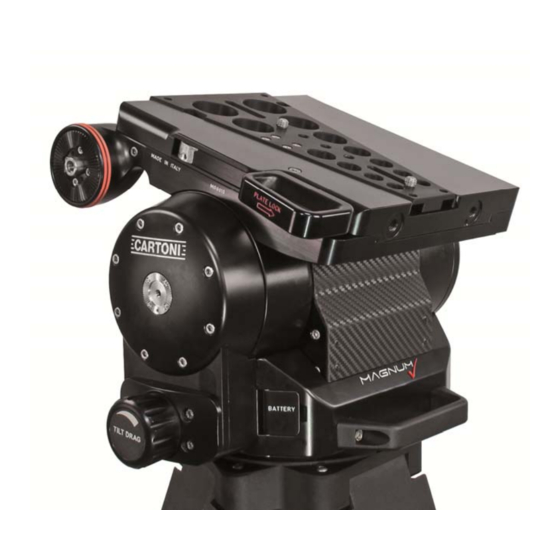

Introduction Designed to support fully decked Studio and OB cameras equipped with long boxed lenses, 7 inch viewfinder or large teleprompter, the Magnum is an extremely compact fluid head incorporating a patented counterbalance system as well as an advanced fluid damping module. Manufactured with an extensive use of ultra‐strong aluminum alloy, the Magnum provides for outstandingly precise movements and consistently high drag output. The unique patented counterbalance system is ideally suited to operate with cameras featuring a high centre of gravity and weighing from 40 to 95 Kg (88 – 209 lbs). Cameras within this range can be perfectly balanced through the entire 130° tilt angle. Calibrated with a variable adjustment connected to a digital readout display, the counterbalance operating knob is conveniently located on the side of the head. The frictionless fluid damping modules also feature a patented design which provides for extraordinary performances over an extended temperature range, with smooth and precise movements together with a linear response in any critical environment. The continuously variable fluid control knobs located on sides of the head have an innovative flip folding design , are easy to reach and are connected to a digital readout which allows the cameraman for a quick set‐up even in low light conditions. The effective control brakes on both, pan and tilt mode are located on the front left side of the control panel and can be operated with a single hand. Two threaded holes for the teleprompter tubes are provided on the front of the sliding platform. The Magnum interfaces directly with any Mitchell flat base Heady Duty Tripod and can be easily mounted on top of all existing Pedestals featuring the 4‐hole bores. The wedge camera plate has an ergonomic quick release and a wide range of centering slide for micrometric balance setting. Before using the product read this user’s manual; Before installing the fluid head on the tripod check the tripod stability; ... -
Page 4: Operating Elements
Operating elements 1) Bubble and display light button 2) Digital display 3) Tilt unlock trigger 4) Tilt lock lever 5) Pan lock lever 6) Pan unlock trigger 7) Tilt drag selector 8) Pan drag selector 9) Bubble level 2 ... - Page 5 10) Camera plate 11) Sliding plate 12) Right pan handle 13) Left extensible pan handle 14) Left pan handle 15) Transport handle 16) Battery 17) Camera plate lock lever 3 ...
- Page 6 18) Sliding plate lock lever 19) Handle attachment lever 20) Extensible handle attachment lever 21) Sliding plate crank 22) Horizontal lock button (On) 23) Horizontal lock button (Off) 24) Tie down knob 25) Counterbalance selector 4 ...
-
Page 7: Procedures
3. Procedures Open the tripod to the desired height and lock all the knobs. Place the MAGNUM head on tripod base and rotate until it matches the steel notch; tighten the head firmly screwing in the knob (24) underneath the flat base. Check the spirit bubble (9) and modify the legs angle if needed. In case of low visibility, press button (1) for bubble light and to activate the digital displays. Light will turn off automatically after approximately 30 seconds. ... -
Page 8: Technical Data
5. Maintenance With indoor use ‐ when needed ‐ just clean the Head and Tripod with a soft cloth. Dirt accumulated during storage may be removed using a brush or Air spray. CARTONI products main mechanisms are sealed as they are also built for professional outdoor use. However, use under rough conditions will require special care. Salt water is very corrosive and can cause extreme damages. In attempt to avoid further damage the Fluid Head should be ... -
Page 9: Warranty
Warranty claims must be submitted – in writing ‐ to the factory for verification or to an authorized distributor/dealer designated by CARTONI. It is the end user’s responsibility when ordering to ensure that the products ordered conform to his requirements. All freight of product to CARTONI must be prepaid. All implied warranties are limited to the time period set forth herein & subject to change without notice. No liability can be accepted for any variation. 7. Accessories & product line ...
