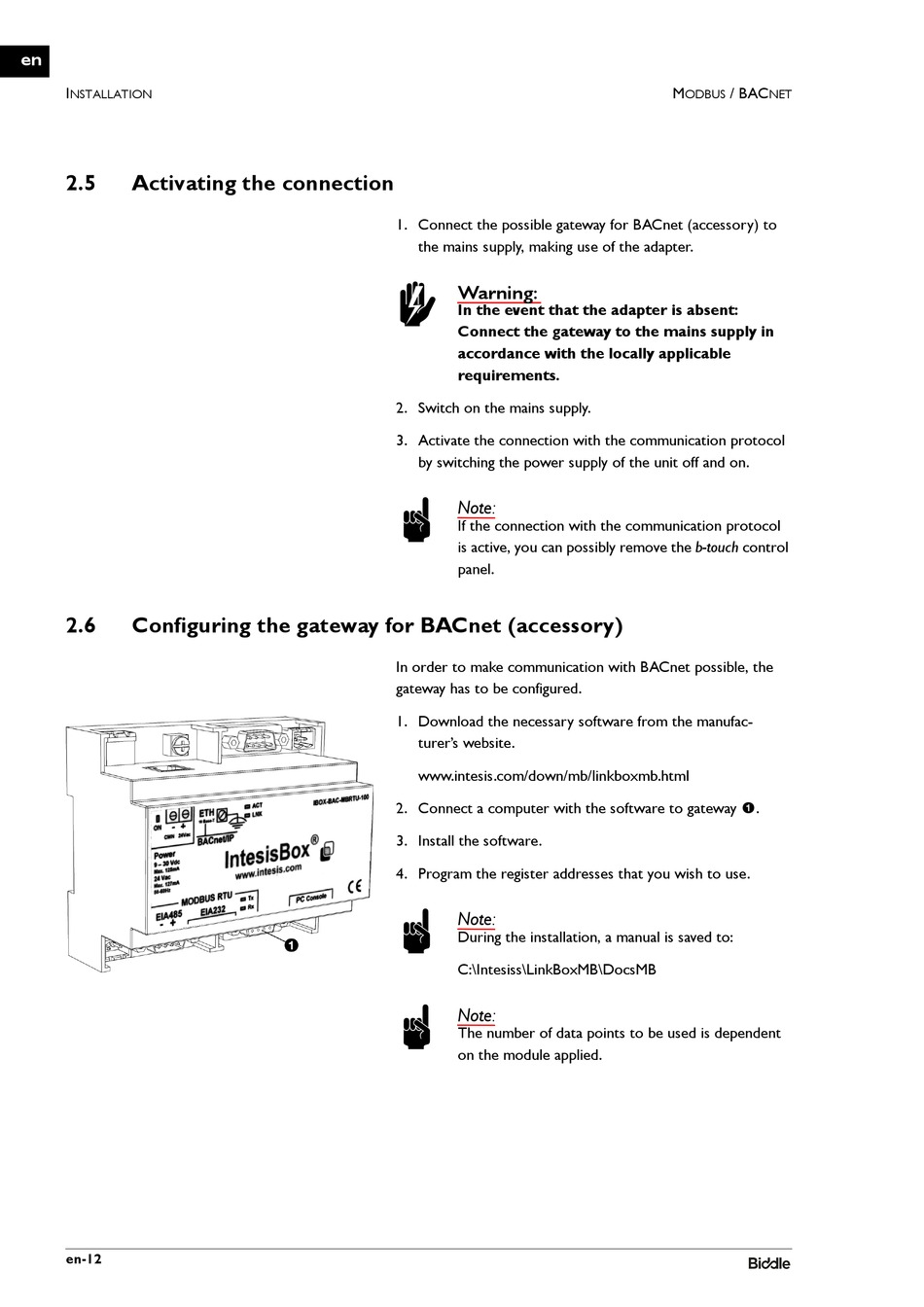

Biddle Modbus Manual page 12

en
I
NSTALLATION
2.5 Activating the connection
2.6 Configuring the gateway for BACnet (accessory)
en-12
1. Connect the possible gateway for BACnet (accessory) to
the mains supply, making use of the adapter.
Warning:
w
In the event that the adapter is absent:
Connect the gateway to the mains supply in
accordance with the locally applicable
requirements.
2. Switch on the mains supply.
3. Activate the connection with the communication protocol
by switching the power supply of the unit off and on.
Note:
n
If the connection with the communication protocol
is active, you can possibly remove the b-touch control
panel.
In order to make communication with BACnet possible, the
gateway has to be configured.
1. Download the necessary software from the manufac-
turer's website.
www.intesis.com/down/mb/linkboxmb.html
2. Connect a computer with the software to gateway 1.
3. Install the software.
4. Program the register addresses that you wish to use.
Note:
n
During the installation, a manual is saved to:
C:\Intesiss\LinkBoxMB\DocsMB
Note:
n
The number of data points to be used is dependent
on the module applied.
M / BAC
ODBUS NET
