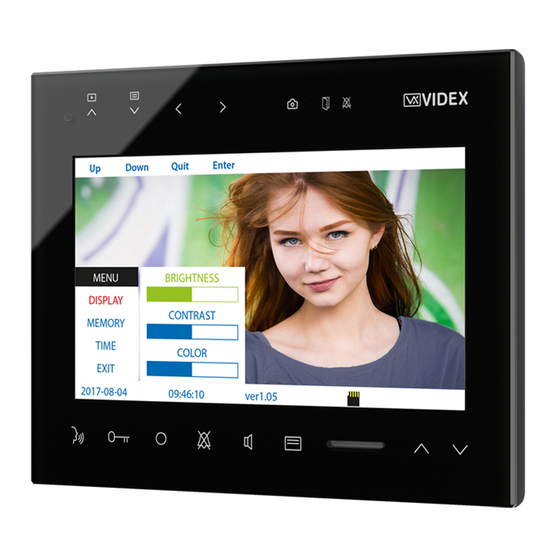

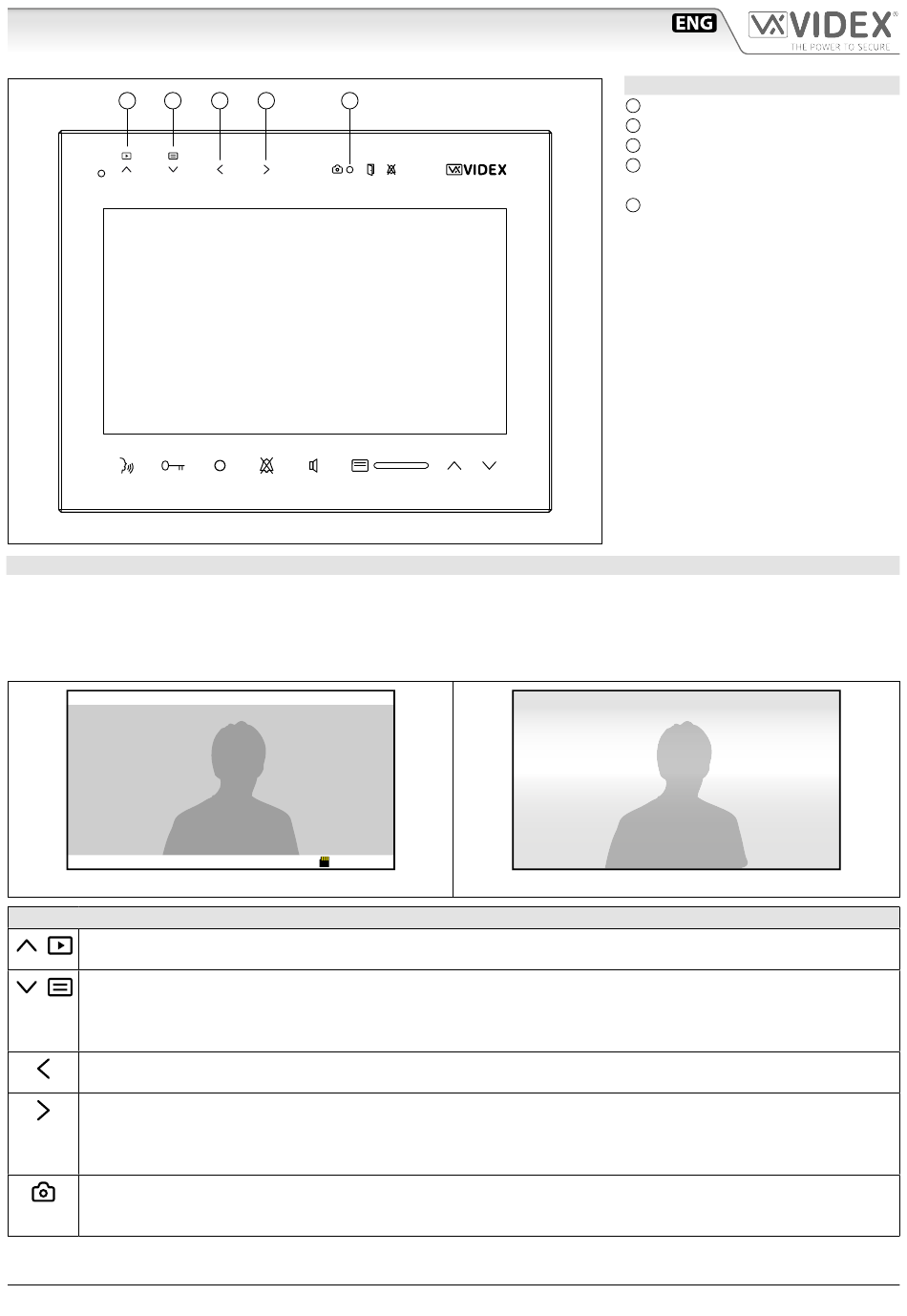

Fig. 1
OPERATION
The memory board has 4 management buttons plus one status LED.
When the device switches on (answering a call or camera recall), the image in Fig. 2 will appear: the live video in the background
with an overlay showing the time & date, MicroSD card icon and the function buttons.
The overlay information will disappear after a few seconds if no buttons are pressed as shown in Fig. 3.
To show the overlay again, press any of the video memory buttons (Fig. 2).
Memory Menu Photo
2018-03-07 09:46:45
Fig. 2
STANDARD FUNCTIONS
Browse function button.
Press to browse the recorded pictures or videoclips. This function is also available when the device is in stand-by.
Menu button.
Press to enter in a menu with the option of either still pictures or videoclips, copy files from built-in memory to MicroSD
card and formatting it (if present), adjust the monitor brightness, contrast and colour, set the current date and time.
This function is also available when the unit is in stand-by.
Instantly record function button.
Press it to record a picture or videoclip of the currently shown video during a conversation or while the videophone is ringing.
Automatic recording function button.
Press it to enable the function (the relevant LED turns ON) or press it again (the relevant LED turns OFF) to disable the function.
When the function is enabled, the device records a picture or videoclip (depending on settings) for every call or camera
recall. This function is also available when the device is in stand-by.
Automatic recording function status LED.
If the LED is ON the function is enabled. When the LED flashes, it indicates that there is a new picture or videoclip re-
corded in the device memory.
Kristallo Series 7" videophones - Memory board User manual
C D E
Auto
User Manual
Fig. 3
- 1 -
LEGEND
Browse function button;
A
Menu button;
B
Instantly recording function button;
C
Automatic capture function button
D
(enable/disable);
Automatic capture status LED.
E
