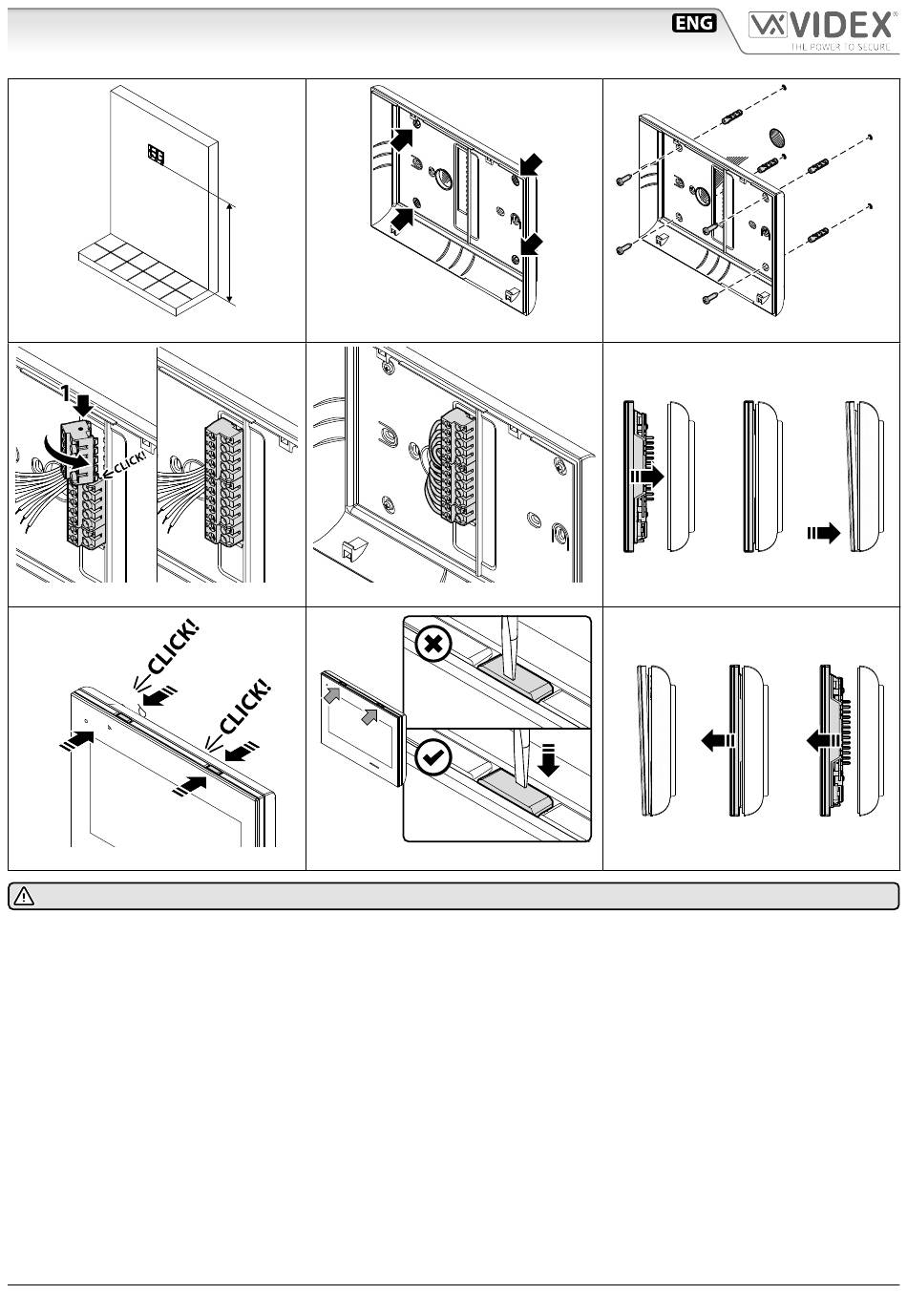

Kristallo Series
Art. KRV7985
Fig. 1
2
Fig. 4
Fig. 7
WARNING: Remeber to remove the mains before installing the videomonitor.
1. Put the back cover in a horizontal position on the wall leaving approx 135cm between the lower side of the back cover and the
finished floor (Fig. 1).
2. Mark the points for the fixing holes remembering that the wires must be fed through the hole (Fig. 2).
3. Make the holes, insert the wall plugs and fix the back cover with the screws feeding the wires into the hole (Fig. 3).
4. Insert the provided connection terminals (type and number of terminals depending on the videomonitor model) (Fig. 4).
5. Connect the wires to the connection terminals following the provided installation diagram (Fig. 5).
6. The surface mounting kit is ready to house the videomonitor: setup the dip-switches on the videomonitor as per provided con-
nection diagram or instruction sheet. Insert first the bottom side of the videomonitor then press it home (Fig. 6).
7. Press firmly the the upper corners of the videomonitor with two fingers until you hear a "CLICK!" (Fig. 7). The videomonitor is
installed, power up the system and check that it works correctly.
8. To open the videomonitor apply pressure in the inner part of the the two clips indicated by the grey arrows using a flat screwdriv-
er (Fig. 8) then pull the videomonitor forward from the top (Fig. 9). N.B. Repeat the same operation with both clips.
Art. KRV7985
- Mounting instructions
Surface mounting kit for Kristallo 7" videomonitors
135cm
Fig. 2
Fig. 5
Fig. 8
NO
YES
- 1 -
Fig. 3
1
2
Fig. 6
1
2
Fig. 9
66225048 - V1.0 - 30/04/20
3
3
