BLUM AVENTOS HF Assembly Instructions Manual

Hide thumbs Also See for AVENTOS HF:

Advertisement

Quick Links

Download this manual

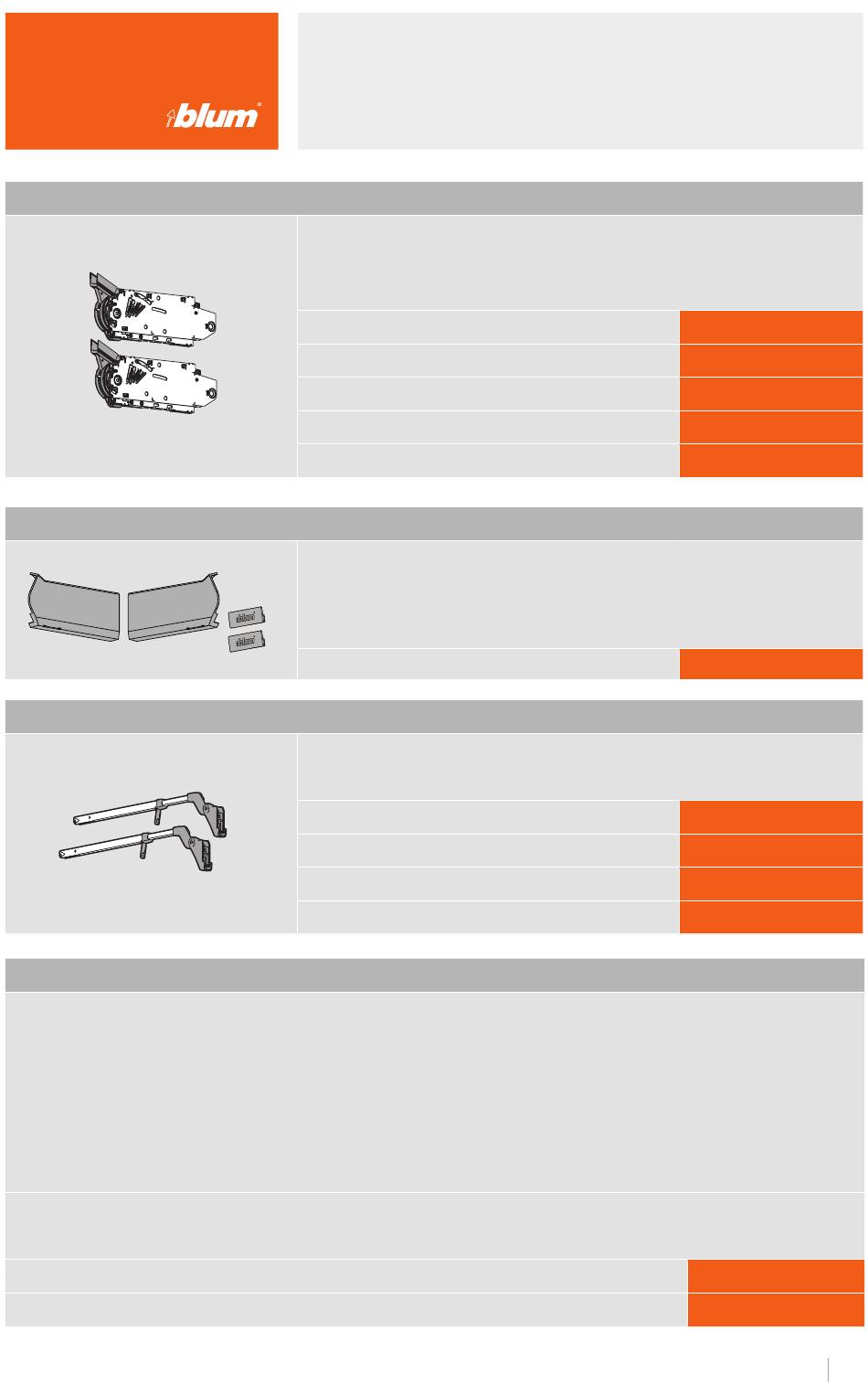

AVENTOS HF
Lift mechanism set
Cover set
Telescopic arm set
Narrow aluminum door hardware set
72T550A.TL - CLIP top free swing narrow alum. top door hinge (qty 2)
▀
 
78Z550AT - CLIP top narrow aluminum bottom door hinge (qty 2)
▀
 
175H3100 - Top door mounting plate (qty 2)
▀
 
175H5A00 - Bottom door mounting plate (qty 2)
▀
 
175H5B00 - Telescopic arm mounting plate (qty 2)
▀
 
669.110 -  Aluminum screw for the bottom door mounting plate, bottom hinge,  
▀
 
top hinge and telescopic arm mounting plate (qty 18)
NOTE:
Three hinges and mounting plates are required for cabinet widths over 
1219 (48") or combined door weight of 26.5 lb.
Narrow aluminum door hardware set  
Installation screw for top mounting plate
Narrow aluminum
frame door application

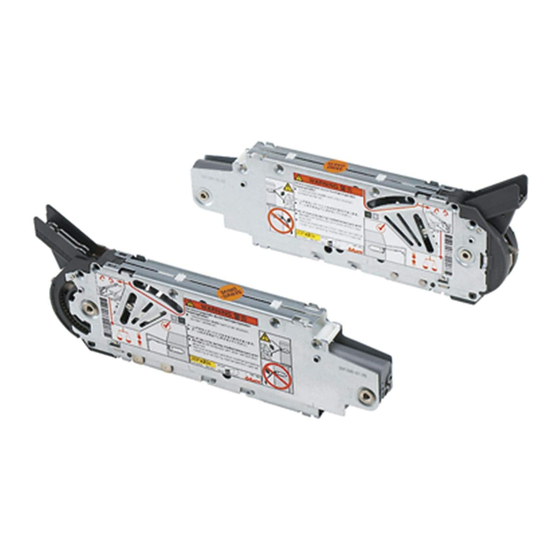

Lift mechanism (qty 2)
▀
 
#7 x 35 mm (1-3/8") wood screw (qty 8)
▀
 
Power factor 
85 - 230 (1 lift mechanism req.)
231 - 470
471 - 880
780 - 1440
1401 - 2300 (3 lift mechanisms req.)
Right and left cover plate
▀
 
Non-handed cover cap (qty 2)
▀
 
Colors: Light Gray, Dark Gray and Silk White
▀
 
Cover set
Telescopic arm (qty 2)
▀
 
Cabinet heights
479 (18-7/8") - 558 (22")
558 (22") - 686 (27")
686 (27") - 889 (35")
889 (35") - 1067 (42")
Dimensions in millimeters (inch equivalents as noted)
Part no.
20F2200.N5
20F2200.N5
20F2500.N5
20F2800.N5
20F2800.N5
Part no.
20F8020.NA
Part no.
20F3200.01
20F3500.01
20F3800.01
20F3900.01
Part no.
78Z550ATA6
606N or 606P
1
© 2021

Advertisement

loading
Need help?

Need help?

Do you have a question about the AVENTOS HF and is the answer not in the manual?

Questions and answers

Related Manuals for BLUM AVENTOS HF

Summary of Contents for BLUM AVENTOS HF

  • Page 1 AVENTOS HF Narrow aluminum frame door application Lift mechanism set Lift mechanism (qty 2) ▀   #7 x 35 mm (1-3/8”) wood screw (qty 8) ▀   Power factor  Part no. 20F2200.N5 85 - 230 (1 lift mechanism req.) 231 - 470 20F2200.N5 471 - 880 20F2500.N5 780 - 1440 20F2800.N5 1401 - 2300 (3 lift mechanisms req.) 20F2800.N5 Cover set Right and left cover plate ▀   Non-handed cover cap (qty 2) ▀   Colors: Light Gray, Dark Gray and Silk White ▀   Part no.
  • Page 2 Assembly WARNING Risk of injury from spring-loaded arm Do not push arm assembly down or leave in the down position. ▀   Remove mechanism before installing or removing cabinet. ▀   Locating pin locations Ø5 TR = Top reveal TDH = Top door ht.  Top door height    (TDH) TDH x .6 - 28 + TR 231 to 271 TDH x .6 - 57 + TR 272 to 531 Part no.  65.1051.02   Universal individual template is available for pre-boring holes for locating pins. Subject to technical modifications without notice.
  • Page 3 Assembly Attach the lift mechanism Align the two locating pins on the lift mechanism with the two Ø5 x 5 holes bored in the side of  cabinet, and attach the mechanism with the five wood screws provided. 5 min. Ø5    #7 x 35 mm (1-3/8") wood screws (qty 4) Attach the telescopic arms WARNING:  Risk of injury from spring loaded arm. Attach telescopic arms by clipping them  on in the fully upright position. Dimensions in millimeters (inch equivalents as noted) © 2021...
  • Page 4 Assembly Top door hinge planning 1. 7 Part no.   72T550A Aluminum door hinge 175H3100 In-line mounting plate Bottom door hinge planning Part no.  78Z550AT Aluminum door bottom hinge 175H5A00 Bottom door mounting plate Subject to technical modifications without notice. © 2021...
  • Page 5 Assembly Frame preparation 1 1 . Bottom door planning Top door  height (TDH) 231 to 271 TDH x .5 + 70 TDH x .5 + 47 272 to 531 NOTE: 3 hinges are  required for cabinet width  over 1219 mm (48") or 26.5  lb. combined door weight. Part no.   175H5B00 Telescopic arm mounting plate Dimensions in millimeters (inch equivalents as noted) ©...
  • Page 6 Assembly Attach the top door to the cabinet Determine the locations of mounting plates and hinges and attach the hardware to cabinet doors.  Attach top door to the cabinet. Attach the bottom door Attach bottom door to the top door and attach the telescopic arms. Subject to technical modifications without notice. © 2021...
  • Page 7 Assembly Finalize the tension adjustments 1. Close and flush doors to cabinet. Open  2. Open door and adjust tension screws on  and close door to test closing force.  both lift mechanisms with a power drill. Test  door again and repeat until desired function  is achieved. Tension adjustment should be the same on both lift mechanisms. Use #2x2 POZI bit Finalizing the door adjustments 1.  Adjust each top door hinge and  2.  Adjust each bottom door hinge and  mounting plate to properly align the top  mounting plate to properly align doors to  door to the cabinet. the cabinet and to the top door. ± 3 mm ± 2 mm + 3/- 2 mm ± 2.5 mm ± 2 mm ± 2 mm NOTE:  Although  not  illustrated  here,  telescopic  arm  mounting  plates  can  also  be  adjusted  horizontally ± 2 mm if needed.
  • Page 8 Assembly Adjust and lock telescopic arms 1.  Close  and  flush  doors  to  cabinet.  While  2. Slightly open door and lock the telescopic  pressing on the bottom of the top door, pull the  arms into position using the levers as shown.  bottom door open one inch.  Open door  enough to  lock levers. Attach cover caps Attach the left and right cover plates to each lift mechanism. Subject to technical modifications without notice. © 2021...
  • Page 9 Removal WARNING Risk of injury from spring-loaded arm Do not push arm assembly down or leave in the down position. ▀   Remove mechanism before installing or removing cabinet. ▀   Removing the covers Remove left and right cover plates.  Removing the door Release both arms and gently rest the  top door on the loose arms. The tension  will hold the doors up for the next step. Dimensions in millimeters (inch equivalents as noted) © 2021...
  • Page 10 Removal Removing the doors 1. Hold the bottom door while unclipping the  2.  Hold  the  top  door  while  detaching  the  bottom hinge. top  hinges. Simply unclip them if using  the CLIP top hinges or unscrew them if  using COMPACT. Removing the telescopic arms Using a screwdriver, depress the release  If transporting the cabinet to the jobsite, stop  tabs to remove telescopic arms. here. Lift mechanisms can stay inside the  cabinet for easy transport. Subject to technical modifications without notice. © 2021...

  • Page 11: Other Information

    Z = TDH x .44 + 38 .063 .094 .125 .156 .188 .219 .281 .313 .344 .375 .406 .438 .469 2  .531 13.5 .563 .594 .625 .656 .688 17.5 .719 .781 .813 20.5 .844 .875 .906 .938 Blum,  Inc. .969 24.5 800-438-6788 sales.us@blum.com 25.4 blum.com INST-AVT07.21...
