ADC Proscope 5212 Use, Care & Maintenance page 6

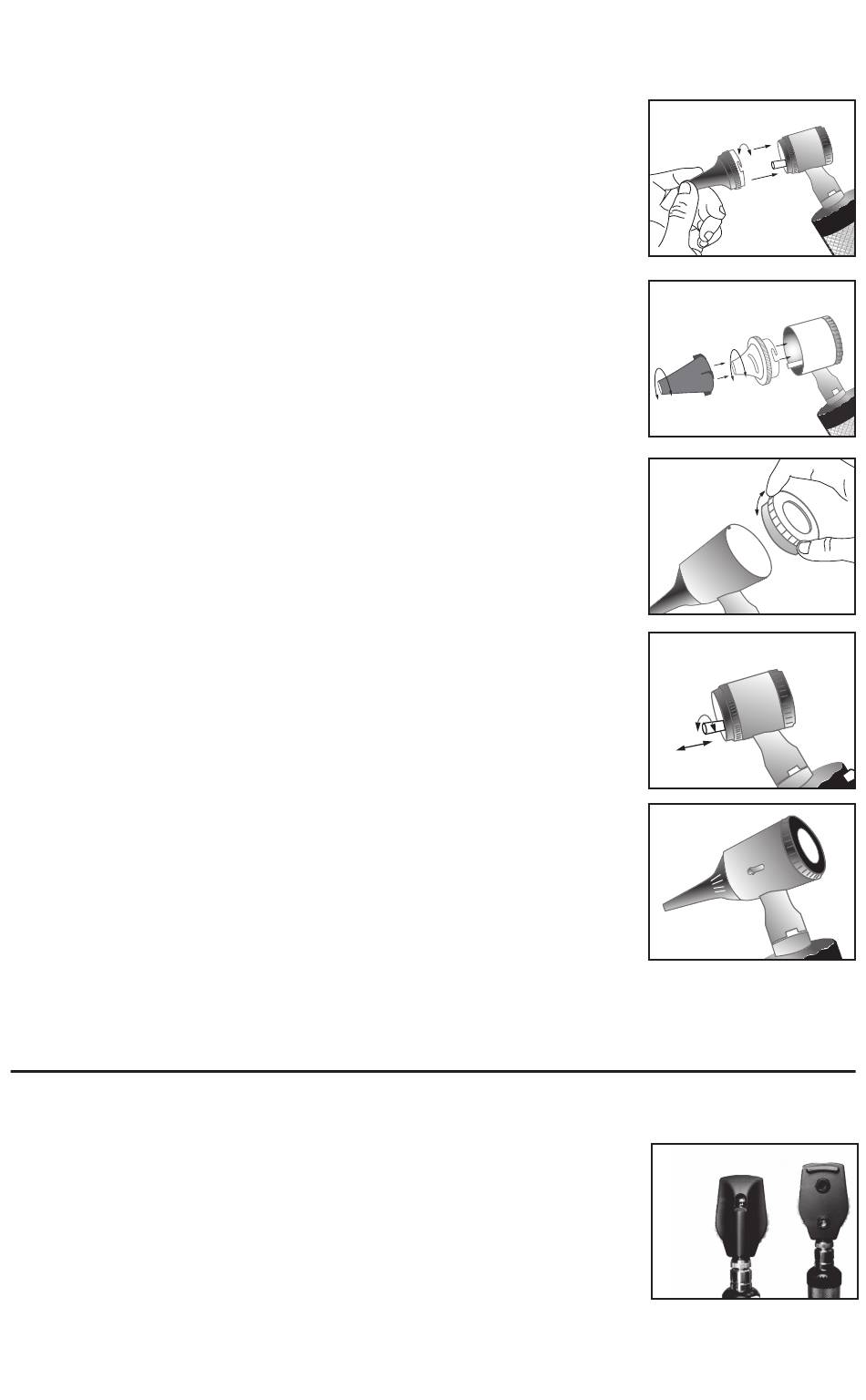

Attaching the specula
Push the flanged end of the desired speculum onto the instru-
ment head aligning the slot in the speculum flange with the
rivet at the top of the instrument head and twist clockwise to
engage. Reverse procedure to remove. (Fig.4)
NOTE: Otoscope must be used with specula.
Using Welch Allyn or equivalent disposable specula:
Attach the disposable specula adaptor, Item #5211-AD in the
same manner as the reusable specula. Attach Welch Allyn or
equivalent disposable speculum by pushing the flanged end of
the desired speculum onto the chrome socket and twist coun-
terclockwise to engage (Fig.4b). Reverse procedure to re-
move and discard after each use.
Removing Viewing lens
To remove the Viewing lens (Item #5211-L) during an exami-
nation, rotate lens counterclockwise and pull. Reverse proce-
dure to attach. (Fig. 5).
Replacing lamp
Remove speculum. Pull black sleeve off of lamp. Twist lamp
counterclockwise to remove. Replace with ADC Item #5211-4.
Reverse procedure to install new lamp. (Fig. 6).
Insufflator
The unit comes equipped with an insufflator fitting already at-
tached. The insufflator bulb and tubing (Item #5122N) can be purchased separately.
(Fig. 7).
Ophthalmoscope
(provided on sets #5212, #5215 and #5210)
This instrument head (Item #5240) is equipped with 24 lenses
from -25 to +40 diopters. (Fig. 8).
6
(Fig. 4)
(Fig. 4b)
(Fig. 5)
(Fig. 6)
(Fig. 7)
(Fig. 8)
