Summary of Contents for ADC Proscope 5212

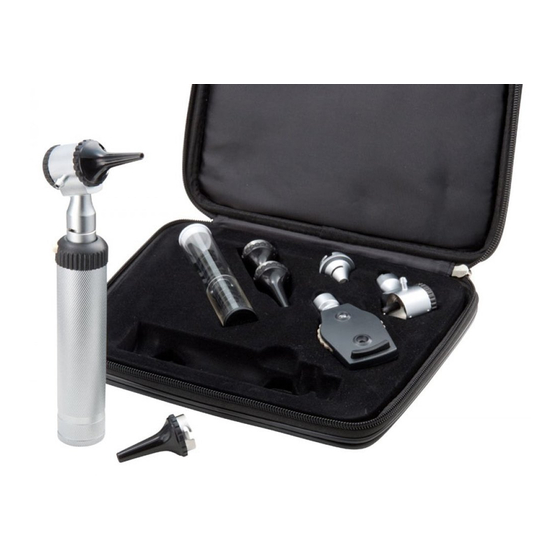

- Page 1 Otoscope & Ophthalmoscope Instrument Set Use, Care, & Maintenance...
-
Page 2: Device Description And Intended Use
Thank you for choosing an ADC ® Diagnostc Instrument Set. We’re proud of the care and quality that goes into the manufacture of each and every diagnostic instrument that bears our name. Every component has been carefully designed to maximize perform- ance. -
Page 3: General Warnings
WARNING: The carrying cases provided with these devices are intended for long term storage or transport between facilities or when shipping devices to and from ADC’s facility for repair or servicing. Carry cases (including internal liners) can NOT be cleaned or disinfected and should be safely discarded if contaminated. Do not... - Page 4 WARNING: When replacing lamp, allow lamp to cool for five minutes before han- dling. WARNING: When cleaning/disinfecting devices that have been used on patients, be sure to use appropriate personal protective equipment and follow all safety precau- tions/warnings. CAUTION: Consult the cleaning and disinfection instructions for each part for further information about cleaning and disinfecting this product.
- Page 5 Battery Replacement Requires 2 "C" cell batteries. Remove the knurled cap at the base of the handle by turning counterclockwise. Insert two fresh "C" cell batteries (not included) with the positive polarity towards the instrument head. Replace battery compartment cap by turning clockwise. (Fig. 1). Removing and Attaching the Instrument Head (Fig.
- Page 6 Replacing lamp Remove speculum. Pull black sleeve off of lamp. Twist lamp (Fig. 7) counterclockwise to remove. Replace with ADC Item #5211-4. Reverse procedure to install new lamp. (Fig. 6). Insufflator The unit comes equipped with an insufflator fitting already at- tached.
- Page 7 Corrective lens selection: (Fig. 9) Unit is equipped with 24 corrective lenses from +40 to -25 diopters (negative lenses in red). To select, rotate the correc- tive lens selection wheel at either side of the instrument head. Selected lenses can be viewed in the illuminated panel on practitioner’s side of the instrument.
- Page 8 These alternate cleaning/disinfecting methods have not been vali- dated with ADC’ s devices and may cause damage or corrosion to your medical device. All devices and accessories (excluding disposable specula) should be thoroughly cleaned and disinfected prior to their first use.
- Page 9 Cleaning Procedure for Battery Handles, Otoscope and Ophthalmoscope Heads Prepare a 70% isopropyl alcohol solution and soak a lint-free sterile cloth. Wipe down the exterior of the battery handle, otoscope head, and ophthalmoscope head. Care should be taken to prevent excess liquid from seeping into the devices. Isopropyl alcohol may be substituted with commonly used hospital disinfectant wipes for cleaning purposes if desired.
- Page 10 High Level Disinfection for Battery Handles, Otoscope heads, Otoscope Accessories (Including: Welch Allyn Specula Adapter, Reusable Specula, Nasal Specula); Bent Arm Il- luminator, and Bent Arm Illuminator Accessories (Including: Laryngeal Mirrors, Tongue Blade, and Tongue Blade Holder). To achieve high level disinfection, a 2.4% glutaraldehyde solution (Cidex Activated Di- aldehyde Solution ®...
-
Page 11: Troubleshooting
Disposable Specula Cleaning/Disinfection Instructions Disposable specula should not be cleaned or disinfected in any way. Disposable spec- ula are single patient use only and must be discarded after use. Disposable specula should not be used if they appear to be visibly contaminated or have accidentally come into contact with contaminated materials prior to use Drying All devices and components must be thoroughly dried prior to battery insertion or use... - Page 12 Otoscope and Accessories Troubleshooting Guide Corrective Action Trouble Area Replace the lamp with ADC part #5211-4 Replace the lamp with ADC No light output part #5211-4 Replace with fresh “C” batteries Instrument head will Service required not connect Specula will not attach...
- Page 13 Ophthalmoscope Troubleshooting Guide Trouble Area Possible Cause Corrective Action Aperture dial is between Rotate Aperture dial positions Replace the lamp with ADC part Lamp Burned out No light output #5210-4 Wrong Lamp Installed Replace the lamp with ADC part #5210-4...
- Page 14 Bent Arm Illuminator and Accessories Troubleshooting Guide Trouble Area Possible Cause Corrective Action Lamp burned out Replace the lamp with ADC part #5211-4 Wrong lamp installed No light output Replace the lamp with ADC part Batteries are depleted #5211-4 Replace with fresh “C” batteries...
- Page 15 Environment Transportation / Storage: -4°F to 120.2°F (-20°C to +49°C) RH 95 % 500 hpa – 1060 hpa, Altitude Environmental Operating 50°F to 120.2°F (10°C to 49°C) Range: RH 95 % (Max) 500 hpa – 1060 hpa, Altitude Maximum Operating 95°F (35°C) Temperature: Symbols...
-
Page 16: Limited Warranty
2. The optical system is warranted for one year. What is Covered: Repair, or replacement of parts, and labor. What is Not Covered: Transportation charges to and from ADC ® . Damages caused by abuse, misuse, accident, or negligence. Incidental, special, or consequential damages. Some states do not allow the exclusion or limitation of incidental, special, or conse- quential damages, so this limitation may not apply to you. - Page 17 Packaged in the U.S.A. Made in Pakistan 55 Commerce Drive tel: 631-273-9600 Hauppauge, NY 11788 toll free: 1-800-232-2670 fax: 631-273-9659 ADC (UK) Ltd. www.adctoday.com Unit 6, PO14 1TH info@adctoday.com United Kingdom Printed in the U.S.A. IB p/n 93-5215-00 rev 7...
