ADC Proscope 5212 Use, Care & Maintenance page 7

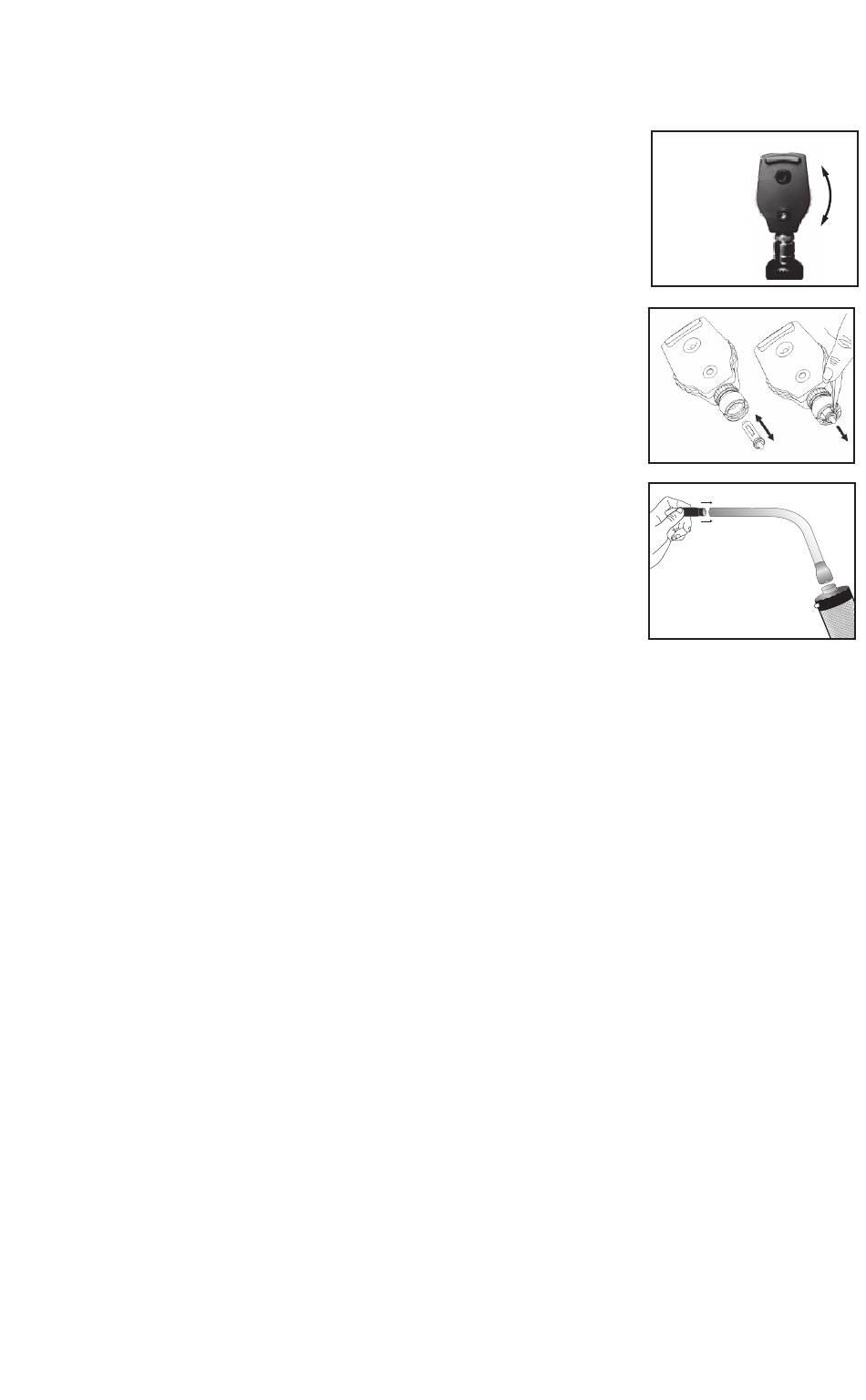

Corrective lens selection:
(Fig. 9)
Unit is equipped with 24 corrective lenses from +40 to -25
diopters (negative lenses in red). To select, rotate the correc-
tive lens selection wheel at either side of the instrument head.
Selected lenses can be viewed in the illuminated panel on
practitioner's side of the instrument. (Fig. 9).
Replacing Halogen lamp:
Remove the Ophthalmoscope head by turning counterclock-
wise. Grab end of lamp from inside base of Ophthalmoscope
(Fig. 10)
head and remove. Replace with new lamp (Item #5210-4),
taking care not to touch the glass, and align lamp metal
guides on side of lamp with grooves in lamp socket. (Fig. 10).
Bent Arm Illuminator Head: (Item #5215-TH)
(Fig. 11)
This instrument head is designed for examination of the oral
cavity inconjunction with the tongue depressor blade, or laryngeal mirror attachments.
Supplied attachments include a reusable tongue blade (Item #5215-TD), adapter for
disposable tongue blade (Item #5215-TO), 3mm laryngeal mirror (Item #5215-M3),
and 4mm laryngeal mirror (Item #5215-M4). These attachments are supplied with
complete set (Item #5215) only or can be purchased separately. (Fig. 11).
Attaching any of the supplied Attachments
Align slot on attachment with pin on top surface of bent arm illuminator and push until se-
cure. (Fig. 11).
Replacing lamp (Item #5211-4) Remove by turning counterclockwise. Reverse pro-
cedure to replace.
Nasal Specula Attachment: (provided on Item #5215)
This instrument head attachment (Item #5215-NS) is designed for examination of the
nasal cavity. It is used in conjunction with the Otoscope instrument head.
7
