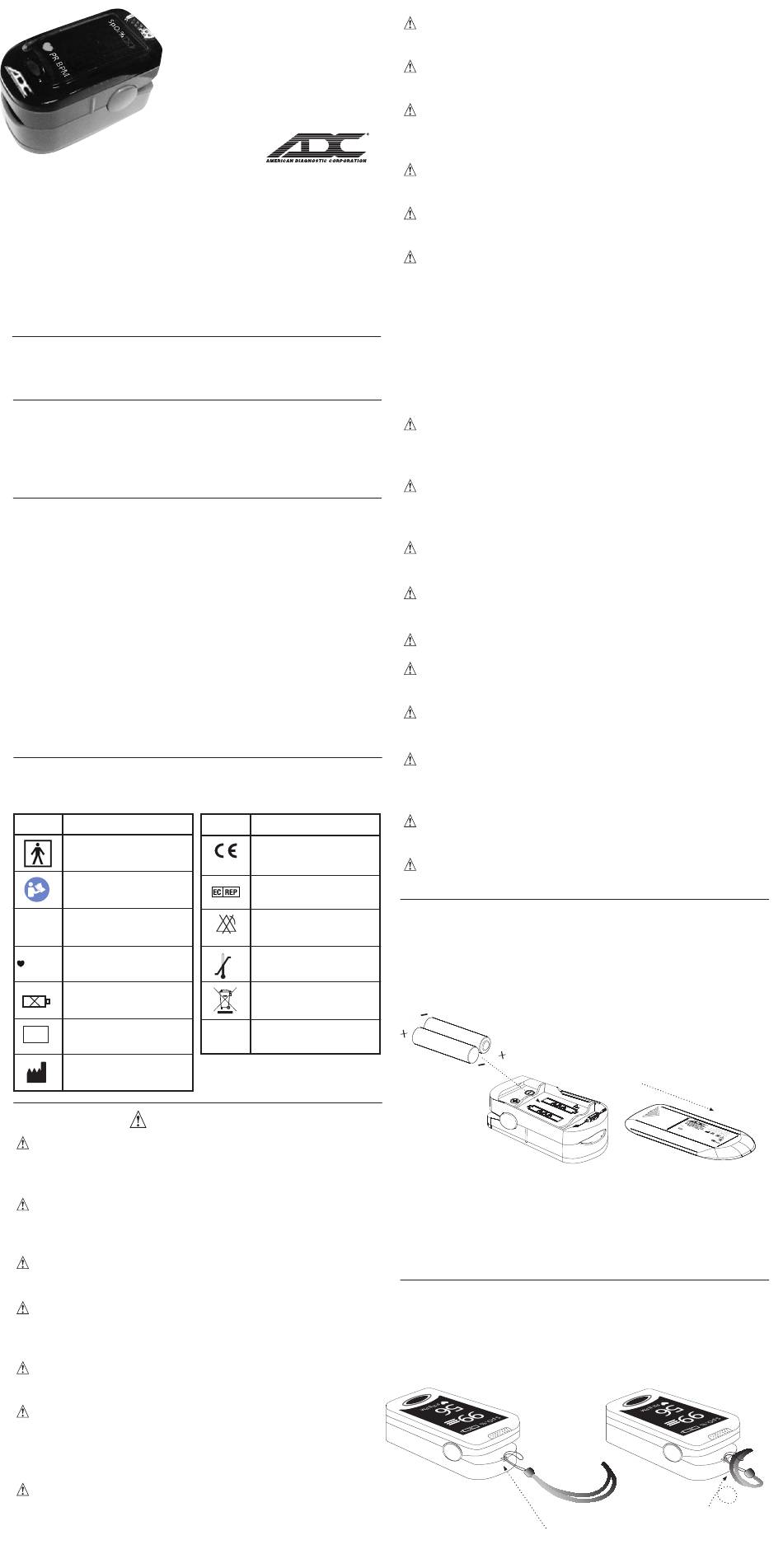

ADC 2200 Instructions For Use

ADC Fingertip Pulse Oximeter
Thank you for purchasing an ADC Advantage Fingertip Pulse Oximeter.
We're proud of the care and quality that goes into the manufacture of
every product that bears our name. The ultra-portable Advantage 2200
will give you information about oxygen saturation (the amount of oxygen
in the blood) and pulse rate at your fingertip. The 2200 is easy to use
and needs no routine maintenance except battery replacement. This
User's Guide explains how to use and care for your Advantage 2200.
Contents of this Package
• Advantage 2200
• Lanyard
Intended Use
The Advantage 2200 is a handheld non-invasive device intended for spot-
checking of oxygen saturation of arterial hemoglobin (SpO2) and Pulse Rate of
adult, adolescent and child patients in hospitals, hospital-type facilities and
homecare.
Contraindications:
• The patient suffers from significant levels of dysfunctional
hemoglobins (such as carboxyhemoglobin or methemoglobin).
• Intravascular dyes such as indocyanine green or methylene blue
have been injected into the patient.
• Used in the presence of high ambient light (e.g., direct sunlight).
Shield the sensor area with a surgical towel if necessary.
• There is excessive patient movement.
• The patient experiences venous pulsations.
• The patient has hypotension, severe vasoconstriction, severe
anemia, or hypothermia.
• The patient is in cardiac arrest or is in shock.
• Fingernail polish or false fingernails as they may cause inaccurate
SpO2 readings.
Symbol Definitions
The following symbols are associated with your Advantage 2200
Symbol Definition
The equipment type is BF
Refer to user manual
before use
%SpO
2
Hemoglobin saturation
Pulse rate (BPM) beats per
PR BPM
minute
Low power indication
SN
Serial number
Manufacturer's information
General Warnings
WARNING: Keep the Advantage 2200 away from young children.
Small items such as the battery cover, battery, and lanyard are
choking hazards.
WARNING: Certain activities may pose a risk of injury, including
strangulation if the lanyard should become wrapped around your neck.
Use the lanyard with caution.
WARNING: Explosion hazard: Do not use the pulse oximeter in
an explosive, oxygen enriched, environment.
CAUTION: Only a healthcare professional is qualified to interpret
SpO measurements. This device is NOT intended to replace
2
regular medical checkups.
CAUTION: It is recommended that your physician review your
procedure for using this device.
CAUTION: SpO readings obtained by this device should be
2
verified before prescribing or making adjustments to any
medications. Under no circumstances should YOU alter the
dosages of any drugs prescribed by your doctor.
CAUTION: Excessive movement of the pulse oximeter during
measurement may cause inaccurate readings. Limit finger
movement as much as possible when using the device.
ADC ® 2200
Advantage TM Fingertip
Pulse Oximeter
Instructions for Use
• Two AAA batteries
• Instructions for Use
Symbol Definition
Meets essential requirements of
European Medical Device Directive
0123
93/42/EEC
Authorized European
representative's information
Not for continuous monitoring
SpO
2
158°F
(70°C)
max
Storage temperature and
-13°F relative humidity
(-25°C)
min
RH≤93%
non-condensing
Recyclable
IPX1
Protected against dripping water
CAUTION: The pulse oximeter is not intended for continuous
monitoring.
CAUTION: Do not place the pulse oximeter on the same hand/arm
when using a blood pressure monitor.
CAUTION: This pulse oximeter has no alarms. It will not sound if the
amount of oxygen in your blood is low or if the pulse rate is too high or
too low.
CAUTION: This pulse oximeter readings may be adversely affected in
the presence of high ambient light. Shield the device if necessary.
CAUTION: Do not immerse the pulse oximeter in liquid or clean with
agents that are not listed in this User's Guide.
CAUTION: Any of the following conditions may reduce the performance of
the pulse oximeter:
• Very bright or flickering light
• Weak pulse
• Low hemoglobin
• Arterial catheters
• Nail polish and/or artificial nails
• Any tests recently performed on you that required the
injection of intravascular dyes
CAUTION: The pulse oximeter may not function if you have poor
circulation. Rub your fingers to increase circulation or try an alternate
finger if you are having trouble obtaining readings.
CAUTION: Batteries can leak or explode if used or disposed of improperly.
Remove the battery if the pulse oximeter will not be used for more than
30 days.
CAUTION: Do not use the pulse oximeter outside the specified
operating and storage temperature ranges.
CAUTION: Do not use the pulse oximeter for more than 30 minutes
without relocating the device to another finger.
CAUTION: Do not tamper with the pulse oximeter.
CAUTION: Radios, cell phones, or other similar devices may affect the
pulse oximeter and should be kept at least 7 feet away from the device.
CAUTION: Use in emergency vehicles with communication systems may
affect the accuracy of the pulse oximeter.
CAUTION: Field strengths from fixed transmitters (radio, phone base
stations, AM/FM radio or TV broadcast towers) may affect the accuracy of
the pulse oximeter.
CAUTION: Follow local ordinances and recycling instructions regarding
disposal or recycling of the Advantage 2200 including batteries.
CAUTION: The Advantage 2200 is a precision electronic instrument and
must be serviced by ADC's service department.
Battery Installation
(Figure 1)
1. Slide off battery cover in direction of arrow.
2. Put the two AAA batteries into battery compartment, observing
correct polarity.
3. Slide the battery cover on by reversing Step #1.
Note:
• Battery polarity should be observed to prevent damage to the device.
• When battery is low, the battery indicator symbol on the display will
flash. Replace low battery as soon as possible. Remove battery if the
device will not be used for more than 30 days.
Strap Installation
(Figure 2)
1. Thread thinner end of the strap through the loop.
2. Thread thicker end of the strap through the threaded end and
pull tightly.
(Figure 2)
(Figure 1)
1
2.
1.
