CALIBRATION PROCEDURE

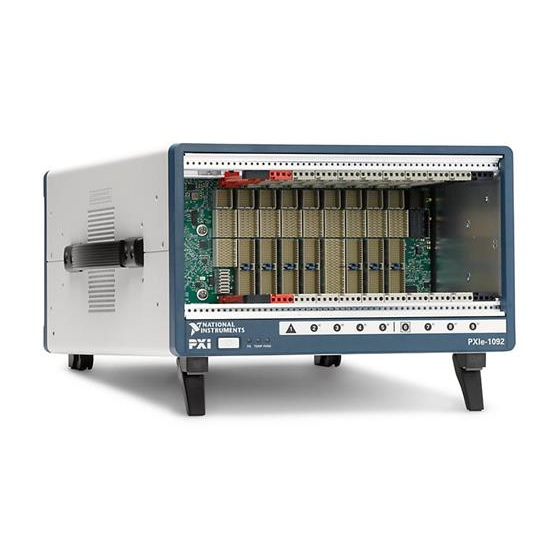

PXIe-1092
PXI Chassis
This document contains the verification and adjustment procedures for the National
Instruments PXIe-1092 chassis. Refer to
calibration solutions.
Contents
Software.................................................................................................................................... 1
Documentation.......................................................................................................................... 1
Test Equipment..........................................................................................................................2
Test Conditions..........................................................................................................................2
Initial Setup............................................................................................................................... 3
Verification................................................................................................................................3
Adjustment................................................................................................................................ 4
Reverification............................................................................................................................6
Where to Go for Support...........................................................................................................6
Software
Calibrating the PXIe-1092 requires installing the following software on the calibration system:
•
PXI Platform Services 18.1 or later
You can download PXI Platform Services from ni.com/downloads.
PXI Platform Services supports programming the calibration procedures using several
application development environments (ADEs), including LabVIEW, LabWindows
and Microsoft Visual C++. When you install PXI Platform Services, you need to install
support for only the ADE that you intend to use.
Documentation
You might find the following documents helpful as you perform the calibration procedure:
•
PXIe-1092 User Manual
•
PXIe-1092 Specifications
The latest versions of these documents are available on ni.com/manuals.
ni.com/calibration
for more information about
™
™
/CVI
,
