For user manuals and dimensional drawings, visit the product page resources tab on ni.com.
Last Revised: 2012-07- 30 10:18: 58.0

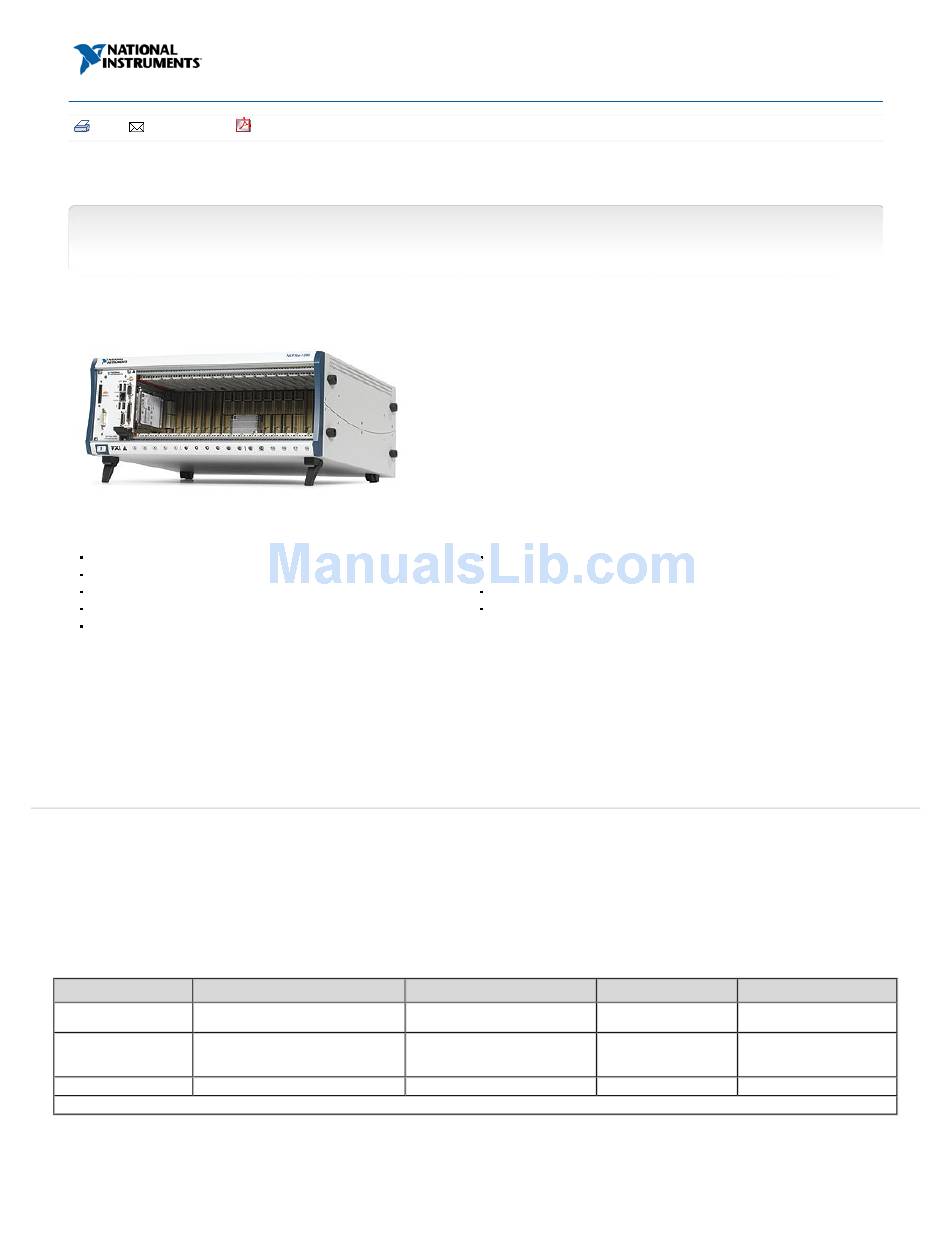

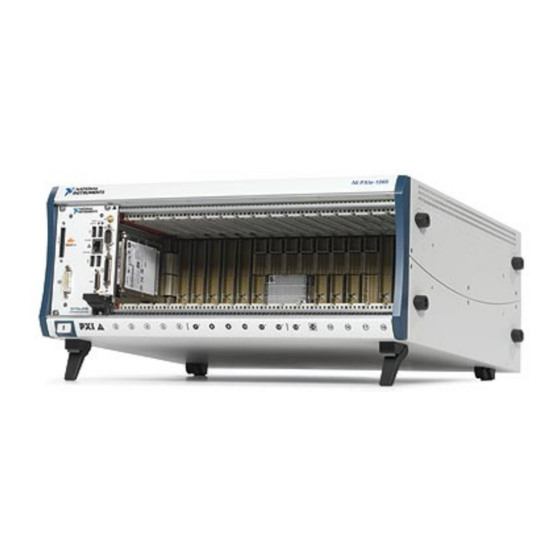

18-Slot PXI Express Chassis for PXI and PXI Express Modules
NI PXIe- 1065
Accepts 3U PXI, PXI Express, CompactPCI, and CompactPCI Express modules
Up to 1 GB/s per- slot dedicated bandwidth [x4 PCI Express]
700 W available power for 0 to 55 °C
Low- jitter internal 10 MHz reference clock for PXI slots with 25 ppm stability
Low- jitter internal 100 MHz reference clock for PXI Express slots with 25 ppm stability
Overview
The National Instruments PXIe- 1065 18- slot chassis features a highbandwidth backplane to meet a wide range of high- performance test and measurement application needs. The higher slot count
of the NI PXIe- 1065 provides a solution for higher- channel- density systems. The chassis operates in a temperature range extended to 55 °C for applications needing cooling performance. It also
incorporates all the features of the latest PXI specification including support for both PXI and PXI Express modules with a built-in 10 MHz reference clock, PXI trigger bus, and PXI star trigger for PXI
modules and a built-in 100 MHz reference clock, SYNC 100, and PXI differential star trigger for PXI Express modules.
Application and Technology
High Reliability
0 to 55 ° C extended temperature range
Power supply, temperature, and fan monitoring
HALT- tested for increased reliability
Field- replaceable power supply shuttle
Slot
Bus Signaling
3 GB/s dedicated for PXI Express (3 x4 links)
Bandwith
Number of Slots
1
Includes one system timing slot
|
Open Document as PDF
Multichassis Synchronization
PXI Express system timing slot for tight synchronization
across chassis
Rear CLK10 I/O connectors
Switchless CLK10 routing
PXI Express System
PCI Express
132 MB/s shared for PXI
1
Quiet operation for 0 to 30 °C at 45 dBA
Variable speed fan controller optimizes cooling and acoustic emissions
Remote power- inhibit control
Complies with PXI and CompactPCI specifications
Optional Features
Front and rear rack- mount kits
Replacement power supply and fan shuttle
Filler panels
Slot blockers for improved cooling performance
Factory installation services
PXI Express Peripheral
PCI Express
132 MB/s shared (PXI) or
1 GB/s dedicated
1 GB/s dedicated (PXI
1
4
1/9
Hybrid
PCI (32/33)
PCI (32/33)
PCI Express (x4)
132 MB/s shared
Express)
4
Technical Sales
(866) 531-6285
orders@ni. com
Back to Top
PXI
9
www.ni.com
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for National Instruments PXIe- 1065
Summary of Contents for National Instruments PXIe- 1065
- Page 1 The National Instruments PXIe- 1065 18- slot chassis features a highbandwidth backplane to meet a wide range of high- performance test and measurement application needs. The higher slot count of the NI PXIe- 1065 provides a solution for higher- channel- density systems. The chassis operates in a temperature range extended to 55 °C for applications needing cooling performance. It also incorporates all the features of the latest PXI specification including support for both PXI and PXI Express modules with a built-in 10 MHz reference clock, PXI trigger bus, and PXI star trigger for PXI modules and a built-in 100 MHz reference clock, SYNC 100, and PXI differential star trigger for PXI Express modules.
-
Page 2: Ordering Information
External 10 MHz Reference Clock I/O Connectors The NI PXIe- 1065 chassis include IN/OUT BNC connectors for the 10 MHz reference clock on the rear of the chassis. When the backplane detects a 10 MHz signal on the IN connector, it phase locks PXI_CLK10, PXIe_CLK100, and PXIe_SYNC100 to the external clock. -
Page 3: Detailed Specifications
Alliance Our Professional Services Team is comprised of NI applications engineers, NI Consulting Services, and a worldwide National Instruments Alliance Partner program of more than 700 independent consultants and integrators. Services range from start-up assistance to turnkey system integration. Visit ni. com/alliance. - Page 4 Caution Specifications are subject to change without notice. Electrical AC Input 100 to 240 VAC Input voltage range 90 to 264 VAC Operating voltage range 50/60 Hz Input frequency 47 to 63 Hz Operating frequency range ...
- Page 5 Replacement in under 5 minutes Power supply shuttle MTTR Chassis Cooling Module cooling system Forced air circulation (positive pressurization) through three 165 cfm fans with NI PXIe- 1065 High/Auto speed selector Bottom of module to top of module Slot airflow direction ...
-
Page 6: Electromagnetic Compatibility
, search by module number or product line, and click the appropriate link in the Certification column. Environmental Management National Instruments is committed to designing and manufacturing products in an environmentally responsible manner. NI recognizes that eliminating certain hazardous substances from our products is beneficial not only to the environment but also to NI customers. - Page 7 Steel Polyurethane Enamel The following two figures show the NI PXIe- 1065 chassis dimensions. The holes shown are for the installation of the optional rack mount kits. You can install those kits on the front or rear of the chassis, depending on which end of the chassis you want to face toward the front of the instrument cabinet. Notice that the front and rear chassis mounting holes (size M4) are symmetrical.
- Page 8 NI PXIe- 1065 Chassis Dimensions (Bottom) The following figure shows the chassis rack mount kit components. NI Chassis Rack Mount Kit Components www.ni.com...
- Page 9 LabWindows is used under a license from Microsoft Corporation. Windows is a registered trademark of Microsoft Corporation in the United States and other countries. Other product and company names listed are trademarks or trade names of their respective companies. A National Instruments Alliance Partner is a business entity independent from National Instruments and has no agency, partnership, or joint- venture relationship with National Instruments.
