PXI Express
TM

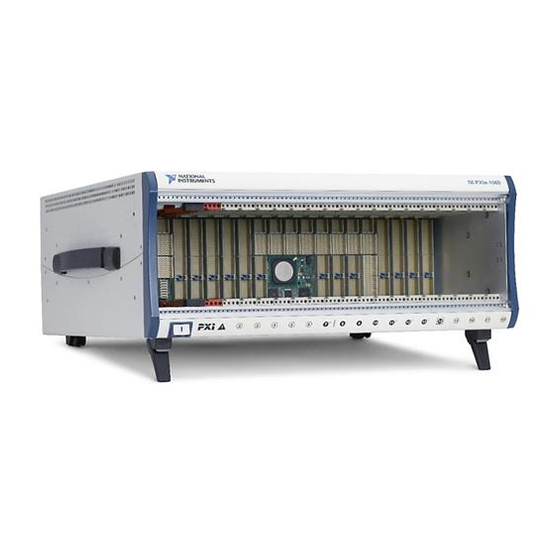

NI PXIe-1065 User Manual
NI PXIe-1065 User Manual
December 2008
371990B-01

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PXI Express NI PXIe-1065 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for National Instruments PXI Express NI PXIe-1065

Summary of Contents for National Instruments PXI Express NI PXIe-1065

  • Page 1 PXI Express NI PXIe-1065 User Manual NI PXIe-1065 User Manual December 2008 371990B-01...
  • Page 2 Thailand 662 278 6777, Turkey 90 212 279 3031, United Kingdom 44 (0) 1635 523545 For further support information, refer to the Technical Support and Professional Services appendix. To comment on National Instruments documentation, refer to the National Instruments Web site at and enter ni.com/info the info code feedback ©...

  • Page 3: Important Information

    Instruments Corporation. National Instruments respects the intellectual property of others, and we ask our users to do the same. NI software is protected by copyright and other intellectual property laws. Where NI software may be used to reproduce software or other materials belonging to others, you may use NI software only to reproduce materials that you may reproduce in accordance with the terms of any applicable license or other legal restriction.

  • Page 4: Table Of Contents

    Chassis Cooling Considerations ...2-2 Providing Adequate Clearance ...2-2 Chassis Ambient Temperature Definition ...2-4 Setting Fan Speed ...2-5 Installing Filler Panels...2-5 Installing Slot Blockers ...2-5 Rack Mounting ...2-5 Connecting Safety Ground...2-5 Connecting to Power Source...2-6 © National Instruments Corporation NI PXIe-1065 User Manual...
  • Page 5 Contents Installing a PXI Express System Controller... 2-6 Installing Peripheral Modules... 2-8 Power Inhibit Switch LED Indicator... 2-10 Remote Voltage Monitoring and Control... 2-10 Inhibit Mode Switch ... 2-12 PXI_CLK10 Rear Connectors... 2-12 PXI Express System Configuration with MAX ... 2-12 PXI-1 System Configuration...

  • Page 6: About This Manual

    This font is also used for the proper names of disk drives, paths, directories, programs, subprograms, subroutines, device names, functions, operations, variables, filenames, and extensions. © National Instruments Corporation NI PXIe-1065 User Manual...

  • Page 7: Related Documentation

    About This Manual Related Documentation The following documents contain information that you might find helpful as you read this manual: • • • • • NI PXIe-1065 User Manual IEEE 1101.1-1991, IEEE Standard for Mechanical Core Specifications for Microcomputers Using IEC 603-2 Connectors IEEE 1101.10, IEEE Standard for Additional Mechanical Specifications for Microcomputers Using IEEE 1101.1 Equipment Practice...

  • Page 8: Getting Started

    ❑ ❑ ❑ ❑ ❑ ❑ © National Instruments Corporation NI PXIe-1065 chassis Filler panels AC power cable—refer to Table 1-1 for AC power cables NI PXIe-1065 User Manual Software media with PXI Platform Services 2.0 or higher Read Me First: Safety and Radio-Frequency Interference...

  • Page 9: Key Features

    North America 120 V United Kingdom 230 V If you are missing any of the items listed in Table 1-1, or if you have the incorrect AC power cable, contact National Instruments. Key Features The NI PXIe-1065 chassis combines a high-performance 18-slot...
  • Page 10 • • • • • © National Instruments Corporation Variable speed fan controller optimizes cooling and acoustic emissions Remote power-inhibit control Complies with PXI and CompactPCI Specifications 0 to 55 °C extended temperature range Power supply, temperature, and fan monitoring...

  • Page 11: Chassis Description

    Chapter 1 Getting Started Chassis Description Figures 1-1 and 1-2 show the key features of the NI PXIe-1065 chassis front and back panels. Figure 1-1 shows the front view of the NI PXIe-1065. Figure 1-2 shows the rear view of the NI PXIe-1065. 8 10 1 Chassis Carry Handle 2 Backplane Connectors...

  • Page 12: Optional Equipment

    6 10 MHz REF OUT BNC 7 10 MHz REF IN BNC Optional Equipment Contact National Instruments to order the following options for the NI PXIe-1065 chassis. EMC Filler Panels Optional EMC filler panel kits are available from National Instruments.

  • Page 13: Slot Blockers

    Chapter 1 Getting Started Slot Blockers Optional slot blocker kits are available from National Instruments for improved thermal performance when all slots are not used. NI PXIe-1065 Chassis Backplane Overview This section provides an overview of the backplane features for the NI PXIe-1065 chassis.

  • Page 14: Hybrid Peripheral Slots

    32-bit PCI busses. These slots offer full PXI functionality, but have no PXI Express features. The 64-bit PCI signals on the P2 connectors are not connected. © National Instruments Corporation Installation and Configuration, for details about the Inhibit A PXI Express Peripheral with x4 or x1 PCI Express link to the system slot or through a switch to the system slot.

  • Page 15: Pxi Express Peripheral Slots

    Chapter 1 Getting Started PXI Express Peripheral Slots There are three PXI Express peripheral slots: slots 8–10. Slot 8 is directly connected to the system slot with a x4 PCI Express link. Slots 9 and 10 are connected to the system slot through a PCI Express switch. PXI Express peripheral slots can accept the following modules: •...

  • Page 16: Pxi Local Bus

    Refer to Figure 1-4 for details. The left local bus 6 from slot 1 is not routed anywhere and the right local bus signals from slot 18 are not routed anywhere. © National Instruments Corporation PX STAR 11 PXI STAR 8...

  • Page 17: Pxi Trigger Bus

    Chapter 1 Getting Started Local bus signals may range from high-speed TTL signals to analog signals as high as 42 V. Initialization software uses the configuration information specific to each adjacent peripheral module to evaluate local bus compatibility. Trigger Bus Buffer Bridge PXI Trigger Bus Segment 1 PXI Trigger Bus...

  • Page 18: System Reference Clock

    Measurement & Automation Explorer (MAX). Dynamic routing of triggers (automatic line assignments) is supported through certain National Instruments drivers like NI-DAQmx. Note Although any trigger line may be routed in either direction, it cannot be routed in more than one direction at a time.
  • Page 19 Chapter 1 Getting Started PXI_CLK10, PXIe_CLK100 and PXIe_SYNC100 have the default timing relationship described in Figure 1-6. 0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 PXIe_CLK100 PXI_CLK10 PXIe_SYNC100...
  • Page 20 OUT connector on the rear of the chassis. This clock is driven by an independent buffer. Refer to Appendix A, Specifications, for the specification information for the 10 MHz REF OUT signal on the rear panel of the chassis. © National Instruments Corporation Rear Chassis Panel Backplane PXI_CLK10, PXIe_CLK100 10 MHz REF IN...

  • Page 21: Pxie_Sync_Ctrl

    Chapter 1 Getting Started PXIe_SYNC_CTRL PXIe_SYNC100 is by default a 10 ns pulse synchronous to PXI_CLK10. The frequency of PXIe_SYNC100 is 10/n MHz, where n is a positive integer. The default for n is 1, giving PXIe_SYNC100 a 100 ns period. However, the backplane allows n to be programmed to other integers.

  • Page 22: Installation And Configuration

    • • • © National Instruments Corporation Chassis Grounding—The chassis requires a connection from the premise wire safety ground to the chassis ground. The earth safety ground must be connected during use of this equipment to minimize shock hazards.

  • Page 23: Chassis Cooling Considerations

    Part Replacement—Only service this equipment with parts that are exact replacements, both electrically and mechanically. Contact National Instruments for replacement part information. Installation of parts with those that are not direct replacements may cause harm to personnel operating the chassis. Furthermore, damage or fire may occur if replacement parts are unsuitable.
  • Page 24 Chapter 2 Installation and Configuration Dimensions are in inches (millimeters) 1.75 (44.45) 1.75 (44.45) NI PXIe-1065 3.00 (76.20) Figure 2-1. NI PXIe-1065 Cooling Clearances © National Instruments Corporation NI PXIe-1065 User Manual...

  • Page 25: Chassis Ambient Temperature Definition

    Chapter 2 Installation and Configuration 1 Primary Air Exhaust Vent 2 Primary Air Intake Vent Chassis Ambient Temperature Definition The chassis fan control system uses intake air temperature as the input for controlling fan speeds when in Auto Fan Speed mode. Because of this, the chassis ambient temperature is defined as the temperature that exists just outside of the fan intake vents on the rear of the chassis.

  • Page 26: Setting Fan Speed

    Refer to Rack Mounting Rack mount applications require the optional rack mount kits available from National Instruments. Refer to the instructions supplied with the rack mount kits to install your NI PXIe-1065 chassis in an instrument rack. Refer to Figure A-3,...

  • Page 27: Connecting To Power Source

    Chapter 2 Installation and Configuration If your power outlet does not have an appropriate ground connection, you must connect the premise safety ground to the chassis grounding screw located on the rear panel. Refer to Figure 1-2, NI PXIe-1065 the safety ground, complete the following steps: Connecting to Power Source Do not install modules prior to performing the following power-on test.
  • Page 28 1 NI PXI Express System Controller 2 NI PXIe-1065 Chassis © National Instruments Corporation system controller to the rear of the chassis, making sure that the injector/ejector handle is pushed down as shown in Figure 2-3. 3 Injector/Ejector Handle 4 System Controller Front Panel Mounting Screws (4x) Figure 2-3.

  • Page 29: Installing Peripheral Modules

    Chapter 2 Installation and Configuration Figure 2-4 shows a PXI Express system controller installed in the system controller slot of a NI PXIe-1065 chassis. You can place CompactPCI, CompactPCI Express, PXI, or PXI Express modules in other slots depending on the slot type. 1 NI PXIe-1065 Chassis Figure 2-4.
  • Page 30 1 Peripheral Module Front Panel Mounting Screws (2x) 2 NI PXI Express System Controller 3 NI PXIe-1065 Chassis © National Instruments Corporation Connect the AC power source to the PXI Express chassis before installing the module. The AC power cord grounds the chassis and protects it from electrical damage while you install the module.

  • Page 31: Power Inhibit Switch Led Indicator

    Chapter 2 Installation and Configuration Power Inhibit Switch LED Indicator The chassis power inhibit switch has an integrated LED. This LED indicates one of four different conditions: • • • • If two system fans or both of the power supply fans fail the chassis will shut down Note automatically, preventing the chassis and modules from damage due to overheating.
  • Page 32 If the voltages fall within the specified ranges, the chassis complies with the CompactPCI voltage-limit specifications. © National Instruments Corporation DB-9 Pin Table 2-2. Power Supply Voltages at Voltage Monitoring Connector (DB-9) Supply +5 V +3.3 V...

  • Page 33: Inhibit Mode Switch

    Chapter 2 Installation and Configuration Inhibit Mode Switch On the rear panel of the chassis there is an Inhibit Mode switch. Refer to Figure 1-2, Inhibit Mode switch is recessed to prevent it from accidentally being switched. The Inhibit Mode switch should be in the Default position when normal power inhibit switch functionality is desired.

  • Page 34: Pxi-1 System Configuration

    PXI triggers, refer to KnowledgeBase 3TJDOND8 at The configuration steps for single or multiple-chassis systems are the same. PXI-1 System Configuration © National Instruments Corporation ni.com/support Figure 2-6. Multichassis Configuration in MAX Launch MAX. In the Configuration tree, click the Devices and Interfaces branch to expand it.

  • Page 35: Trigger Configuration In Max

    Static reservation pre-allocates a trigger line to prevent its configuration by a user program. Dynamic reservation/routing/deallocation is on the fly within a user program based upon National Instruments APIs such as NI-DAQmx. Static reservation of trigger lines can be implemented by the user in MAX through the Triggers tab.

  • Page 36: Pxi Trigger Bus Routing

    Complete the following steps to reserve these trigger lines in MAX. PXI Trigger Bus Routing Some National Instruments chassis, such as the PXI-1065 and the PXI-1044/1045, have the capability to route triggers from one bus to others within the same chassis using the Trigger Routing tab in MAX, as shown in Figure 2-6.

  • Page 37: Using System Configuration And Initialization Files

    Chapter 2 Installation and Configuration Using System Configuration and Initialization Files The PXI Express specification allows many combinations of PXI Express chassis and system modules. To assist system integrators, the manufacturers of PXI Express chassis and system modules must document the capabilities of their products.

  • Page 38: Maintenance

    Always disconnect the AC power cable before cleaning or servicing the chassis. Interior Cleaning Use a dry, low-velocity stream of air to clean the interior of the chassis. Use a soft-bristle brush for cleaning around components. © National Instruments Corporation NI PXIe-1065 User Manual...

  • Page 39: Exterior Cleaning

    Complete the procedure described in the section of Chapter 2, Installation and switch LED is not a steady green, contact National Instruments. Verify that the NI PXIe-1065 chassis can meet the power requirements of your CompactPCI or PXI Express modules. Overloading the chassis can cause the breaker to trip.

  • Page 40: Replacing The Modular Power Supply

    Replace and tighten the ten screws with a Phillips screwdriver. © National Instruments Corporation The over-current condition that caused the circuit breaker to trip may be due to a faulty CompactPCI or PXI Express module. Refer to the documentation supplied with the modules for troubleshooting information.

  • Page 41: Configuration

    Chapter 3 Maintenance Configuration The fan-speed selector switch is on the rear panel of the power supply shuttle. Refer to Figure 1-2, to locate the fan-speed selector. Select High for maximum cooling performance (recommended) or Auto for quieter operation. Set the Inhibit Mode switch to the Default position.

  • Page 42: Specifications

    Line regulation Efficiency ... 70% typical Power disconnect ... The AC power cable provides The operating range is guaranteed by design. © National Instruments Corporation ... 90 to 264 VAC ... 47 to 63 Hz 3.3 V... <±0.2% 5 V... <±0.1% ±12 V ...
  • Page 43 Appendix A Specifications DC Output DC current capacity (I +3.3 V +5 V +12 V –12 V Note Maximum combined +3.3 V, +5 V, and +12 V power is 699 W. Maximum total power is 701.5 W. The maximum power dissipated in the system slot should not exceed 140 W. Backplane pin current capacity Slot System Controller Slot...

  • Page 44: Chassis Cooling

    Module cooling exhaust ... Along both sides and top of Power supply cooling system... Forced air circulation through Power supply cooling intake ... Right side of chassis Power supply cooling exhaust... Left side of chassis © National Instruments Corporation Voltage +3.3 V +12 V +5 V –12 V...

  • Page 45: Operating Environment

    Appendix A Specifications Environmental Maximum altitude...2,000 m (800 mbar) Pollution Degree ...2 For indoor use only. Operating Environment Ambient temperature range ...0 to 55 °C Relative humidity range...10 to 90%, noncondensing Storage Environment Ambient temperature range ...–40 to 71 °C Relative humidity range...5 to 95%, noncondensing Shock and Vibration Operational shock ...30 g peak, half-sine, 11 ms pulse...

  • Page 46: Electromagnetic Compatibility

    • Note For the standards applied to assess the EMC of this product, refer to the Product Certification © National Instruments Corporation IEC 61010-1, EN 61010-1 UL 61010-1, CSA 61010-1 section. EN 61326 (IEC 61326): Class A emissions; Basic immunity...

  • Page 47: Online Product Certification

    Waste Electrical and Electronic Equipment (WEEE) EU Customers At the end of their life cycle, all products must be sent to a WEEE recycling center. For more information about WEEE recycling centers and National Instruments WEEE initiatives, visit National Instruments...
  • Page 48 100 MHz System Reference Clock: PXIe_CLK100 and PXIe_SYNC100 Maximum slot-to-slot skew ... 100 ps Accuracy ... ±25 ppm max. (guaranteed over © National Instruments Corporation Appendix A (with three system expansion slots) and 17 peripheral slots. Compliant with IEEE 1101.10 mechanical packaging.

  • Page 49: External Clock Source

    Appendix A Specifications Maximum jitter ...3 ps RMS phase-jitter Duty-factor for PXIe_CLK100...45%–55% Absolute single-ended voltage swing (When each line in the differential pair has 50 W termination to 1.30 V or Thévenin equivalent)...400–1000 mV Note For other specifications refer to the PXI-5 PXI Express Hardware Specification. External 10 MHz Reference Out (BNC on rear panel of chassis) Accuracy ...±25 ppm max.

  • Page 50: Pxi Star Trigger

    0.57 in. (14.5 mm) is added to height when feet are installed. When tilted with front feet extended on table top, height is increased approximately 2.08 in. (52.8 mm) in front and 0.583 in. (14.8 mm) in rear. © National Instruments Corporation ... 2.0–5.5 V ... 0–0.8 V Started.
  • Page 51 Appendix A Specifications Weight ...12.8 kg (28.2 lb) Chassis materials ...Sheet Aluminum (5052-H32, Finish ...Conductive Clear Iridite NI PXIe-1065 User Manual 3003-H14, and 6061-T6), Extruded Aluminum (6060-T6), and Cold Rolled Steel, PC-ABS, Santoprene, Nylon on Aluminum Electroplated Nickel on Cold Rolled Steel Polyurethane Enamel A-10 ni.com...
  • Page 52 1.82 (46.3) 1.58 (40.1) Front of PXI Card 2.12 (53.8) 3.19 (81.1) © National Instruments Corporation 17.54 (445.6) 10.21 (259.1) 0.30 (7.25) 17.11 (434.6) Figure A-1. NI PXIe-1065 Chassis Dimensions (Front and Side) A-11 Appendix A Specifications (9.9) NI PXIe-1065 6.97...
  • Page 53 Appendix A Specifications Dimensions are in inches (millimeters) 12.700 (322.58) 2.524 (64.11) 15.504 (393.8) 1.017 (25.83) Figure A-2. NI PXIe-1065 Chassis Dimensions (Bottom) NI PXIe-1065 User Manual A-12 ni.com...
  • Page 54 3 Optional Rear Rack Mount Kit Figure A-3. NI Chassis Rack Mount Kit Components The chassis shown in Figure A-3 is representative of the NI PXI-1044/1045 and Note NI PXIe-1065 product line. © National Instruments Corporation A-13 NI PXIe-1065 User Manual...
  • Page 55 Table B-13 shows the XP4 Connector Pinout for the Hybrid peripheral slots. For more detailed information, refer to the PXI-5 PXI Express Hardware Specification, Revision 2.0. Contact the PXI Systems Alliance for a copy of the specification. © National Instruments Corporation NI PXIe-1065 User Manual...
  • Page 56 Appendix B Pinouts System Controller Slot Pinouts Table B-2. XP2 Connector Pinout for the System Controller Slot 3PETp1 3PETn1 3PETp3 3PETn3 4PETp0 4PETn0 4PETp2 4PETn2 4PETp3 4PETn3 Table B-3. XP3 Connector Pinout for the System Controller Slot SMBDAT SMBCLK PERST# 1PETp0 1PETn0 1PETp2...
  • Page 57 PXIe_DSTARC4+ PXIe_DSTARC4– PXIe_DSTARB4+ PXIe_DSTARB4– PXIe_DSTARA4+ PXIe_DSTARA4– PXIe_DSTARC5+ PXIe_DSTARC5– PXIe_DSTARB5+ PXIe_DSTARB5– PXIe_DSTARA5+ PXIe_DSTARA5– PXIe_DSTARC6+ PXIe_DSTARC6– PXIe_DSTARB6+ PXIe_DSTARB6– PXIe_DSTARA6+ PXIe_DSTARA6– © National Instruments Corporation 1PERp3 1PERn3 2PERp1 2PERn1 2PERp2 2PERn2 3PERp0 3PERn0 SYSEN# PXI_TRIG4 PXI_TRIG5 PXI_TRIG0 PXI_STAR12 PXI_STAR13 PXI_STAR14 PXI_STAR15 PXI_STAR16 Appendix B...
  • Page 58 Appendix B Pinouts Table B-6. TP2 Connector Pinout for the System Timing Slot PXIe_DSTARB1+ PXIe_DSTARB1– PXIe_DSTARA1+ PXIe_DSTARA1– PXIe_DSTARC2+ PXIe_DSTARC2– PXIe_DSTARB2+ PXIe_DSTARB2– PXIe_DSTARA2+ PXIe_DSTARA2– PXIe_DSTARC3+ PXIe_DSTARC3– PXIe_DSTARB3+ PXIe_DSTARB3– Table B-7. XP3 Connector Pinout for the System Timing Slot PXIe_CLK100+ PXIe_CLK100– PRSNT# PWREN# SMBDAT SMBCLK...
  • Page 59 AD[7] 3.3V AD[12] 3.3V SERR# 3.3V DEVSEL# 3.3V 12–14 AD[18] AD[21] C/BE[3]# AD[26] AD[30] REQ# BRSVP1A5 IPMB_PWR INTA# © National Instruments Corporation REQ64# ENUM# V(I/O) AD[4] AD[3] 3.3V AD[9] AD[8] V(I/O) AD[15] AD[14] 3.3V IPMB_SCL IPMB_SDA V(I/O) FRAME# IRDY# Key Area...
  • Page 60 Appendix B Pinouts Table B-10. P2 Connector Pinout for the Peripheral Slot PXI_LBR0 PXI_LBR4 PXI_LBL2 PXI_TRIG3 PXI_TRIG2 PXI_TRIG1 PXI_BRSVA15 V(I/O) PXI_LBR7 PXI_LBR11 PXI_LBL9 NI PXIe-1065 User Manual PXI_LBR1 PXI_LBR5 PXI_LBL0 PXI_LBL3 PXI_TRIG4 PXI_TRIG5 PXI_TRIG0 V(I/O) V(I/O) V(I/O) V(I/O) V(I/O) 64EN# PXI_LBR8 PXI_LBR12 PXI_LBL10...
  • Page 61 AD[7] 3.3V AD[12] 3.3V SERR# 3.3V DEVSEL# 3.3V 12–14 AD[18] AD[21] C/BE[3]# AD[26] AD[30] REQ# BRSVP1A5 IPMB_PWR INTA# © National Instruments Corporation REQ64# ENUM# V(I/O) AD[4] AD[3] 3.3V AD[9] AD[8] V(I/O) AD[15] AD[14] 3.3V IPMB_SCL IPMB_SDA V(I/O) FRAME# IRDY# Key Area...
  • Page 62 Appendix B Pinouts Table B-12. XP3 Connector Pinout for the Hybrid Slot PXIe_CLK100+ PXIe_CLK100– PRSNT# PWREN# SMBDAT SMBCLK MPWRGD* PERST# 1PETp0 1PETn0 1PETp2 1PETn2 1PETp3 1PETn3 1PETp5 1PETn5 1PETp6 1PETn6 Table B-13. XP4 Connector Pinout for the Hybrid Slot 5Vaux PXI_TRIG3 PXI_TRIG2 PXI_TRIG1...

  • Page 63: Technical Support And Professional Services

    Technical Support and Professional Services Visit the following sections of the award-winning National Instruments Web site at • • • © National Instruments Corporation for technical support and professional services: ni.com Support—Technical support at following resources: – Self-Help Technical Resources—For answers and solutions,...
  • Page 64 Appendix C Technical Support and Professional Services • If you searched your local office or NI corporate headquarters. Phone numbers for our worldwide offices are listed at the front of this manual. You also can visit the Worldwide Offices section of office Web sites, which provide up-to-date contact information, support phone numbers, email addresses, and current events.
  • Page 65 Equal or greater than. ≤ Equal or less than. Percent. Amperes. Alternating current. ANSI American National Standards Institute. Auto Automatic fan speed control. American Wire Gauge. © National Instruments Corporation Value –12 –9 – 6 –3 tera NI PXIe-1065 User Manual...
  • Page 66 Glossary backplane An assembly, typically a printed circuit board, with connectors and signal paths that bus the connector pins. Bayonet Neill Concelman connector; a commonly used coaxial connector. Celsius. Cubic feet per minute. Code of Federal Regulations. Centimeters. CompactPCI An adaptation of the Peripheral Component Interconnect (PCI) Specification 2.1 or later for industrial and/or embedded applications requiring a more robust mechanical form factor than desktop PCI.
  • Page 67 Hours. Hertz; cycles per second. International Electrotechnical Commission; an organization that sets international electrical and electronics standards. IEEE Institute of Electrical and Electronics Engineers. Mainframe peak current. © National Instruments Corporation Glossary NI PXIe-1065 User Manual...
  • Page 68 Glossary Inches. inhibit To turn off. jitter A measure of the small, rapid variations in clock transition times from their nominal regular intervals. Units: seconds RMS. Kilograms. Kilometers. Pounds. Light emitting diode. line regulation The maximum steady-state percentage that a DC voltage output will change as a result of a specified change in input AC voltage (step change from 90 to 132 VAC or 180 to 264 VAC).
  • Page 69 PXI system in that it performs the system controller functions, including clock sourcing and arbitration for data transfers across the backplane. Installing such a device into any other slot can damage the device, the PXI backplane, or both. © National Instruments Corporation Glossary NI PXIe-1065 User Manual...
  • Page 70 Glossary system reference A 10 MHz clock, also called PXI_CLK10, that is distributed to all clock peripheral slots in the chassis, as well as a BNC connector on the rear of chassis labeled 10 MHz REF OUT. The system reference clock can be used for synchronization of multiple modules in a measurement or control system.
  • Page 71 (figure), 2-4 chassis initialization file, 2-16 chassis ventilation (figure), 2-4 clearances for chassis cooling, 2-2 figure, 2-3 CLK10 rear connectors, 2-12 © National Instruments Corporation CompactPCI interoperability with NI PXIe-1065 backplane, 1-6 configuration in MAX (figure), 2-13 configuration. See installation, configuration, and operation connector pinouts.
  • Page 72 3-1 preparation, 3-1 resetting the AC mains circuit breaker, 3-2 service interval, 3-1 static discharge damage (caution), 3-1 National Instruments support and services, C-1 NI PXIe-1065 fan speed, setting, 2-5 front view (figure), 1-4 installation. See installation, configuration, and operation...
  • Page 73 P1 connector (table), B-5 P2 connector (table), B-6 pinouts, B-1 DB-9 connector (table), 2-10 power cables (table), 1-2 power inhibit switch LED indicator, 2-10 © National Instruments Corporation power supply connecting to, 2-6 remote voltage monitoring and inhibiting interface, 2-10 replacing, 3-3...
  • Page 74 Index remote voltage monitoring and inhibiting interface, 2-10 replacing the power supply, 3-3 safety and caution notices, 2-1 safety ground, connecting, 2-5 safety, specifications, A-5 service interval, 3-1 setting fan speed, 2-5 slot blocker installation, 2-5 kit, 1-6 software (NI resources), C-1 specifications acoustic emissions sound power, A-5...
  • Page 75 NI PXIe-1065 chassis, 1-1 voltage monitoring connector. See DB-9 connector voltages at voltage monitoring connector (DB-9) (table), 2-11 © National Instruments Corporation Web resources, C-1 WEEE information, A-6 Index NI PXIe-1065 User Manual...
