VS-44DT Quick Start Guide
This guide helps you install and use your VS-44DT for the first time.
Go to
upgrades are available.
Scan for full manual
Step 1: Check what's in the box

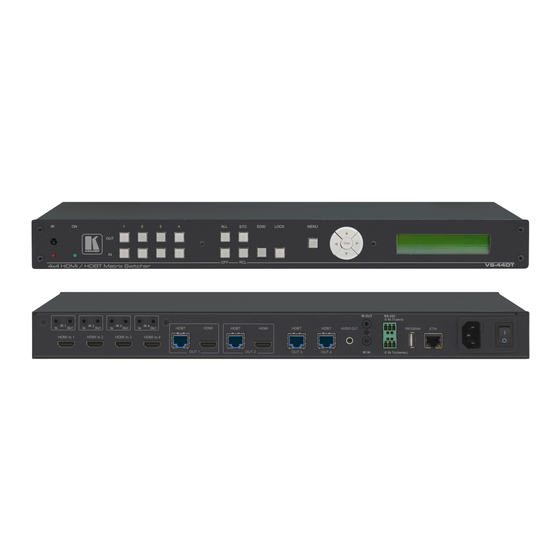

VS-44DT 4x4 HDMI/HDBT Matrix Switcher
IR remote control transmitter with batteries

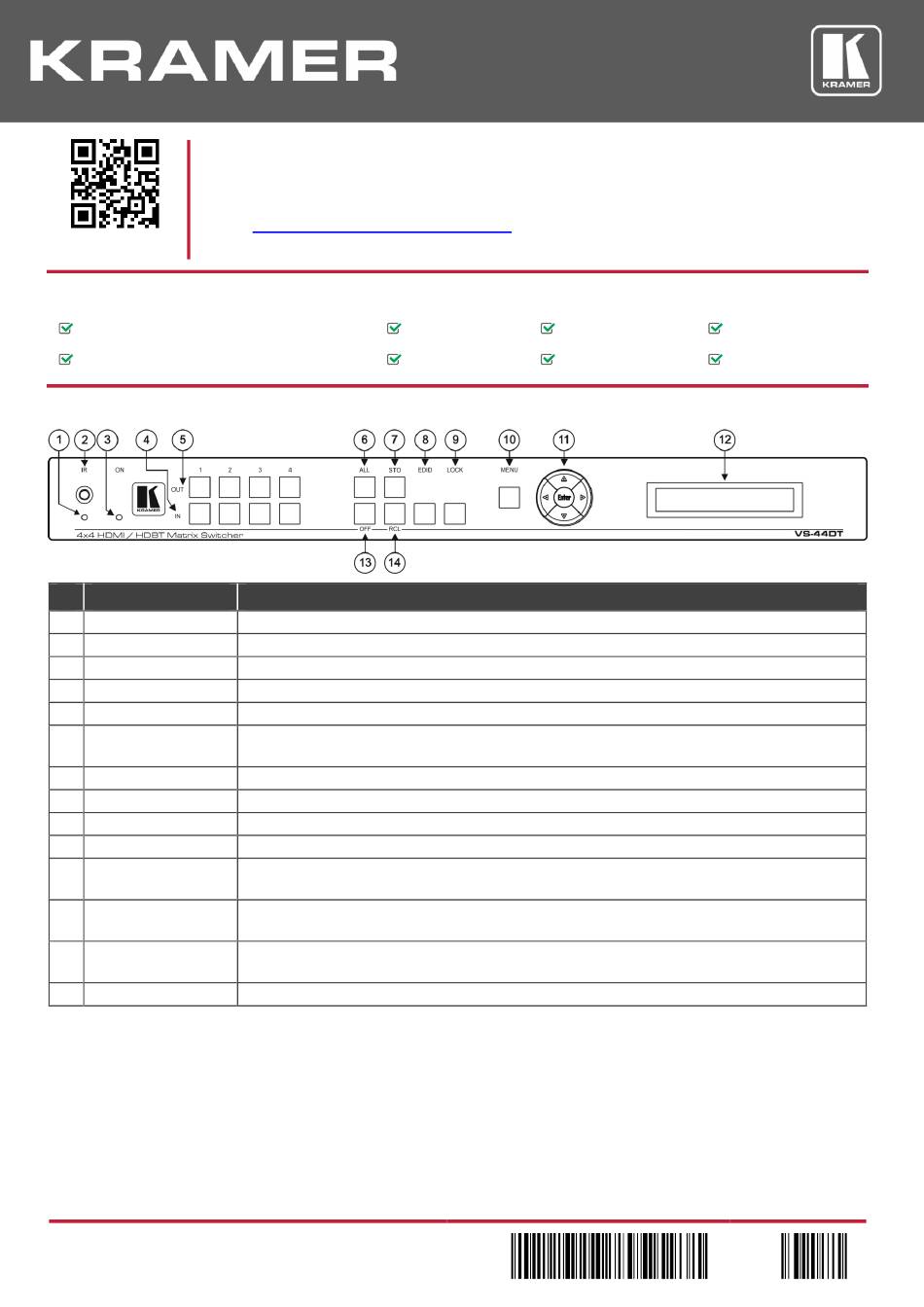

Step 2: Get to know your VS-44DT
# Feature
1 IR LED
2 IR Sensor
3 POWER LED
4 IN Buttons
5 OUT Buttons
6 ALL Button
7 STO Button
8 EDID Button
9 LOCK Button
10 MENU Button
11 Menu Navigation Pad
12 LCD Readout
(20 char x 2 lines)
13 OFF Button
14 RCL Button
VS-44DT Quick Start (P/N: 2900-300686QS REV 2)
www.kramerav.com/downloads/VS-44DT
1 Set of rack ears
1 Power cord
Function
Lights yellow when receiving an IR signal
IR receiver for remote control
Lights green when the device is powered on
Press to select an input after selecting an output (from 1 to 4)
Press to select an output followed by an input or OFF (from 1 to 4)
Press, followed by an input to switch this input to all the outputs, or press, followed by the Off button to
disconnect all the outputs
Press to store a preset configuration followed by the preset number in which to save it
Press to copy the EDID from an output to an input
Press and hold to lock the front panel buttons. Press and hold again to unlock
Press to enter the configuration menu or to move up one level when inside the menu
Use the Enter, up (▲), down (▼), left (◄), and right (►) buttons to navigate the menu or to modify
parameters or values within the menu
Displays either the input/output matrix currently selected or the menu during configuration
Press after an output button to disconnect the currently selected outputs from the inputs. Press after the
All button to disconnect all currently switched outputs
Press, followed by a preset number to recall the preset configuration
to download the latest user manual and check if firmware
4 IR receiver cables
4 IR emitter cables
P/N: 2 9 0 0 - 3 0 0 6 8 6 QS
4 Rubber feet
1 Quick start guide
Rev: 2
