Kramer VS-44DT Quick Start Manual

VS-44DT
4x4 4K60 4:2:0 HDMI/HDBaseT
Extended−Reach PoE Matrix Switcher
FEATURES
Max. Data
Max. Resolution - 4K@60Hz (4:2:0) and WUXGA
HDBaseT
180m (590ft) ultra mode (1080p @60Hz @24bpp) when using BC−UNIKAT cables
Cables - For optimum range and performance, use the recommended Kramer cables available at
www.kramerav.com/product/VS−44DT
HDBaseT
Outputs - 4 HDBaseT with outputs 1 and 2 having simultaneous HDMI outputs
PoE Support - PoE provider to HDBaseT receivers such as the TP−588D and TP−780RXR
HDTV Compatible
HDCP Compliant
EDID Capture - Copies and stores the EDID from a display device
HDMI Support - 3D, Deep Color, x.v.Color™, Lip Sync, Dolby® TrueHD, Dolby Digital Plus,
DTS−HD® and 7.1 PCM
Non-Volatile
Automatic Output
Kramer Protocol 3000 Support
Lock Button - Prevents unwanted tampering with the settings
Flexible Control
Worldwide Power
Rate - 10.2Gbps (3.4Gbps per graphic channel)
Range - Up to 130m (430ft) at normal mode (2K), up to 100m at normal mode (4K); up to
Extension - Includes Video, Audio, Ethernet, RS−232 and IR signals
Memory - Stores and recalls preset matrix configurations
Shutdown - If no input signal is detected after a configurable idle period
Options - Embedded Web server, RS−232, IR remote (included)
Supply - 100−240V AC
| HDMI | Ethernet - RJ-45 | HDBaseT

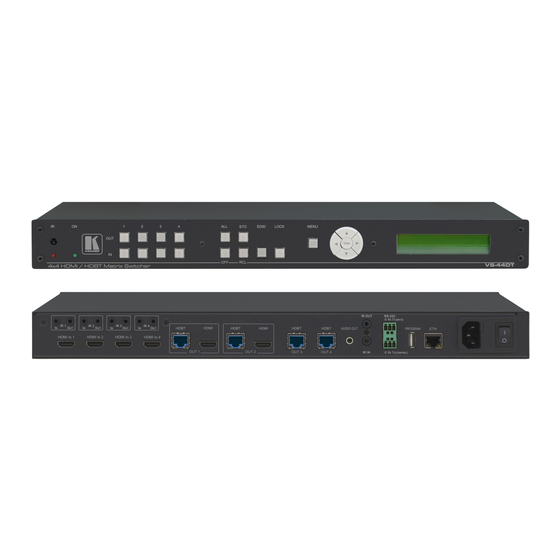

VS−44DT is a 4x4 4K@60Hz (4:2:0) HDMI/HDBaseT
matrix switcher that transmits video, audio, Ethernet,
RS−232 and IR signals over extended distances. The
unit accepts up to four HDMI and four IR inputs as
well as Ethernet and RS−232 network and control. The
inputs can be routed to any or all of the four HDBaseT
outputs, the first two of which also have simultaneous
HDMI outputs. VS−44DT connects to compatible
H D B a s e T r e c e i v e r s s u c h a s , T P − 7 8 0 R X R ,
TP−580RXR and TP−588D. It supports resolutions of
up to 4K@60Hz (4:2:0) and WUXGA. The matrix is a
PoE provider that provides power over Ethernet to
compatible PoE receivers
