Summary of Contents for Kramer VS-44AV
- Page 1 Kramer Electronics, Ltd. Preliminary USER MANUAL Models: VS-44AV, 4x4 Video Audio Matrix Switcher VS-81AV, 8x1 Video/Audio-Stereo Switcher VS-81AYC, 8x1 s-Video/Audio-Stereo Switcher VS-81V, 8x1 Video Switcher VS-81X, 8x1 Balanced Audio Switcher...
-
Page 2: Table Of Contents
Connecting a VS-81V 8x1 Video Switcher Connecting a VS-81X Balanced Audio Switcher Connecting a VS-81AV 8x1 Video/Audio-Stereo Switcher Figures Figure 1: VS-44AV 4x4 Video Audio Matrix Switcher Figure 2: VS-81AV 8x1 Video/Audio-Stereo Switcher Figure 3: VS-81AYC 8x1 s-Video/Audio-Stereo Switcher Figure 4: VS-81V 8x1 Video Switcher... -
Page 3: Introduction
GROUP 7: Scan Converters and Scalers; GROUP 8: Cables and Connectors; GROUP 9: Room Connectivity; GROUP 10: Accessories and Rack Adapters; GROUP 11: Sierra Products 2 The complete list of Kramer cables is on our Web site at http://www.kramerelectronics.com 3 Download up-to-date Kramer user manuals from our Web site at... -
Page 4: Kramer Mechanical Switchers

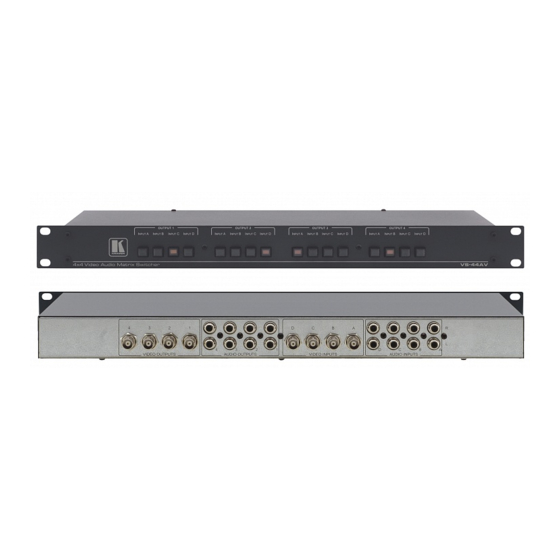

The VS-44AV is designed to simultaneously route up to 4 sources each to any one of 4 available outputs. The VS-44AV is unique in allowing 4 different cross points of video and stereo audio to operate at the same time. -
Page 5: Your Vs-81Av 8X1 Video/Audio-Stereo Switcher
WEIGHT: 1.6kg (3.5lbs) approx. Your VS-81AV 8x1 Video/Audio-Stereo Switcher The Kramer VS-81AV, 8x1 Video/Audio-Stereo Switcher is a high-quality mechanical 8x1 switcher for composite video and stereo audio signals. The VS-81AV is designed for applications requiring an unpowered rack- mountable unit for routing of video and stereo audio signals. Audio is always switched together with the corresponding video signal and unselected video inputs are terminated via 75Ω... -
Page 6: Your Vs-81Ayc 8X1 S-Video/Audio-Stereo Switcher
WEIGHT: 1.5kg (3.3lbs) approx. Your VS-81AYC 8x1 s-Video/Audio-Stereo Switcher The Kramer VS-81AYC, 8x1 s-Video/Audio-Stereo Switcher is a high quality mechanical 8x1 switcher for s-Video (Y/C) and stereo audio signals using 4-pin and RCA connectors. The VS-81AYC is designed for applications requiring an unpowered rack mountable unit for the routing of s-Video (Y/C) and stereo audio signals. -
Page 7: Your Vs-81V 8X1 Video Switcher
1.4kg (3.1lbs) approx. Your VS-81V 8x1 Video Switcher The Kramer VS-81V, 8x1 Video Switcher is a high quality mechanical 8x1 switcher for composite video using BNC connectors. The VS-81V is designed for applications requiring a compact desktop unit for routing composite video signals. -
Page 8: Figure 4: Vs-81V 8X1 Video Switcher
Mechanical, break-before-make CROSSPOINTS: 1 of 8 VIDEO CROSSTALK: -47dB @5MHz BANDWIDTH (-3dB): 400 MHz DIMENSIONS: 18.8cm x 10.2cm x 4.4cm (7.4" x 4" x 1.7") W, D, H. WEIGHT: 0.72kg (1.6lbs) approx. OPTIONS: RK-81 19" rack adapter KRAMER: SIMPLE CREATIVE TECHNOLOGY... -
Page 9: Your Vs-81X 8X1 Balanced Audio Switcher
Kramer Mechanical Switchers Your VS-81X 8x1 Balanced Audio Switcher The Kramer VS-81X, 8x1 Balanced Audio Switcher is a high quality mechanical 8x1 switcher for mono balanced audio using XLR connectors. The VS-81X is designed for applications requiring a compact desktop unit for routing audio signals. -
Page 10: Connecting Kramer Mechanical Switchers
Connecting Kramer Mechanical Switchers Connecting Kramer Mechanical Switchers This section gives examples of how to connect Kramer mechanical switchers. • To connect a mechanical video switcher, see the example in section • To connect a mechanical audio switcher, see the example in section •... -
Page 11: Connecting A Vs-81X Balanced Audio Switcher
Connecting Kramer Mechanical Switchers Connecting a VS-81X Balanced Audio Switcher To connect your VS-81X Balanced Audio Switcher, as the example in Figure 7 illustrates: 1. Connect up to 8 balanced audio sources to the 8 XLR input connectors. 2. Connect the XLR OUTPUT connector to the audio acceptor. -
Page 12: Connecting A Vs-81Av 8X1 Video/Audio-Stereo Switcher
Connecting Kramer Mechanical Switchers 8x1 Video/Audio-Stereo Connecting a VS-81AV Switcher 8x1 Video/Audio-Stereo Switcher To connect your VS-81AV , as the example in Figure 8 illustrates: 1. Connect up to 8 composite video sources to the VIDEO IN BNC connectors. 2. Connect up to 8 audio sources to the AUDIO IN RCA connectors making sure that the audio and video inputs match (that is, from Player 1, connect the video to VIDEO IN 1 and the audio to AUDIO IN 1, and so on.) - Page 13 EXCLUSION OF DAMAGES The liability of Kramer for any effective products is limited to the repair or replacement of the product at our option. Kramer shall not be liable for: 1. Damage to other property caused by defects in this product, damages based upon inconvenience, loss of use of the product, loss of time, commercial loss;...
- Page 14 For the latest information on our products and a list of Kramer distributors, visit our Web site: www.kramerelectronics.com where updates to this user manual may be found. We welcome your questions, comments and feedback. Safety Warning: Disconnect the unit from the power supply before opening/servicing.
