Proper protection, such as gloves, eye wear, and aprons, are recommended when disassembling a Dosatron.
D8RE2 Troubleshooting - Part 1
This D8RE2 - 40 GPM Troubleshooting Part 1 will cover: The injector is clicking, but not
drawing the concentrate.
800-523-8499
www.dosatronusa.com

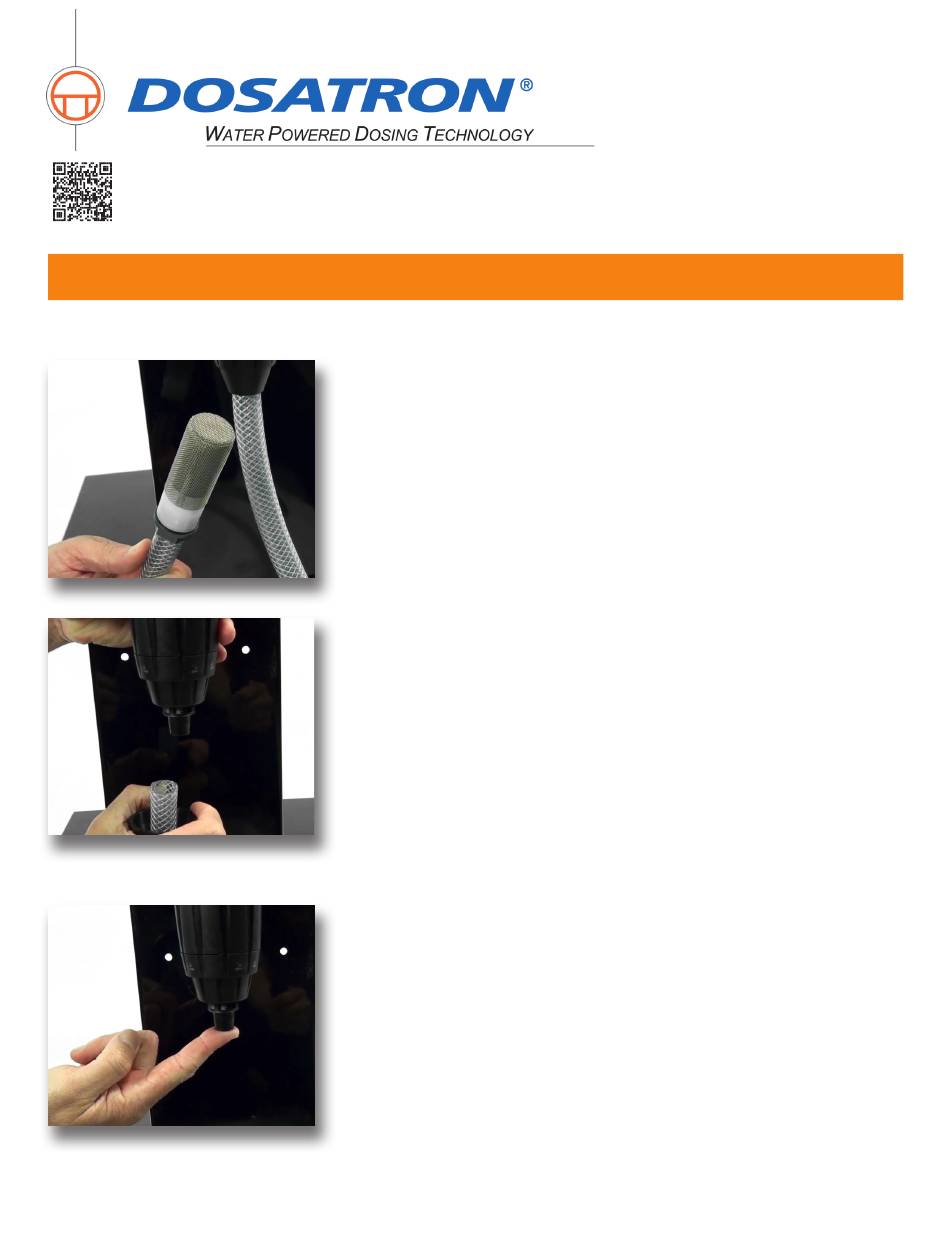

Step 1: Take a look at the strainer. If it is clogged clean it and
retest your Dosatron. If there is still no suction but the Dosatron is
clicking turn the water on.
Step 2: Unscrew and remove the suction hose nut and hose.
Step 3: Then, check to see if you feel suction on your finger.
