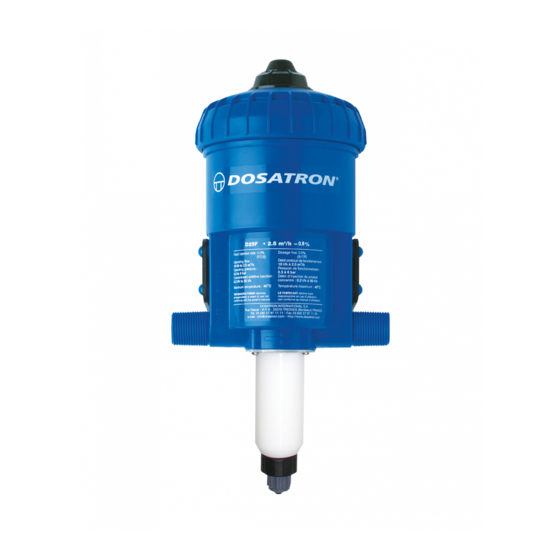

dosatron D25F Troubleshooting Manual
Hide thumbs
Also See for D25F:
- Owner's manual (135 pages) ,
- Owner's manual (29 pages) ,
- Service (8 pages)
Advertisement
Quick Links
Scan the QR code
to watch our D25F
- Troubleshooting
video.
Proper protection, such as gloves, eye wear, and aprons, are recommended when disassembling a Dosatron.
D25F Troubleshooting - Part 1
This D25F Troubleshooting will cover: The Medicator is not drawing the concentrate,
but is
clicking.
800-523-8499
www.dosatronusa.com
NOTE: To service your D25F Medicator you will need a strap
wrench (Part #TOOL01) and a small tip Phillips head screwdriver.

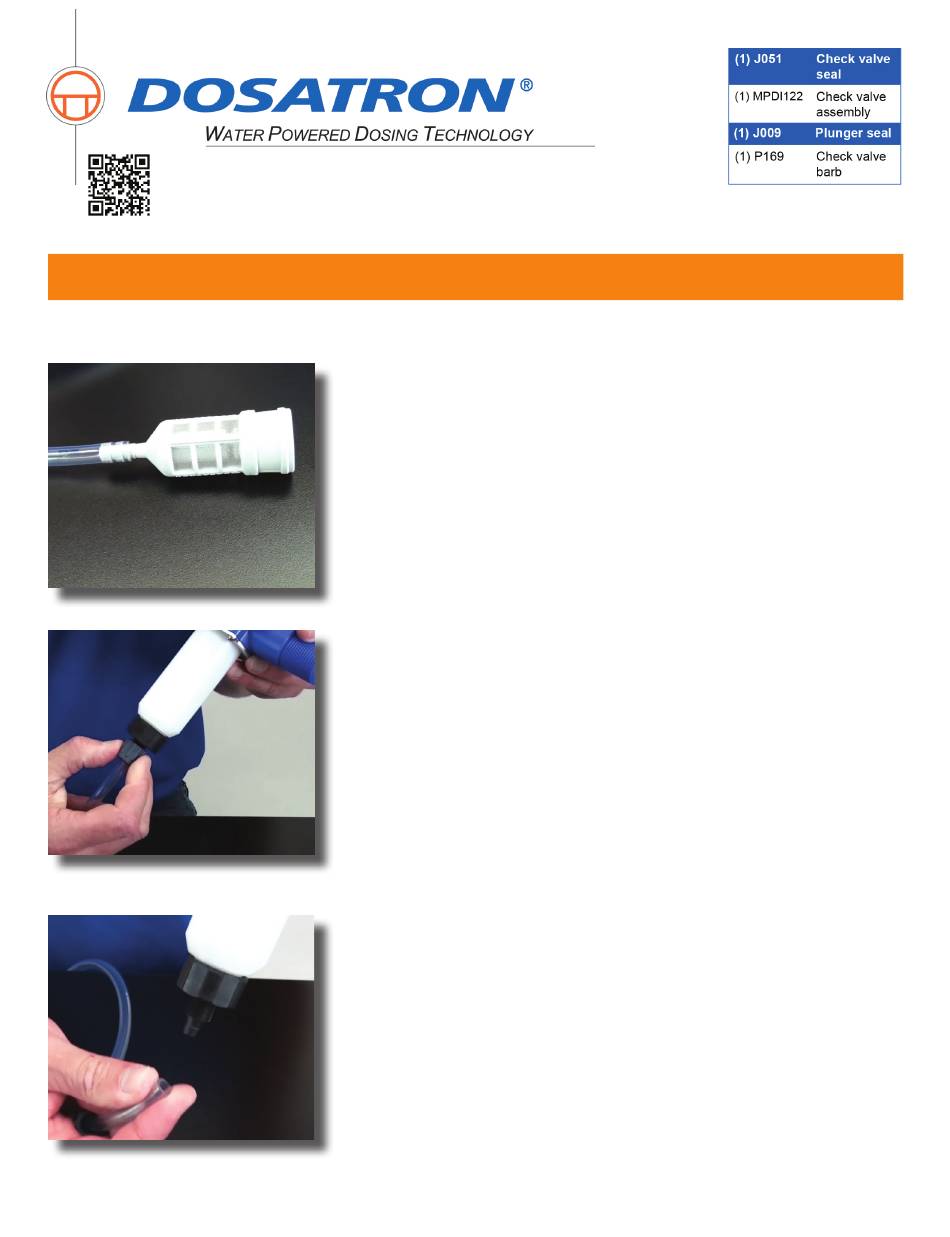

Step 1: If your Medicator is clicking, but not drawing concentrate,
it could be as simple as the strainer is plugged with debris. Take
a look at the strainer. If it is clogged, clean it out and re-test your
Dosatron.
Step 2: If there is still no suction, turn the water on. If the
Medicator is clicking, unscrew and remove the suction hose nut.
Step 3: Then, remove the hose.
Page 1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for dosatron D25F
Summary of Contents for dosatron D25F
- Page 1 D25F - Troubleshooting www.dosatronusa.com video. Proper protection, such as gloves, eye wear, and aprons, are recommended when disassembling a Dosatron. D25F Troubleshooting - Part 1 This D25F Troubleshooting will cover: The Medicator is not drawing the concentrate, but is clicking.
- Page 2 800-523-8499 www.dosatronusa.com Proper protection, such as gloves, eye wear, and aprons, are recommended when disassembling a Dosatron. D25F Troubleshooting - Part 1 Step 4: Check to see if you feel suction on your finger. Step 5: If you feel suction, just cut a half inch off the top of the hose and reattach.
- Page 3 800-523-8499 www.dosatronusa.com Proper protection, such as gloves, eye wear, and aprons, are recommended when disassembling a Dosatron. D25F Troubleshooting - Part 1 Step 7: Using a strap wrench (Part #: TOOL01), loosen the lid. Step 8: Unscrew to remove. Step 9: Grasp the white valve support and pull the piston straight out of the body.
- Page 4 800-523-8499 www.dosatronusa.com Proper protection, such as gloves, eye wear, and aprons, are recommended when disassembling a Dosatron. D25F Troubleshooting - Part 1 Step 10: Take a close look at the plunger seal for nicks, scratches, or wear. If you see damage or don’t remember the last time you changed the seal, just replace it now.
- Page 5 800-523-8499 www.dosatronusa.com Proper protection, such as gloves, eye wear, and aprons, are recommended when disassembling a Dosatron. D25F Troubleshooting - Part 1 D25F Troubleshooting - Part 1 Step 13: Carefully, insert the piston into the body. Step 14: Replace the lid, hand tight. Your Medicator should now be drawing the concentrate.
- Page 6 800-523-8499 www.dosatronusa.com Proper protection, such as gloves, eye wear, and aprons, are recommended when disassembling a Dosatron. D25F Troubleshooting - Part 2 This D25F Troubleshooting will cover: The Medicator is pushing water down into your stock solution tank, but is clicking.
- Page 7 800-523-8499 www.dosatronusa.com Proper protection, such as gloves, eye wear, and aprons, are recommended when disassembling a Dosatron. D25F Troubleshooting - Part 2 Step 4: Remove the check valve seal (Part #: J051). Step 5: Then carefully pry the check valve assembly down and out of the stem.
- Page 8 800-523-8499 www.dosatronusa.com Proper protection, such as gloves, eye wear, and aprons, are recommended when disassembling a Dosatron. D25F Troubleshooting - Part 2 Step 7: To reassemble, press the new check valve assembly into the stem as far as it will go.
- Page 9 800-523-8499 www.dosatronusa.com Proper protection, such as gloves, eye wear, and aprons, are recommended when disassembling a Dosatron. D25F Troubleshooting - Part 2 Step 10: Thread the suction hose nut onto the hose. Step 11: Slide it onto the barb. Step 12: Hand tighten the nut. This should stop the water from dripping back into the stock tank.
- Page 10 800-523-8499 www.dosatronusa.com Proper protection, such as gloves, eye wear, and aprons, are recommended when disassembling a Dosatron. D25F Troubleshooting - Part 3 This D25F Troubleshooting will cover: The Medicator is not clicking. Step 1: If the Medicator isn’t clicking, unscrew and remove the lid.
- Page 11 800-523-8499 www.dosatronusa.com Proper protection, such as gloves, eye wear, and aprons, are recommended when disassembling a Dosatron. D25F Troubleshooting - Part 3 Step 4: Press the pushrod down. Step 5: Check the two actuator springs (Part #: M238) on the bottom.
- Page 12 800-523-8499 www.dosatronusa.com Proper protection, such as gloves, eye wear, and aprons, are recommended when disassembling a Dosatron. D25F Troubleshooting - Part 3 Step 7: To replace the piston shell, use a small tip Phillips screwdriver and remove the valve support screw and plastic retainer.
- Page 13 800-523-8499 www.dosatronusa.com Proper protection, such as gloves, eye wear, and aprons, are recommended when disassembling a Dosatron. D25F Troubleshooting - Part 3 Step 10: Next, remove the four screws in the center of the piston shell to release the actuator assembly.
- Page 14 800-523-8499 www.dosatronusa.com Proper protection, such as gloves, eye wear, and aprons, are recommended when disassembling a Dosatron. D25F Troubleshooting - Part 3 Step 13: Then, position the actuator assembly in the shell as shown and hold firmly. Step 14: Now re-install the four screws and hand tighten them in a star pattern.
- Page 15 800-523-8499 www.dosatronusa.com Proper protection, such as gloves, eye wear, and aprons, are recommended when disassembling a Dosatron. D25F Troubleshooting - Part 3 Step 16: If there is no movement, reinstall the valve support by sliding it onto the inlet valve.
- Page 16 800-523-8499 www.dosatronusa.com Proper protection, such as gloves, eye wear, and aprons, are recommended when disassembling a Dosatron. D25F Troubleshooting - Part 3 Step 19: Insert the piston back into the blue body. Step 20: Hand tighten the lid. Your Medicator should now be clicking and drawing concentrate.
