Proper protection, such as gloves, eye wear, and aprons, are recommended when disassembling a Dosatron.
Before we start make sure the medicator is clicking. If not, be sure to watch the
D25F Troubleshooting video.
800-523-8499
www.dosatronusa.com

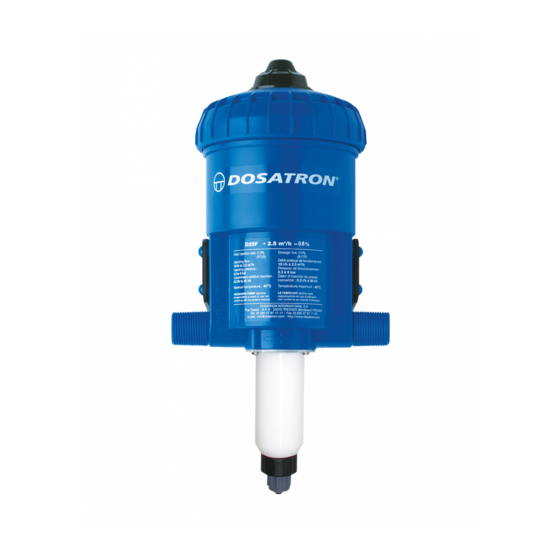

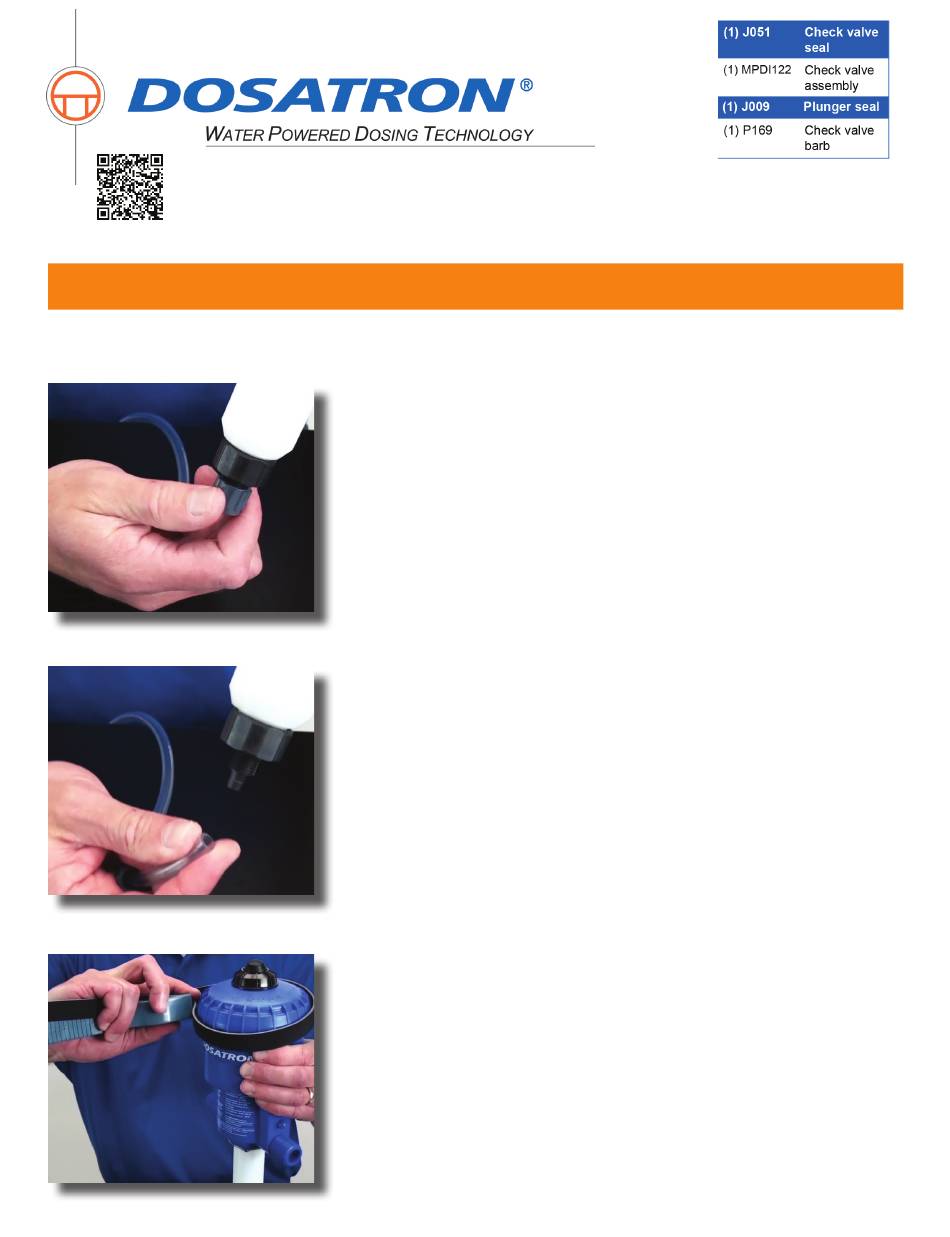

D25F Service
NOTE: To service your D25F Medicator you will need the
plunger and check valve seals, check valve assembly and a strap
wrench.
Step 1: To begin, unscrew the suction hose nut.

Step 2: Remove suction hose.

Step 3: Then, use the strap wrench (Part #: TOOL01) to loosen
the lid.
Page 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the D25F and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for dosatron D25F

Summary of Contents for dosatron D25F

  • Page 1 D25F - Service video. www.dosatronusa.com Proper protection, such as gloves, eye wear, and aprons, are recommended when disassembling a Dosatron. D25F Service Before we start make sure the medicator is clicking. If not, be sure to watch the D25F Troubleshooting video.
  • Page 2 800-523-8499 www.dosatronusa.com Proper protection, such as gloves, eye wear, and aprons, are recommended when disassembling a Dosatron. D25F Service Step 4: Unscrew and remove it. Step 5: Grasp the white valve support and pull the piston straight up and out of the body. Set the body aside.
  • Page 3 800-523-8499 www.dosatronusa.com Proper protection, such as gloves, eye wear, and aprons, are recommended when disassembling a Dosatron. D25F Service Step 7: Install the new seal into the groove on the plunger. Step 8: While you have the piston out, do a visual inspection on the white valve support on top.
  • Page 4 800-523-8499 www.dosatronusa.com Proper protection, such as gloves, eye wear, and aprons, are recommended when disassembling a Dosatron. D25F Service Step 10: Carefully insert the piston into the body and press down until it stops. Step 11: Re-install the lid hand tight.
  • Page 5 800-523-8499 www.dosatronusa.com Proper protection, such as gloves, eye wear, and aprons, are recommended when disassembling a Dosatron. D25F Service Step 13: Remove the check valve seal (Part #: J051). Step 14: Then carefully pry the check valve assembly (Part #: MPDI122), down and out of the stem. A small flat blade screwdriver or pick will make it easier.
  • Page 6 800-523-8499 www.dosatronusa.com Proper protection, such as gloves, eye wear, and aprons, are recommended when disassembling a Dosatron. D25F Service Step 16: Place the new check valve seal with the groove facing upward into the new barb. Step 17: Thread it onto the white stem and hand tighten.
  • Page 7 800-523-8499 www.dosatronusa.com Proper protection, such as gloves, eye wear, and aprons, are recommended when disassembling a Dosatron. D25F Service Step 19: Now, thread the suction hose nut onto the hose. Step 20: Slide it onto the barb. Step 21: Hand tighten the nut.
