Related Manuals for involight LEDRX550
Summary of Contents for involight LEDRX550

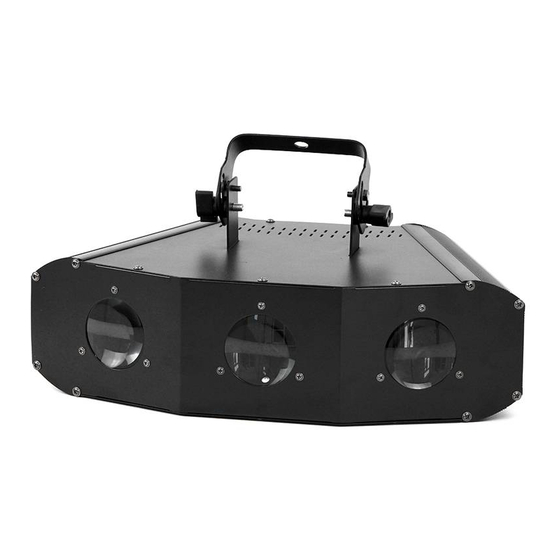

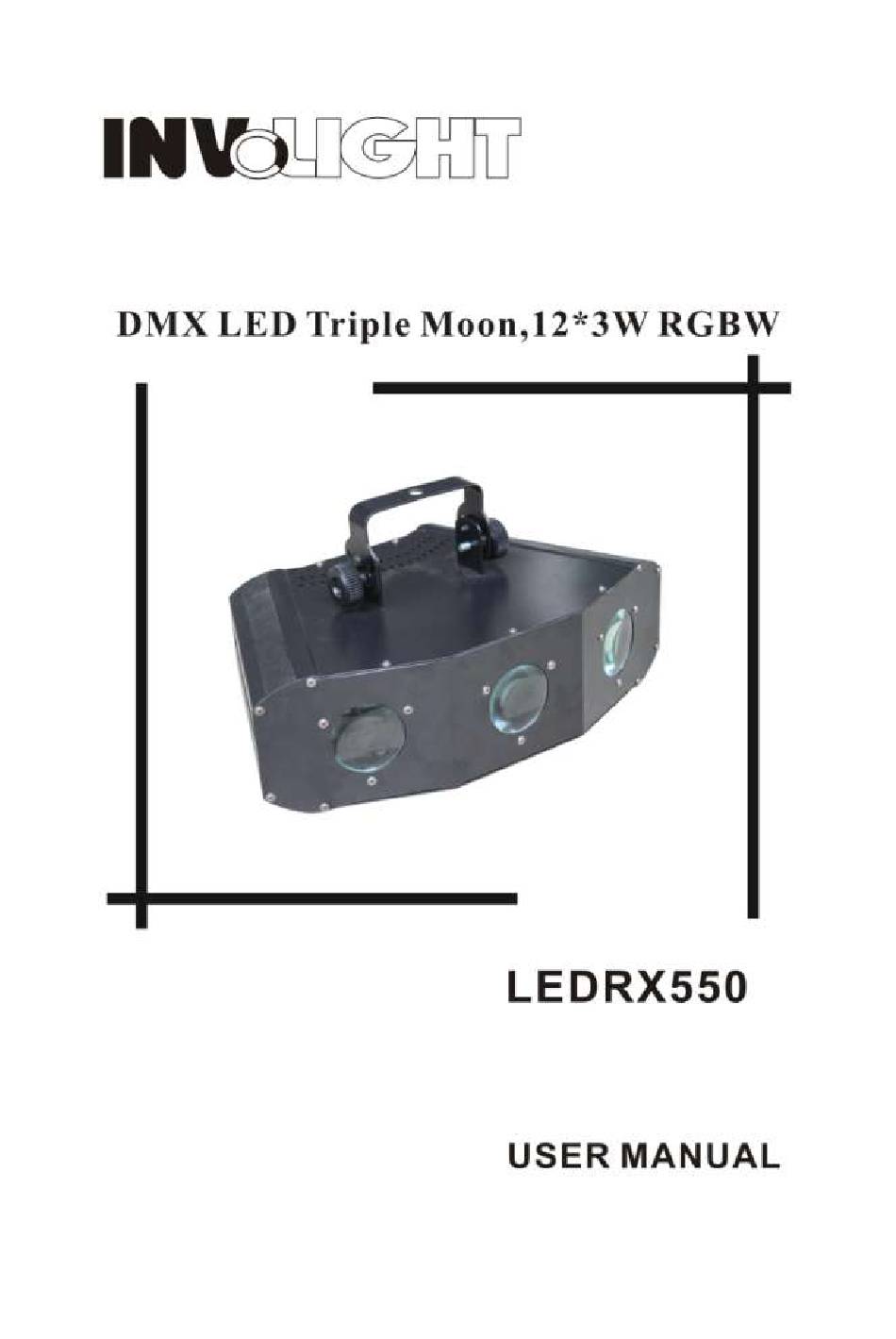

- Page 2 DMX LED Triple Moon, 12*3W RGBW Our DMX LED Triple Moon offers many wonderful effects which are very magic. It is designed for professional places, such as stages, disco, night clubs etc. Please read the manual before operation. A. SPECIFICATION Power input: 110V-240V, 50Hz/60Hz Wattage: 36W LEDs: 12*3W LEDs (R: 3, G: 3, B: 3 W: 3)
- Page 3 LEDs LEDs running LEDs flash DMX value Programs speed frequency NO USE NO USE 1--10 PROGRAM01 11--21 PROGRAM02 22--32 PROGRAM03 33--43 PROGRAM04 44--54 PROGRAM05 55--65 PROGRAM06 66--76 PROGRAM07 SPEED 0--255 77--87 PROGRAM08 FLASH 0--255 88--98 PROGRAM09 99--109 PROGRAM10 110--120 PROGRAM11 121--131 PROGRAM12 132--142...
- Page 4 1. Press the “MODE”, enter the mode of the LED inversion display menu “dISP”. 2. Press the “SETUP” to choose the LED standard display “dISP” or inversion display “dSIP” E. VERSION DISPLAY 1. Press the “MODE” to enter the menu of the version display. 2.
