Page 2

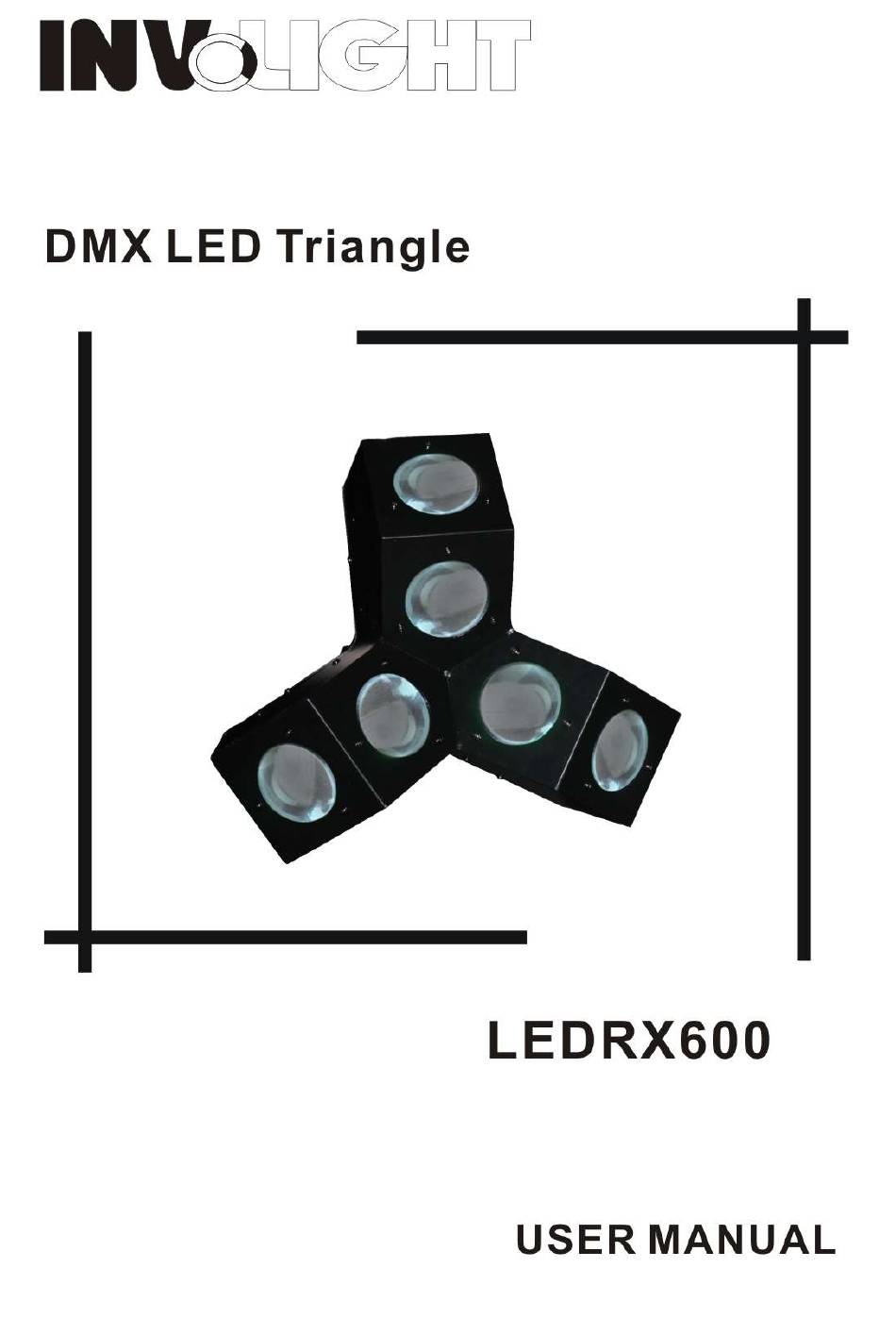

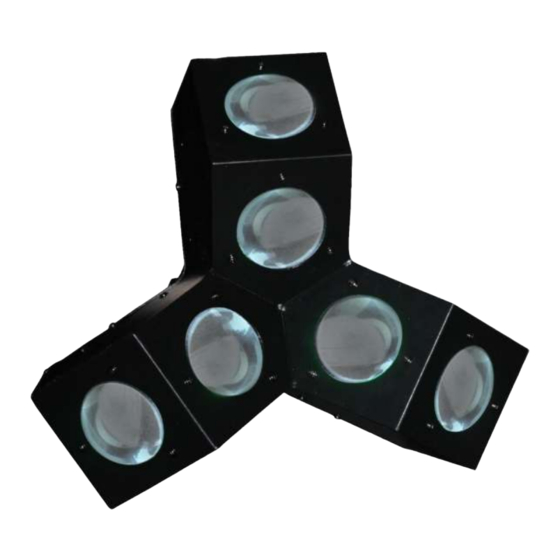

DMX LED Triangle Manual Our DMX LED Triangle light offers many possibilities to achieve very nice laser effects which you want. It is specially designed for the stages, disco, night clubs etc. Please read the manual before operation. A. SPECIFICATION Power input: AC 110V/240V, 60Hz/50Hz Power consumption: 45W LEDs: 18*3W (6R, 6G, 6B)
Page 3
2. DMX Mode 1) Press “MODE” button, enter DMX mode menu d××× ~ 2) Press “UP” or “DOWN” button to set up DMX address value 3) Press “SETUP” button, enter setup DMX mode 3 CH. DMX Mode: LEDs flash NO. DMX value LEDs Programs LEDs running speed frequency...
Page 4
Press “MODE” button, enter the slave mode SLAV. 5. Sound Active Mode 1) Press “MODE” button, enter sound active mode SoUn. 2) Press “SETUP” mode, enter setup sound active sensitivity menu So××. ~ 3) Press “UP” or “DOWN” button to set up the value of sound active sensitivity value C.
