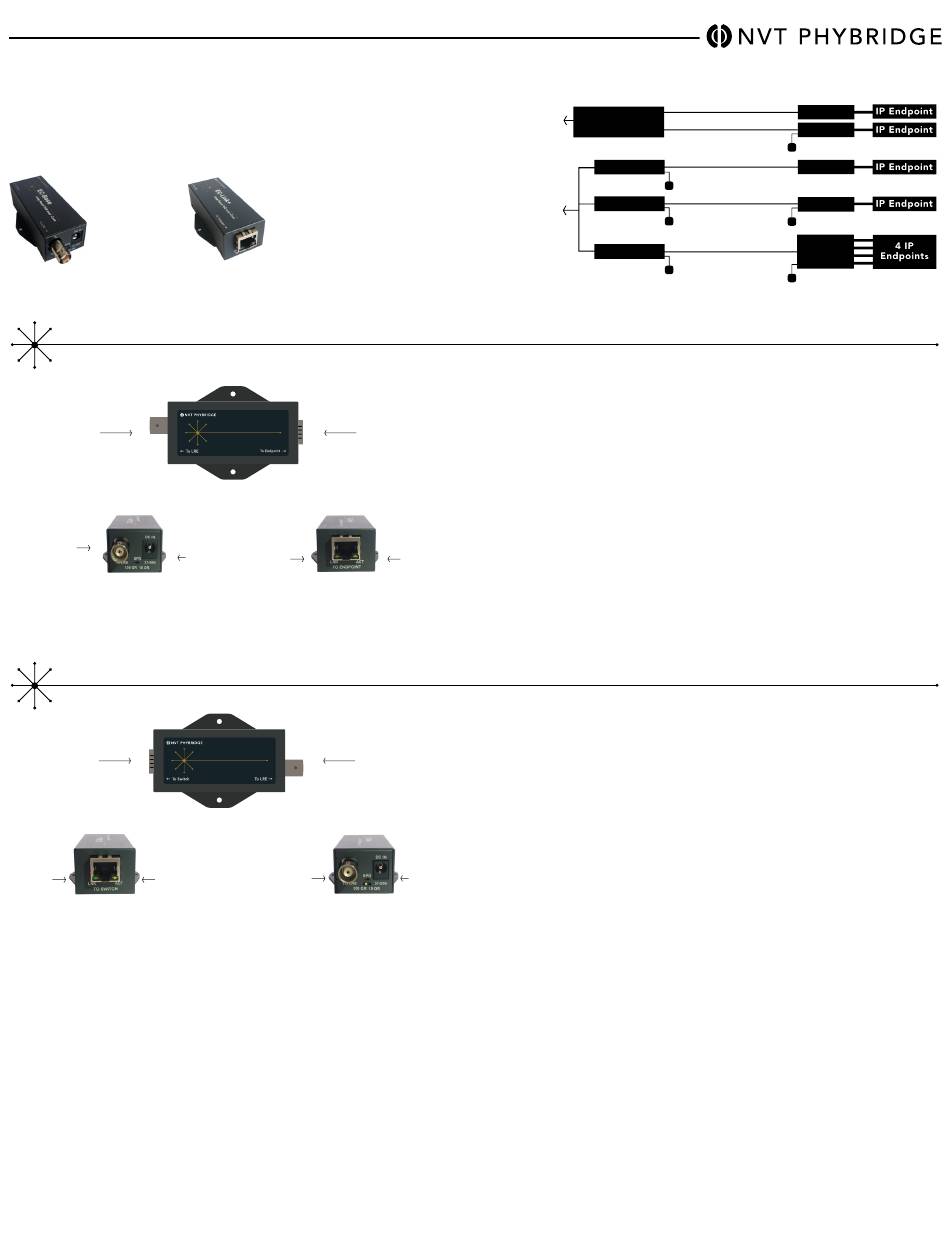

NVT Phybridge EC-Link+ Quick Install Manual

Q U IC K I N S TA L L G UI DE - E C A D A PT E R S
The EC-Base and EC-Link+ adapters enable extended Ethernet and PoE reach
beyond traditional distances using Coax infrastucture. The EC-Link
connected to the EC-Base unit via Coax can deliver 10/100Mbps (symmetrical, full
duplex) and PoE++ (up to 50W) with up to 4,000ft (1,219m) reach. The EC offering
is designed specifically to enable easy deployment over Coax for reaches beyond
that of standard Ethernet eliminating the costs and disruption associated with IDF
closet requirements.
E C-Bas e EC - Lin k +
NOTE: Please see page 2 for important safety instructions
E C -L IN K+
To L RE
To L RE
L in k / Speed
G reen:
1 0 0 Mb ps
O ra nge:
37 -55V D C I n
1 0 Mb ps
E C -B a s e
To Sw itc h
To S witc h
Li n k Ac t iv it y
888.901.3633 | +44 (0) 208 977 6614 | www.nvtphybridge.com

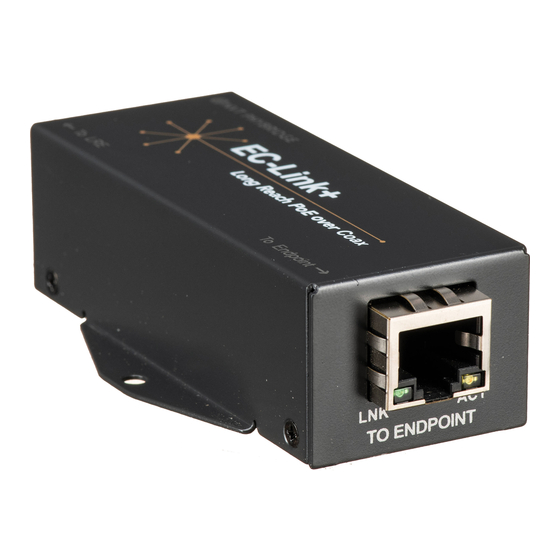

EC-Link +
To Endpoint
Long Reach PoE over Coax
To E ndp oint
Link
EC-Base
To LRE
Long Reach PoE over Coax
To LRE
To g g le swit ch al low s
opt ion bet ween
10 0Mbp s ( Green) or
1 0M bps (Or ange)
+ , when
10/100Mbps (symmetrical, full duplex) and PoE++ (up to 50W) with up to 4,000ft (1,219m) reach
To Application
EC10 10-Port Switch
To Switch
Instal lati on D etail s
1. Remove the EC-Link+ from its packaging.
2. Remove all legacy equipment from the Coax cable infrastructure.
NOTE: In order to avoid damage to endpoints, it is important that non-IP devices are
not connected when you connect the EC-Link+.
3. Connect the Network Infrastructure cable from the CLEER24, EC10 or
EC-Base to the EC-Link+ (LRE side).
4. Using CAT5 or higher category cable, connect the endpoint to EC-Link+
(Endpoint side).
NOTE: EC-Link+ can be used with the CLEER24, EC10 or EC-Base
P roduct Det ail s
Paired with CLEER24, EC10, or EC-Base
•
Act ivit y Up to 50W PoE with EC-Base or locally powered
•
Up to 30W PoE with CLEER24 or EC10
•
Instal lati on D etail s
1. Remove the EC-Base from its packaging.
2. Remove all legacy equipment from the Coax cable infrastructure.
NOTE: In order to avoid damage to endpoints, it is important that non-IP devices are
not connected when you connect the EC-Base.
3. Connect EC-Base (Switch side) to downlink port on switch.
4. Connect the Network Infrastructure cable from the EC-Base (LRE side) to
EC-Link+ or EC4 (LRE side).
5. Using CAT5 or higher category cable, connect the endpoint to the EC-Link+
or EC4 (Endpoint side).
P roduct Det ail s
3 7 - 5 5 VDC I n
Paired with EC-Link+, EC-Link, or EC4
•
Up to 50W PoE
•
EC Adap ter A ppl icati ons
CLEER 24-Port or
PoE over Coax
EC-Base
Local Power Option
PoE over Coax
EC-Base
Local Power Option
EC-Base
Local Power Option
( NV-EC LK-PLS )
NOTE: EC-Base can be used with EC-Link+ or EC4
( NV-EC LK-BS E)
Local power option
•
IEEE compliant
•
Copyright 2018 NVT Phybridge | 445-0010-A | Page 1
EC-Link
EC-Link +
Local Power Option
EC-Link
EC-Link +
Local Power Option
EC4
Local Power Option
Local power option
•
IEEE compliant
•
PoE on 4 pairs
•
