www.gillathletics.com
800-637-3090

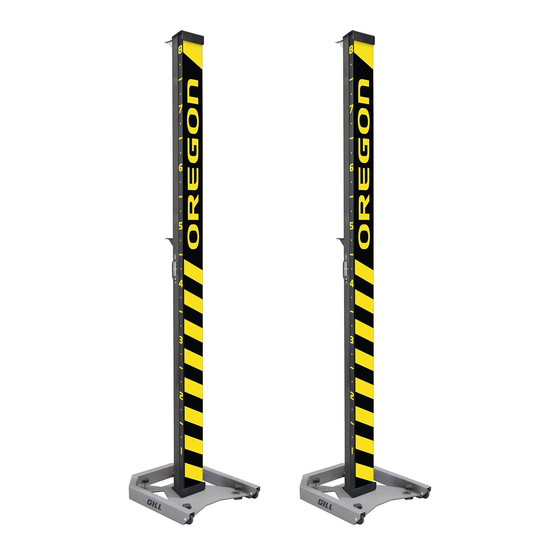

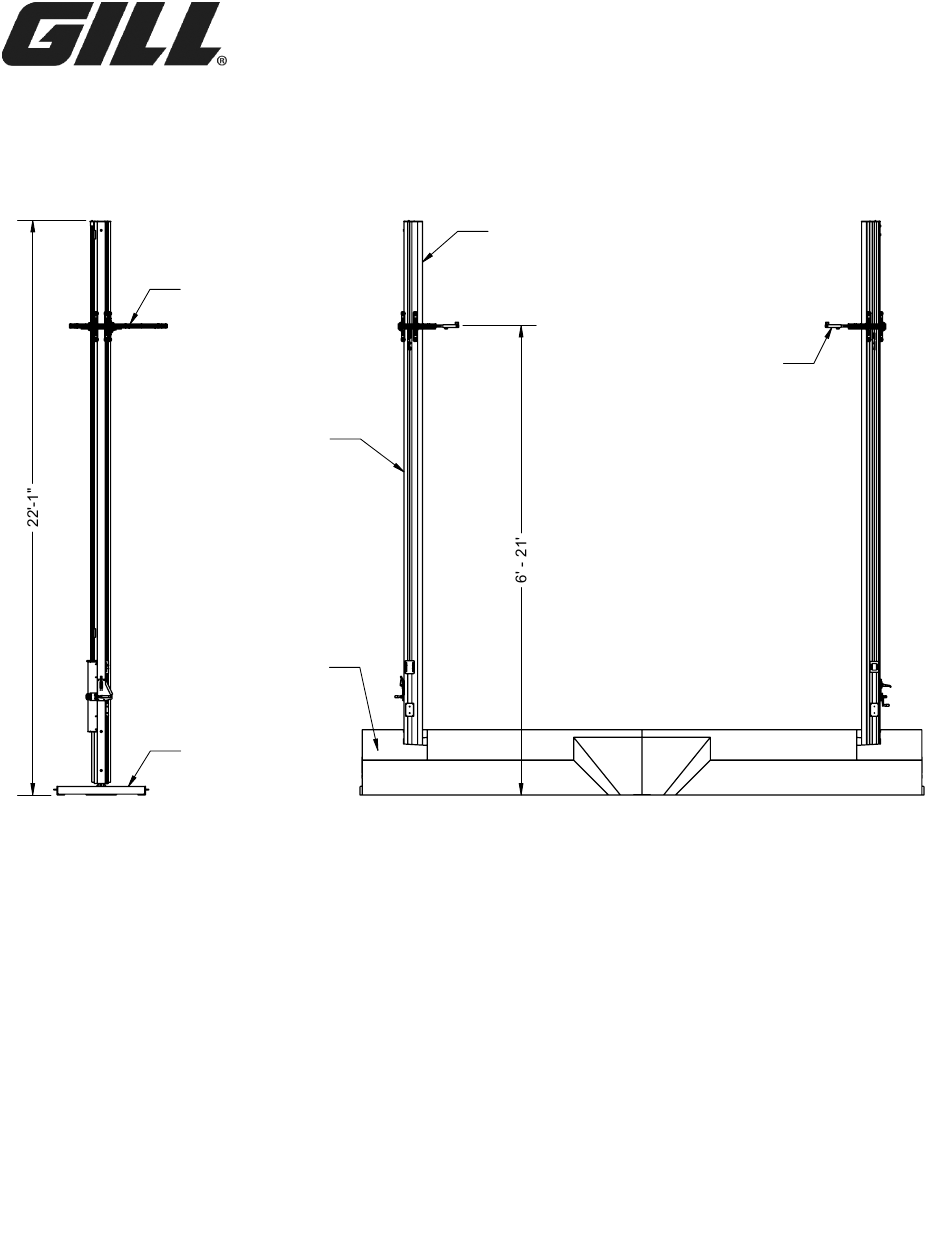

Traveling Offset Carriage
Base Protector Pads
Steel Base
- Concrete anchors
- Leveling bolts
- Hinge System
- Dual hand crank system simplifies and speeds up height transitions
- Customize exclusive 2" safety pad with choice of color and graphics
- 2" safety pad increases safety of athletes and reduces vaulting pole damage
- Simple brake mechanism with ON / OFF positions
- Internal measuring tape displays Metric and English units
- Quick hand crank crossbar depth adjustment from 0cm to 80cm
- Exclusive customizable offset width between pins from 4.30m-4.37m
- Steel base for stability during use and Easy-Port hinge technology for quicker location movement
- Strong aluminum profile increases aesthetics, functionality, and customization
- Height range from 6'-6"' to 21'
Copyright 2016 by Gill Athletics.
All rights reserved.
Aluminum Upright
sold seperately
Item #740111CXX
740110CXXYYSP - AGX M4 POLE VAULT STANDARDS
Graphic Pad
- Safety
- Spectator Involvement
- Custom Artwork
SPEC SHEET
Adjustable Offset
INST740110CXXYYSP
10/8/2018
Page 1 of 17
Advertisement
Related Manuals for Gill AGX M4 POLE VAULT
Summary of Contents for Gill AGX M4 POLE VAULT
- Page 1 740110CXXYYSP - AGX M4 POLE VAULT STANDARDS SPEC SHEET www.gillathletics.com 800-637-3090 Graphic Pad - Safety - Spectator Involvement - Custom Artwork Traveling Offset Carriage Adjustable Offset Aluminum Upright Base Protector Pads sold seperately Item #740111CXX Steel Base - Concrete anchors...
-
Page 2: Important Safety Instructions
740110CXXYYSP - AGX M4 POLE VAULT STANDARDS INSTRUCTIONS www.gillathletics.com 800-637-3090 Important Safety Instructions It is the owner’s/manager’s responsibility to insure that all users of this equipment become familiar with the contents of this manual, to instruct users on the proper operation of the equipment, and to warn them of the potential hazards. -
Page 3: Shipping List
740110CXXYYSP - AGX M4 POLE VAULT STANDARDS INSTRUCTIONS www.gillathletics.com 800-637-3090 SHIPPING LIST Right Upright Left Upright Right Offset Carriage Left Offset Carriage Leveling Plate Base Base HDWE 10/8/2018 INST740110CXXYYSP Copyright 2016 by Gill Athletics. All rights reserved. Page 3 of 17... - Page 4 740110CXXYYSP - AGX M4 POLE VAULT STANDARDS INSTRUCTIONS www.gillathletics.com 800-637-3090 ASSEMBLING THE BASES Part # Description Qty. 74011010 Base Weldment HDWE01293 5/8"-11 X 3" FLAT-HEAD SOCKET CAP SCREW; ZINC PLATED HDWE05023 5/8" FLAT WASHER; SS HDWE04010 5/8" SPLIT RING LOCK WASHER; SS HDWE03102 5/8"-11 THIN HEX NUT;...
- Page 5 740110CXXYYSP - AGX M4 POLE VAULT STANDARDS INSTRUCTIONS www.gillathletics.com 800-637-3090 ASSEMBLING THE BASES Part # Description Qty. Spin a nut down onto each post. Place a washer 74011010 Base Weldment on top of each nut. 74011012 Leveling Plate HDWE05023 5/8" FLAT WASHER; SS...
- Page 6 740110CXXYYSP - AGX M4 POLE VAULT STANDARDS INSTRUCTIONS www.gillathletics.com 800-637-3090 POSITIONING & ANCHORING THE BASES Pole Vault Standards MUST 2 " 2 " be anchored for safety. 4 " 60cm 23 5 " 4 " PV box Tools Required: (1) Concrete Drill (1) 7/8"...
- Page 7 740110CXXYYSP - AGX M4 POLE VAULT STANDARDS INSTRUCTIONS www.gillathletics.com 800-637-3090 LEVELING THE HINGE PLATE Loosen the nuts on top of the hinge plate. Use the nuts below the hinge plate to level it. Tighten the top nuts. Hinge Plate Loosen these nuts before leveling the hinge plate.
- Page 8 740110CXXYYSP - AGX M4 POLE VAULT STANDARDS INSTRUCTIONS www.gillathletics.com 800-637-3090 ATTACHING THE UPRIGHTS TO THE BASES It is important to make sure that the correct upright is on the correct side of the landing system. With the pad facing the center, the Height read out window should face the runway.
- Page 9 740110CXXYYSP - AGX M4 POLE VAULT STANDARDS INSTRUCTIONS www.gillathletics.com 800-637-3090 ATTACHING THE UPRIGHTS TO THE BASES Secure the hinge pins together with the provided lanyards and karabiner. This will help prevent unintentional removal of the hinge pins. Part # Description Qty.
- Page 10 740110CXXYYSP - AGX M4 POLE VAULT STANDARDS INSTRUCTIONS www.gillathletics.com 800-637-3090 INSTALLING THE OFFSET CARRIAGES 2x Adults required. It is important to make sure that the correct carriage Rotate the hex rod so that the Depth read out is on the correct upright.
- Page 11 740110CXXYYSP - AGX M4 POLE VAULT STANDARDS INSTRUCTIONS www.gillathletics.com 800-637-3090 INSTALLING THE OFFSET CARRIAGES Locate the lifter plate behind the brushes. It is at the top of the tape measure. Secure the gusset to the bottom of the carriage and the lifter plate using the provided ball-end allen wrench.
- Page 12 740110CXXYYSP - AGX M4 POLE VAULT STANDARDS INSTRUCTIONS www.gillathletics.com 800-637-3090 INSTALLING THE OFFSET CARRIAGES Install the offset extension onto the offset arm and secure it with a clamp knob. The pin should point towards the rear of the landing system.
- Page 13 740110CXXYYSP - AGX M4 POLE VAULT STANDARDS INSTRUCTIONS www.gillathletics.com 800-637-3090 INSTALLING THE CRANK HANDLES Install the crank handle with post on the height adjustment mechanism. Install the crank handle with ball knob on the depth adjustment mechanism. The handles are held in place with pull pins.
- Page 14 740110CXXYYSP - AGX M4 POLE VAULT STANDARDS INSTRUCTIONS www.gillathletics.com 800-637-3090 RAISING THE UPRIGHT 4x Adults required. Make sure to have all tools and hardware close by before starting. Make sure there is nothing on the leveling plate. Make sure the hinge pins are in place.
- Page 15 740110CXXYYSP - AGX M4 POLE VAULT STANDARDS INSTRUCTIONS www.gillathletics.com 800-637-3090 RAISING THE UPRIGHT Secure the stem plate to the leveling plate with provided hardware. Part # Description Qty. HDWE01294 5/8"-11 X 1-3/4" HEX HEAD CAP SCREW; GR8; ARMOR COAT HDWE05023 5/8"...
-
Page 16: Fine Tuning
740110CXXYYSP - AGX M4 POLE VAULT STANDARDS INSTRUCTIONS www.gillathletics.com 800-637-3090 FINE TUNING Check to make sure the upright is plumb. If need be, carefully adjust the nuts on the four posts stick up from the base. Only adjust two nuts at a time and make small adjustments. - Page 17 740110CXXYYSP - AGX M4 POLE VAULT STANDARDS INSTRUCTIONS www.gillathletics.com 800-637-3090 SETTING CROSS BAR HEIGHT Set the adjustable window to match the heigth of the cross bar. If the height of the cross bar is outside the range of the window, the tape measure can also be adjusted where it attaches to the carriage.
