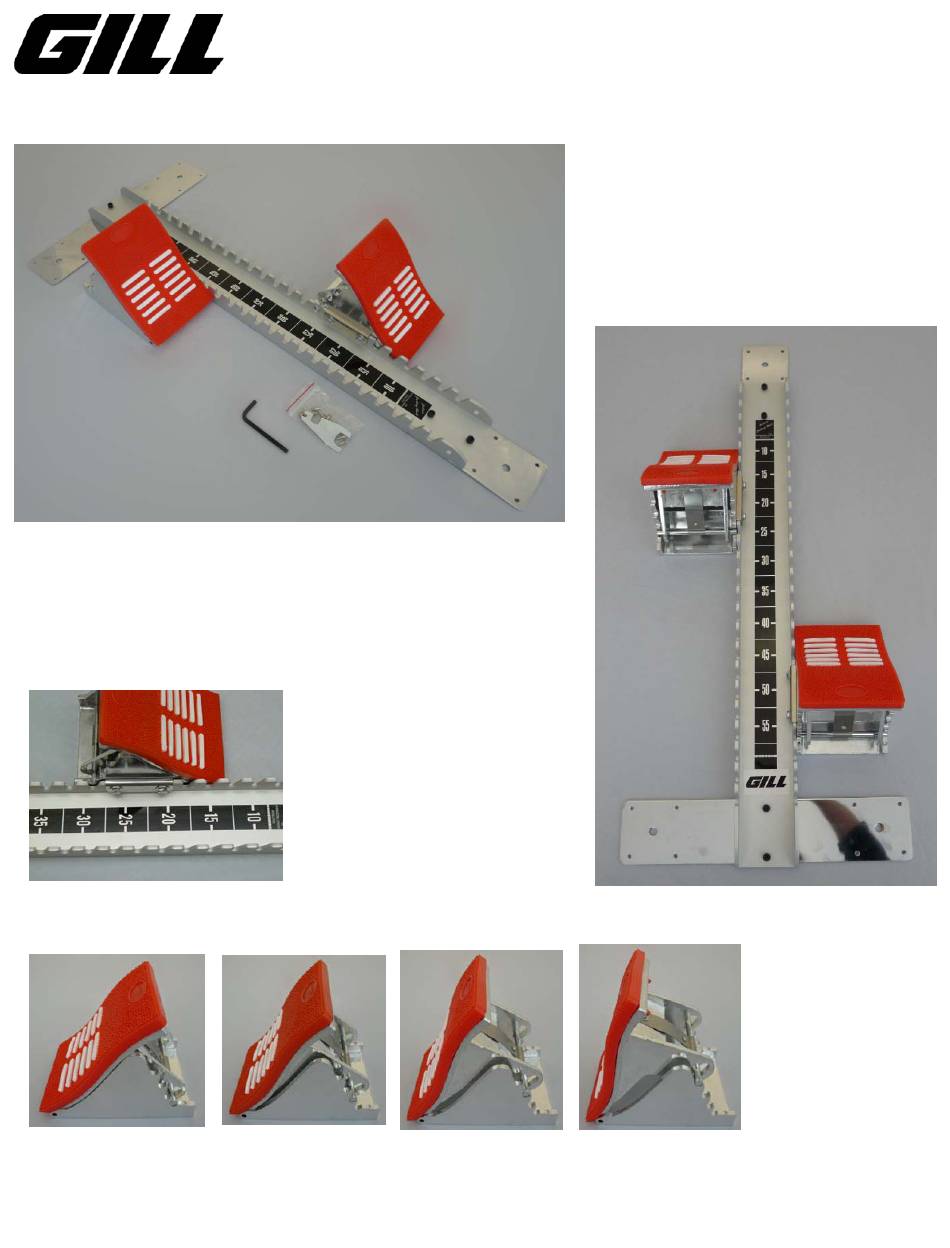

Pedals adjust easily
along the length of the
rail.
Ruled decal makes
repeatable pedal set-ups
quick and easy.
55°
Copyright © 2016 by Gill Athletics. All rights reserved.

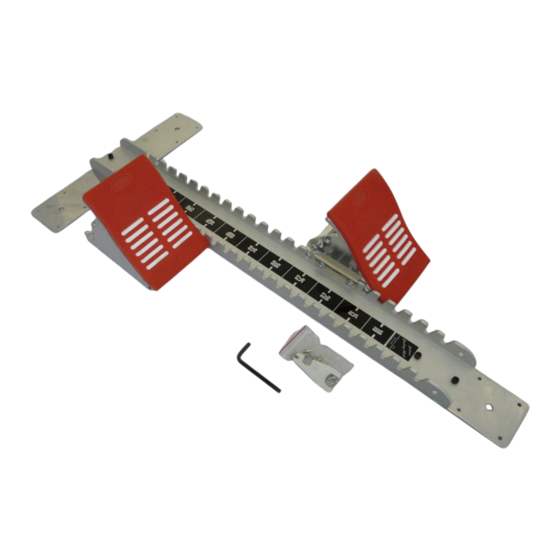

410 – COLLEGIATE STARTING BLOCK
Designed for high level competition.
Constructed of aircraft quality aluminum.
Pedals feature four angle adjustments.
Includes ½" needle spikes for synthetic tracks.
65°
75°
CUSTOMER INSTRUCTIONS
Pedals feature four
angle adjustments.
GILL ATH
03-30-16
410_inst1
Advertisement
Related Manuals for Gill 410
Summary of Contents for Gill 410
- Page 1 Pedals adjust easily along the length of the rail. Ruled decal makes repeatable pedal set-ups quick and easy. Pedals feature four angle adjustments. 45° 55° 65° 75° GILL ATH 03-30-16 410_inst1 Copyright © 2016 by Gill Athletics. All rights reserved.
- Page 2 “teeth” of the rail. The pedals should face the front of the rail, towards the “10” marking. Adjust the angle of the pedals as needed. GILL ATH 03-30-16 410_inst2 Copyright © 2016 by Gill Athletics. All rights reserved.
- Page 3 (single screw) Rear Stake Plate P41012 Bracket Bushing (single) P41006 Pedal Hinge Set Screw M6 X 25 (single screw) P41213 Adjustment Spring and Rod P41007 Pedal Bracket GILL ATH 03-30-16 410_inst3 Copyright © 2016 by Gill Athletics. All rights reserved.
