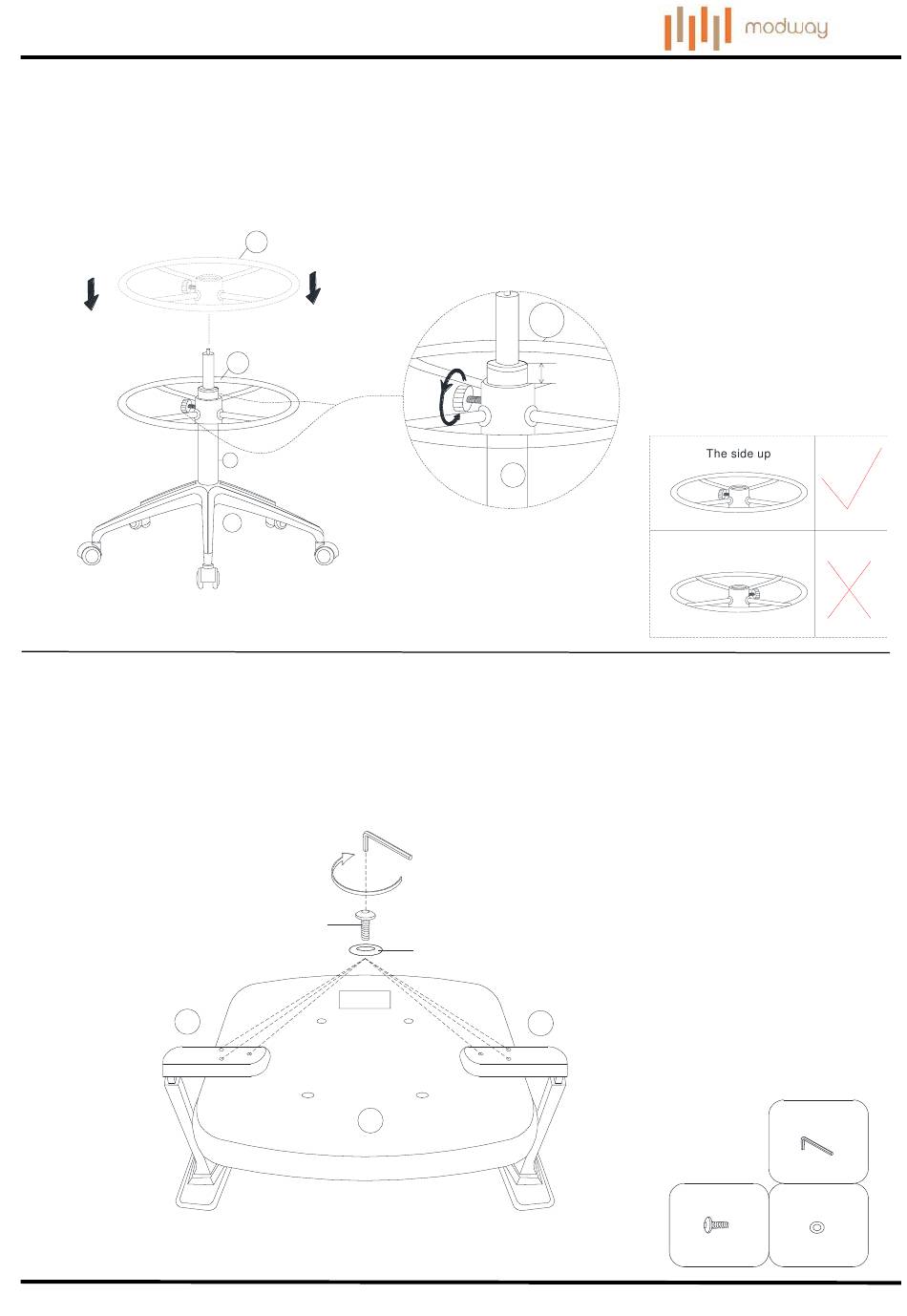

STEP 3:
Insert the Foot Ring (11) into the assembled Cylinder Column (2) at your desired height. But at least
from the top of the outer circle of
Please follow the direction of the arrow as shown to tighten the knob by hand on the Foot Ring (11) until the Foot
Ring (11) is fixed.
STEP 4:
Attach Left Arm (6) and Right Arm (7) to the bottom of Seat (4) by using 6 pieces of Bolts (A) with 6 pieces of
Flat Washers (E) as shown.
Tighten Bolts (A) by using Allen Wrench (G) as shown.
